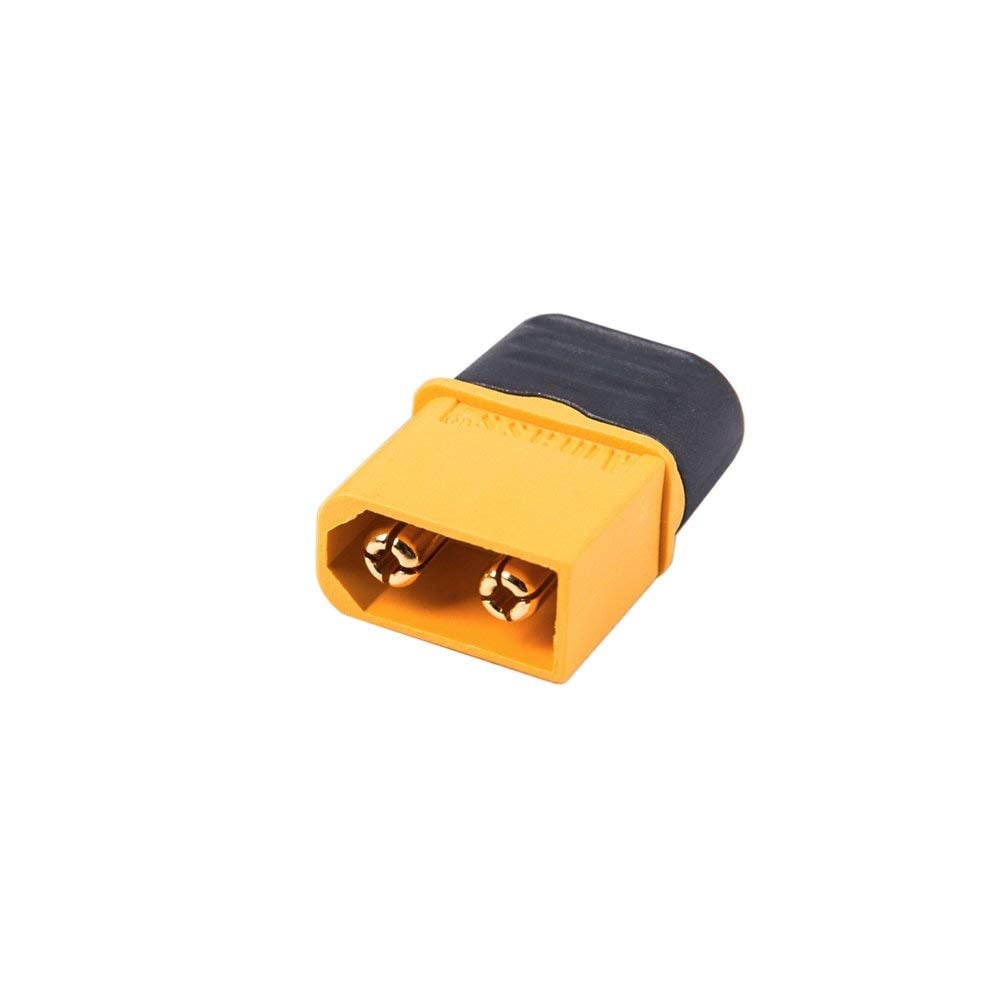

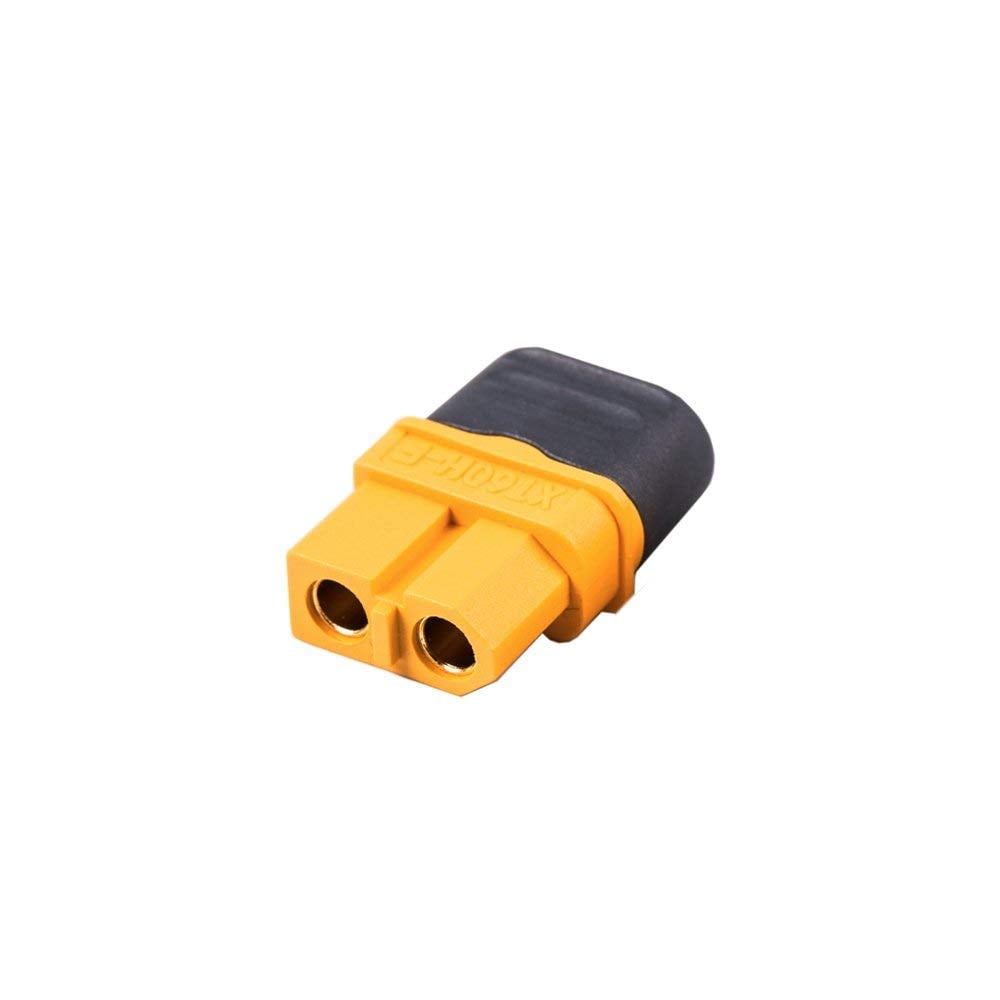

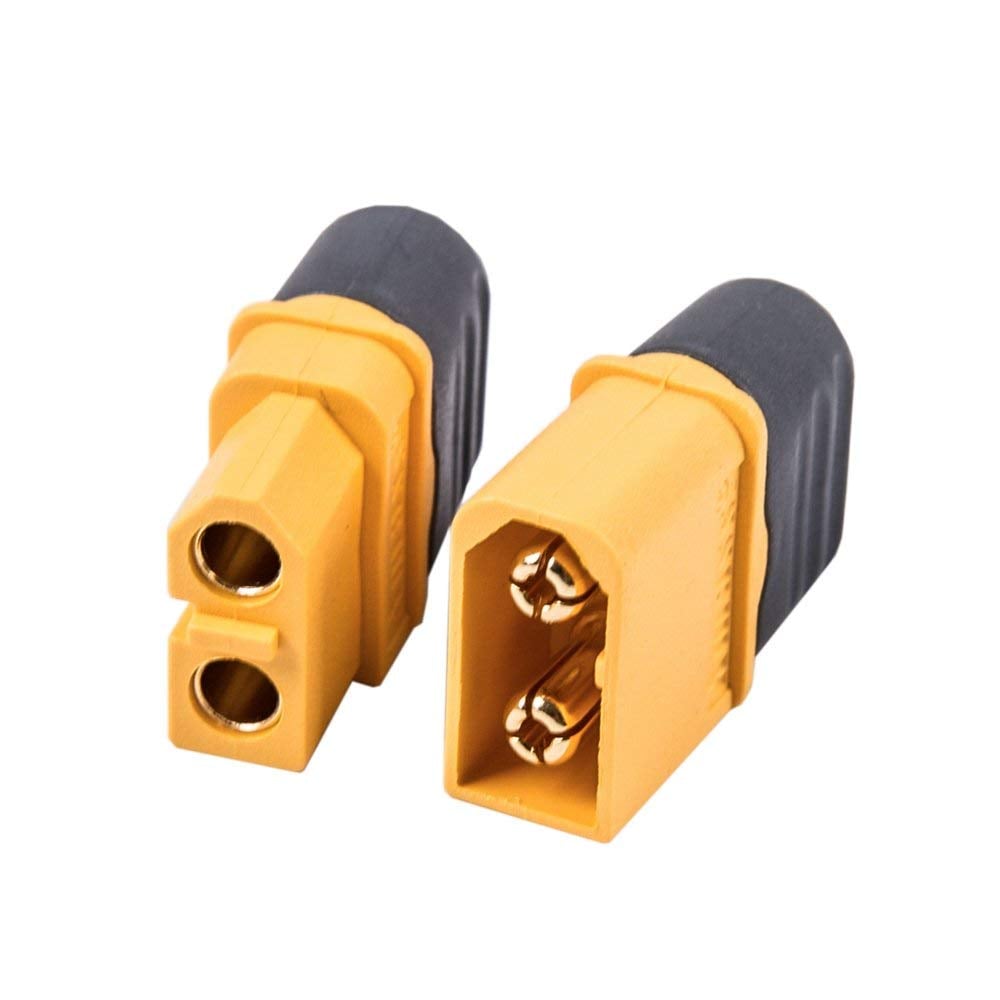

Amass XT60 Male-Female Connector pair with Housing-5Pair

19 People watching this product now!

SKU: rz2438962 Category: Battery Connector

Description

The best battery connectors on the market just got better with the development of the XT60H. This connector is made from high-temp nylon with gold-plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A.

The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide protection to the soldered points and make this connector a little fancy and that why H letter is added in XT60.

The XT60H is completely compatible with the original XT60 connectors so you can use them straight away.

IMPORTANT: “These are not cheap copied XT60H plugs. These original Nylon XT60H plugs, manufactured by AMASS, can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60H plugs

Features:

Genuine Amass XT60 Connector with protection housing, upgrade version, high quality
Provides Solid and Reliable Connection
Mechanical mounting for cable
Electrical mounting soldered
Spatial Orientation Straight
Excellent connector solution for RC Quadcopters, Drones, UAVs,
Airplanes and Jets, Cars and Trucks, as well as RC Boats.

Package Includes:

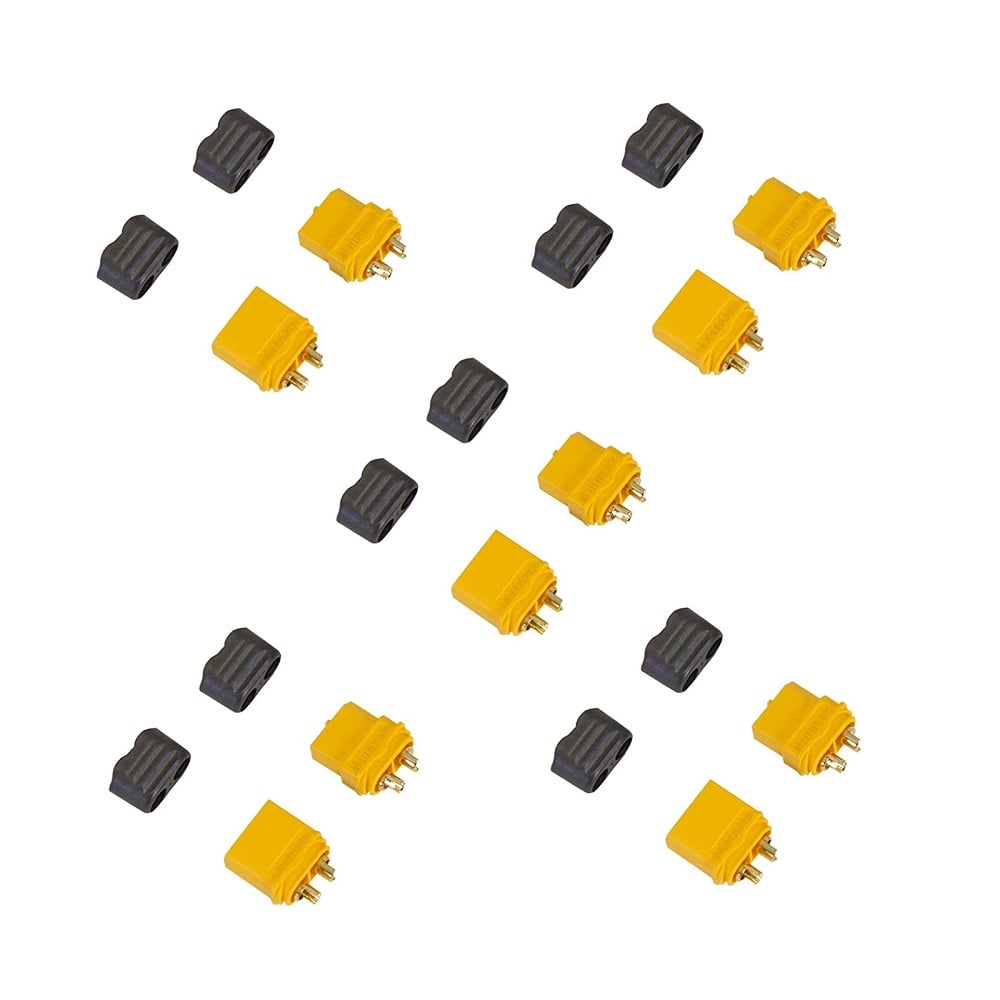

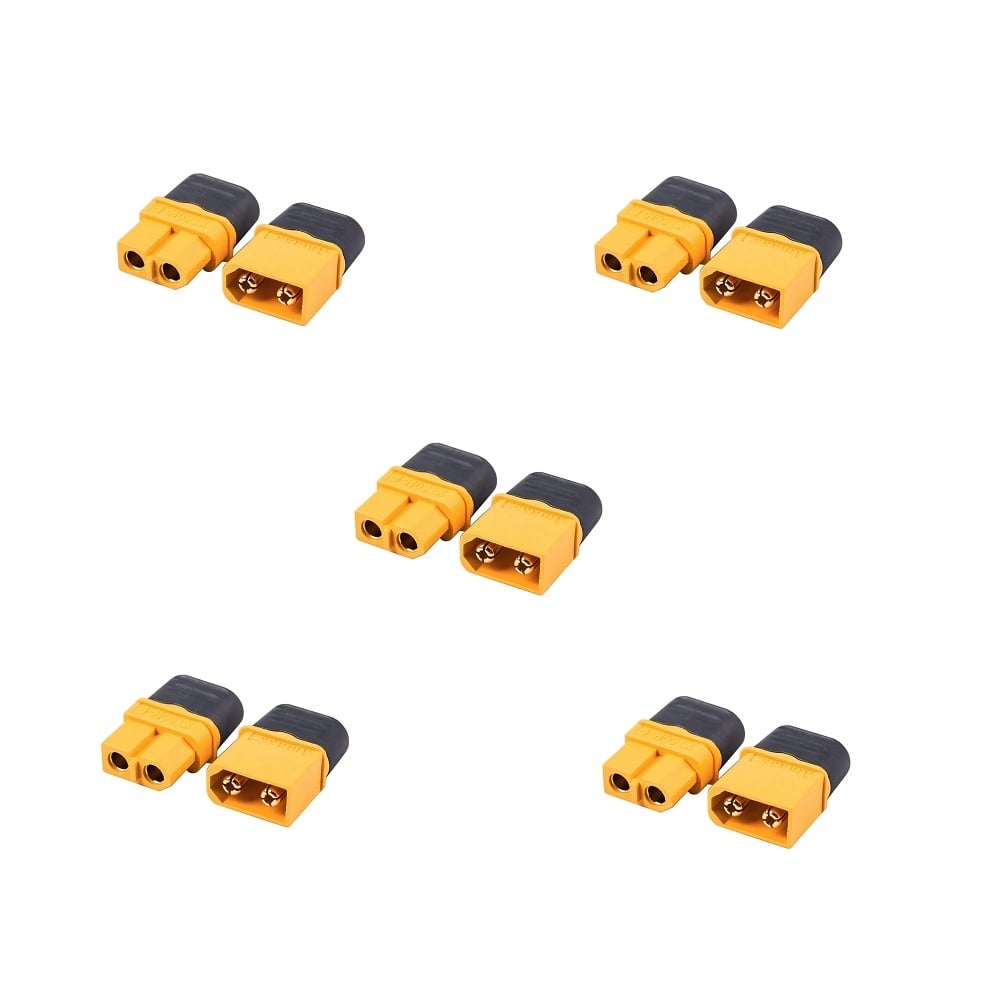

1 x Amass XT60 Male-Female Connector pair with Housing-5Pair

Additional information

Brand	Amass
Gender	Mail-Female Pair
Rated Operating Voltage (VDC)	500
Current Handling Capacity (A)	60
No. of Contact Points	2
Connector Type	XT60H
Contact Material	Brass
Contact Plating	Gold flash
Metal Connector Size (mm)	4.5
Color	Yellow-Gray
Weight (gm)	6 each
Operating Temperature Range (°C)	-20 to 120
Flammability Rating	UL94V-0
Allowed Wire Size (AWG)	14 ~ 12
