Product details

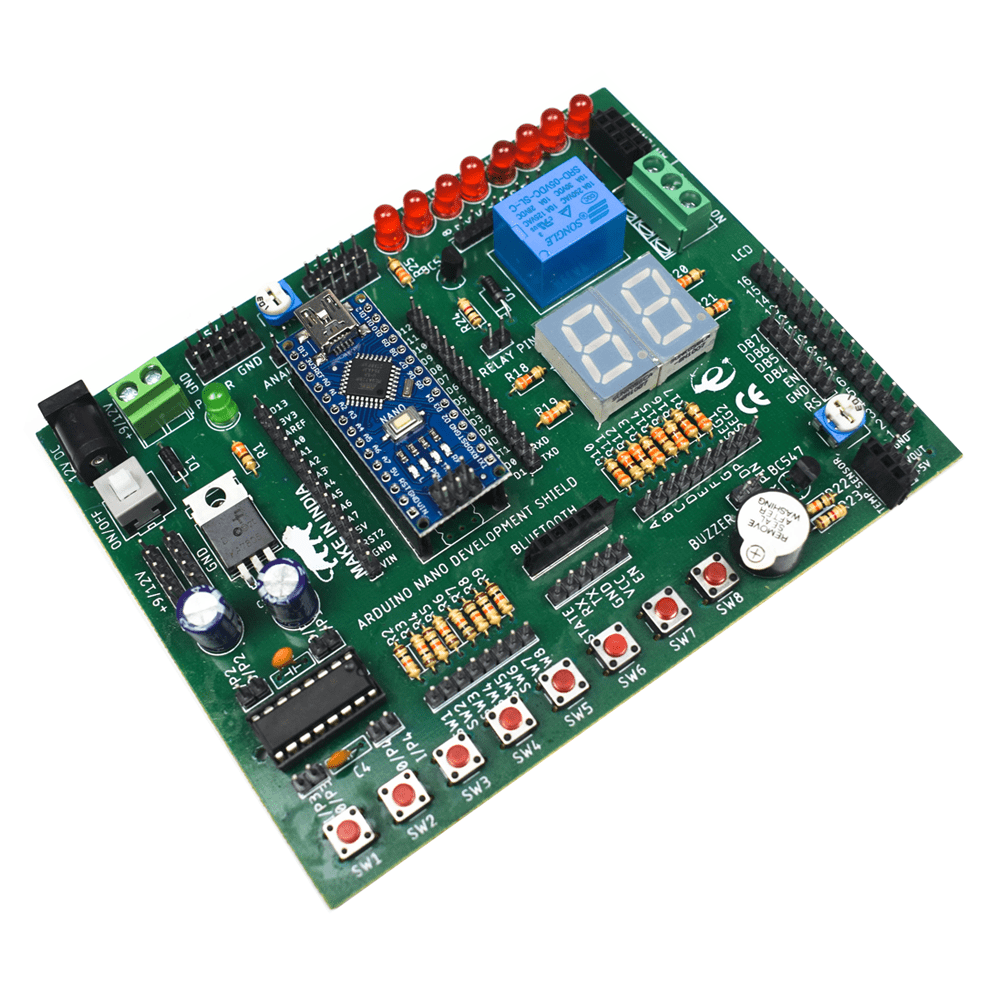

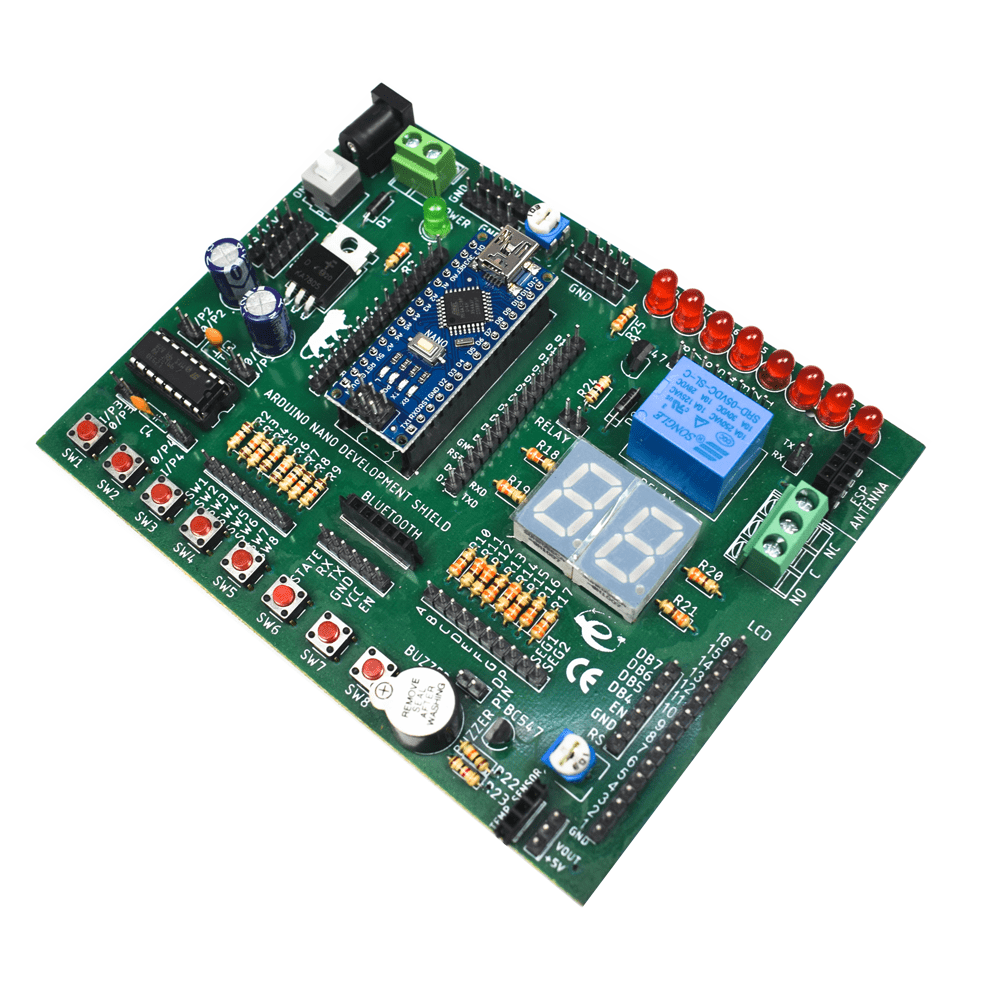

This is an Arduino Nano Development Shield Board With Arduino Nano. All Pins are Breakout Pins are available at Female bugs Connector, which can be used as the main board for developing applications. The most important feature of this board is that we can do as many practicals on a single board without a breadboard like IoT, sensors, gsm, GPS etc. Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality as the Arduino Due but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. It is one of the smallest and yet most exciting breadboard-friendly boards available on the market today. It’s become exceptionally popular with beginner programmers thanks to its excellent functionality and the sheer variation of potential applications. This Nano Shield board’s construction includes a relay, 2-seven-segment displays, a buzzer, an L293D motor driver, a Bluetooth insert port, an 8-input switch with output indication etc.
Features
- Compatible with Arduino NANO.
- All digital and analog pins break out.
- Compact size.
- It comes with Nano Board
Nano Features
- Automatic reset during program download
- Power OK blue LED
- Green (TX), red (RX), and orange (L) LED
- Auto-sensing/switching power input
- Small mini-B USB for programming and serial monitor
- ICSP header for direct program download
- Standard 0.1” spacing DIP (breadboard friendly)
- Manual reset switch
Project ideas
- Dc Motor Operates with L293D IC
- Output Relay Control
- Seven-Segment Display
- BCD Converter
- Timer Control
- Timer Relay Control
- On/Off Switch with LED Indication
- LED Dimmer
- Counter
- Timer Counter
- LED Fadness
- IR Transmitter & Receiver
- Bluetooth
- ESP Wireless
- Sensors
Package Included:
1 x NANO Development Board Shield
1 x NANO Board
Specifications
Product | Arduino Nano Development Board Shield |
Compatible Board | Arduino Nano |
Type | Development Board |
CPU Socket | DIP |
Output Voltage | +5V, +3.3V, +9V, +12V |
Input Voltage |
+9V/+12V |
Programmable Button | No |
Dimension (mm) | 130 x 101 x 18(mm) |
Make | Made in India |
Country of Origin | China |
