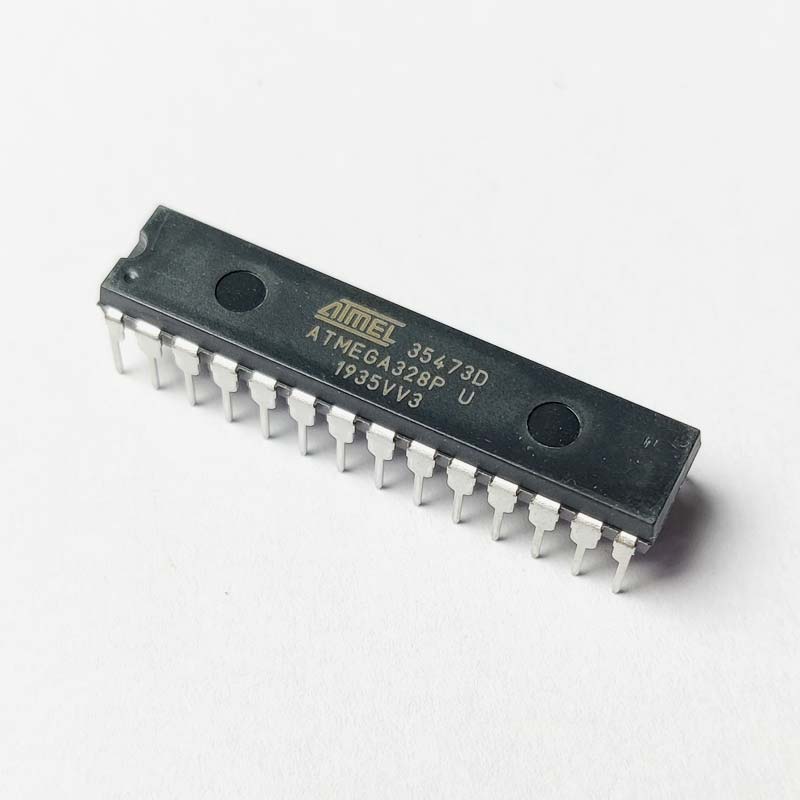

ATmega328P-PU Microcontroller

ATmega328P Microcontroller is the most widely used standalone Atmega IC for electronics projects. It can be connected to an Atmega328 board as a replacement for an Arduino. However, if you are planning to replace the Arduino chip then we can provide you Atmega328p with the Arduino bootloader.

This microcontroller does not come with the bootloader pre-installed.

It is a low power CMOS 8-bit micro controller based on the AVR enhanced RISC architecture. It has 32 KB ISP flash memory with read-while-write capabilities, 1 KB EEPROM, internal and external interrupt, 2 KB SRAM, 6 channel 10 Bit A/D converter, 23 General purpose IO lines, 32 general purpose working registers, 3 flexible timer/counter with compare modes, serial programmable USART, a byte oriented 2 wire serial interface, SPI serial port, programmable watchdog timer with internal oscillator and 5 software selectable power saving modes.

The Atmega328 offers 8-bit PWM, 10-bit 6 channel ADC, I2C, SPI, Digital I/O pins and UART, all in one in a single microcontroller unit.

Atmega328 also has 32 KB of flash memory for storing code (of which 0,5 KB is used for the bootloader); It has also 2 KB of SRAM and 1 KB of EEPROM.

Pin Description

Below image is the overview of the Atmega328 pin diagram.

ATmega328P Specifications and features:

• Operating Voltage: 1.8 – 5.5V
• Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
• Data retention: 20 years at 85°C/100 years at 25°C
• Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• 6-channel 10-bit ADC
• Programmable Serial USART
• Master/Slave SPI Serial Interface

Package:

It is a DIP28 package.

Example Projects Using Atmega328:

200+ Arduino based Projects and Source Code

Additional Resources:

Atmega328p datasheet

Package Contains

1x Atmega328 IC
