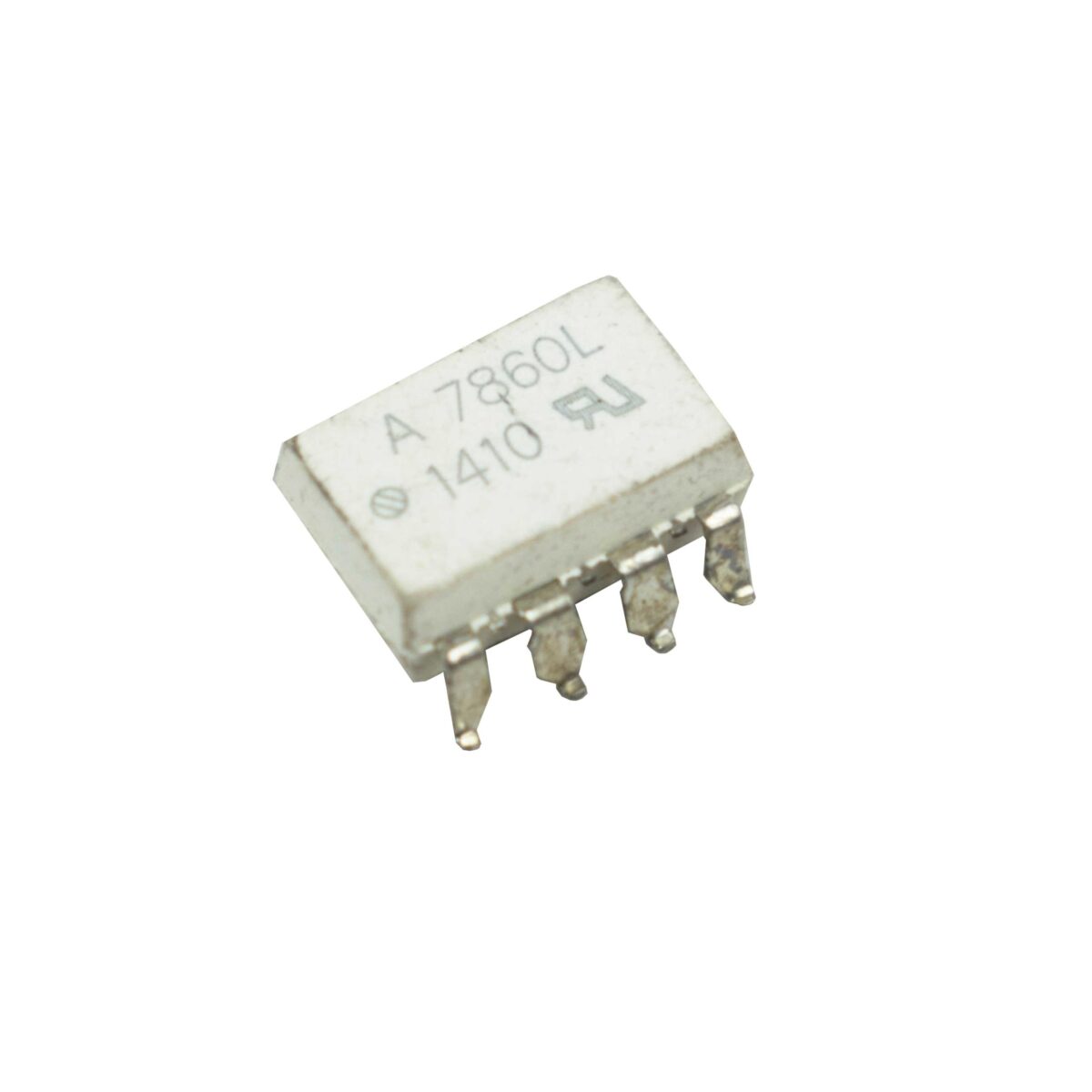

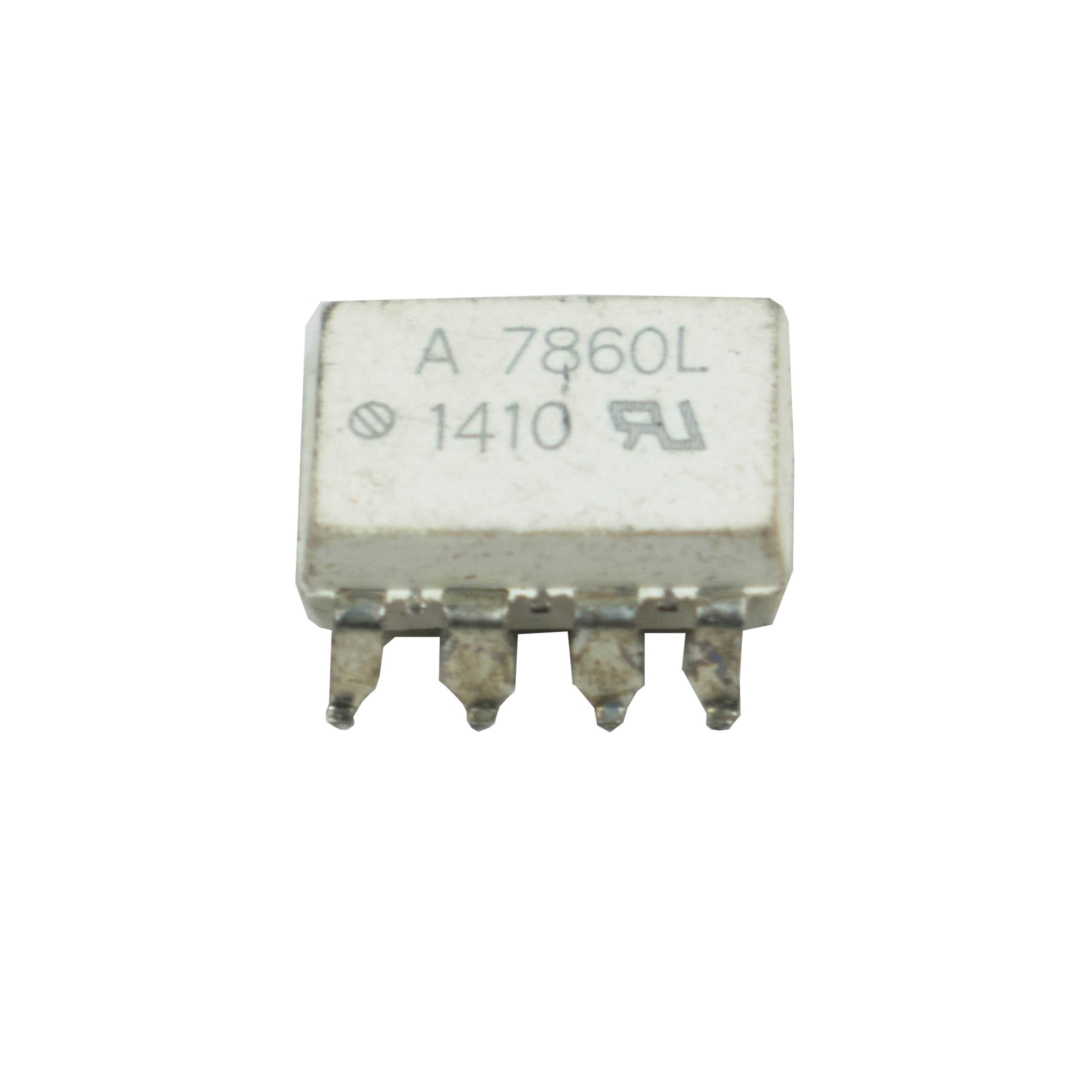

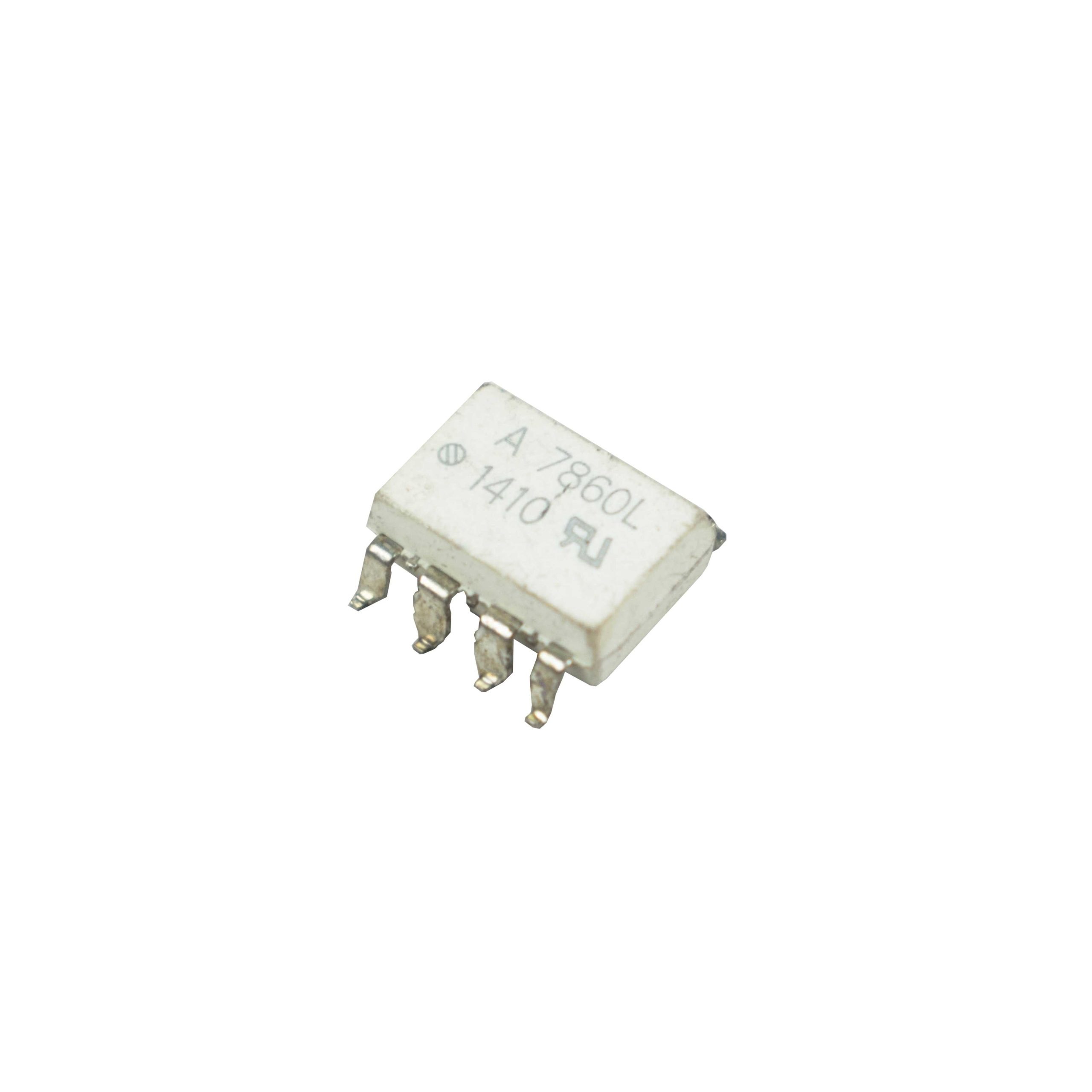

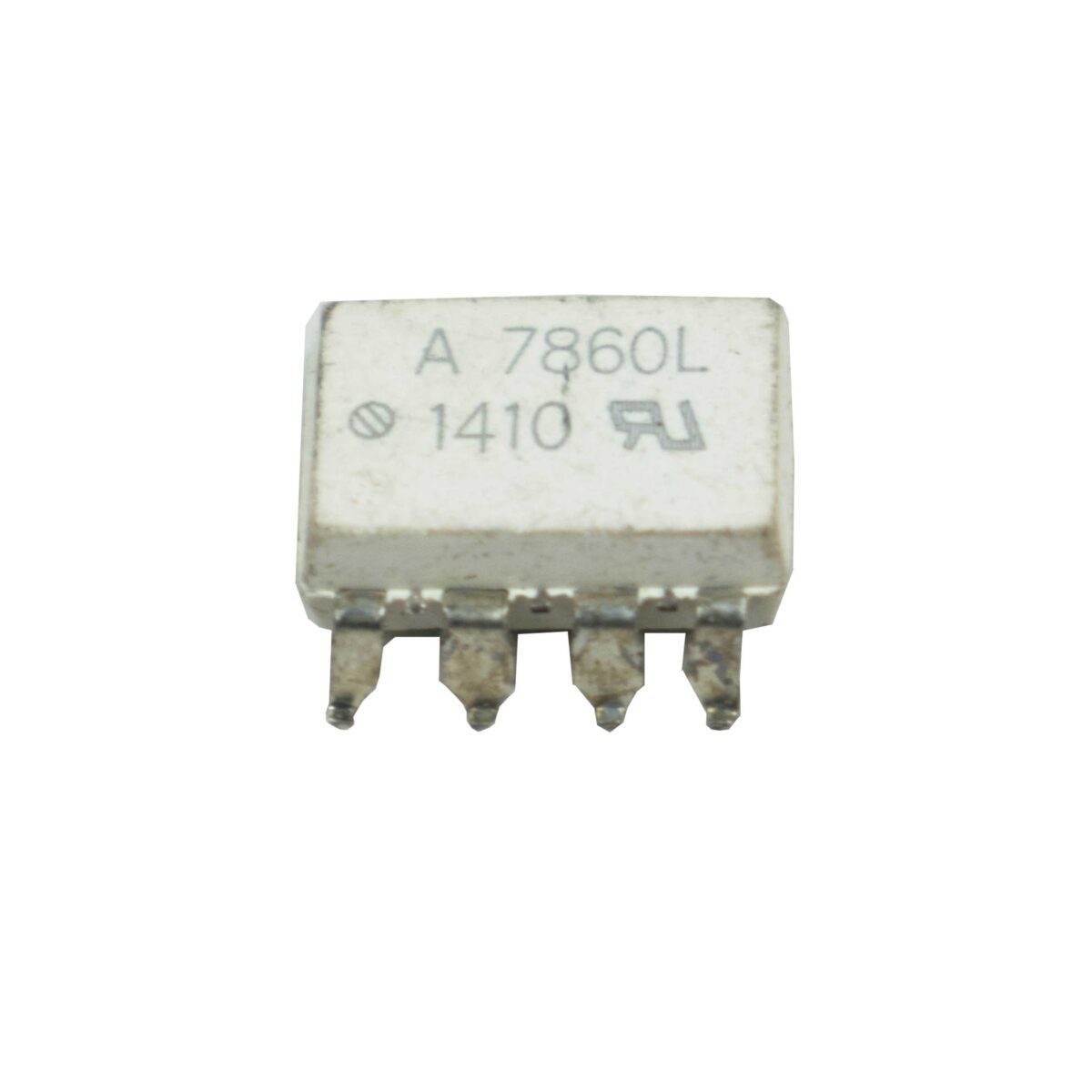

Awago A7860 Optically Isolated Modulator IC

Original price was: ₹367.75.Current price is: ₹282.26. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%268.14 (Including tax)
11 - 208%259.68 (Including tax)
21 - 4010%254.04 (Including tax)
41 - 10012%248.38 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

19 People watching this product now!
Description

The Optically Isolated Modulator A7860/HCPL-7860/HCPL-786J. In power inverters, this isolated modulator enables for direct measurement of motor phase currents. The modulator output is transferred across the isolation barrier via the drivers.

The A7860/HCPL-7860/HCPL-786J Isolated Modulator (optocoupler with 3750 VRMS dielectric withstand voltage rating) uses a SigmaDelta () over-sampling modulator to convert a low-bandwidth analogue input into a high-speed one-bit data stream. High noise margins and strong immunity to isolation-mode transients are provided by this modulation. The on-chip sampling clock and modulator data are encoded and transferred beyond the isolation border, where they are recovered and decoded into independent high-speed clock and data channels.

Features

  • Linearity of 12 bits
  • Effective Resolution: 12-bit with a 5-second signal delay (14-bit with a 102-second signal delay) (with HCPL-0872)
  • Over-Range Detection in 3 seconds (with HCPL-0872)
  • 200 mV Input Range with a Single 5 V Supply
  • Internal Reference Voltage Matching of 1%
  • Offset Calibration (with HCPL-0872)
  • Operating Temperature Range: -40°C to +85°C
  • Isolation Transient Immunity at 15 kV/s
  • UL 1577, CSA, and IEC/EN/DIN EN 60747-5-2 safety approvals

Applications

  • Motor Phase and Rail Current Sensing
  • Data Acquisition Systems
  • Industrial Process Control
  • Inverter Current Sensing
  • General Purpose Current Sensing and Monitoring

 For more info. you can refer: A7860 Datasheet

Specifications
ModelA7860
BrandAwago
Operating Supply Voltage 5V
Minimum Operating Temperature– 40° C
Maximum Operating Temperature+85° C
Maximum Clock Frequency13.2 MHz
Reference Voltage320mV
SNR – Signal to Noise Ratio73dB (max)
PackageDIP
Country of OriginChina
