Benewake TF-SV24S08 Lidar Range Finder Sensor Ranging Module

19 People watching this product now!

SKU: rz24310887 Category: LiDAR Sensor

Description

TF-SV24S08 is a single-point LiDAR based relay module. The working principle of LiDAR used by this module works on ToF (Time of Flight). With the unique optical and electrical design, the single-point ranging LiDAR safety sensor can realize stable, accurate and sensitive distance measurement. It is characterized by small size, light weight, low power consumption, and built-in adaptation algorithms for various application environments and targets.

Applications:

Parking system
Machine security
Intrusion detection
Any switching application

Features:

Distance range up to 8
Meters
High accuracy
Tiny Size
Low power consumption

Specification:

Supply voltage: 8-36V
Color: Black
Accuracy: -+6cm%@(0.2m-3m);+-2%@(3m-8m)
Light source: VCSEL
Frame Rate: 1-250Hz (adjustable)
Average Current: <30mA
Peak Current: 150mA
FoV: 2°
Operation temperature: -10~60℃
Product weight: 41g
Product Dimension: 69.50 x 45.80 x 20mm

Note: For more information refer to Datasheet

Package include:

1 X Benewake TF-SV24S08 Lidar Range Finder Sensor Ranging Module

Reviews (0)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping & Delivery

Shipping and Delivery Policy

1. Shipping Process:

Orders are processed within 1-2 business days after payment confirmation.
Delivery time varies based on location and selected shipping method, typically ranging between 3-7 business days.
We partner with trusted courier services to ensure timely and safe delivery.

2. Shipping Charges:

Shipping charges are calculated at checkout based on the delivery location and package weight.
Free shipping may be available for orders above a specified amount, as mentioned on our website.

3. Order Tracking:

Once your order is shipped, you will receive a tracking ID via email or SMS to monitor the shipment status.

4. Delivery Address:

Please provide a complete and accurate delivery address to avoid delays.
We are not responsible for delivery failures due to incorrect or incomplete address details provided by the customer.

5. Delivery Issues:

If a package is delayed, lost, or damaged during transit, please contact our support team immediately.
Claims for lost or damaged items must be reported within 48 hours of delivery.

6. No Return Policy for Opened/Soldered Products:

We do not accept returns for products that have been opened, used, or soldered.
Ensure you verify product compatibility before purchase, as returns will only be accepted for unopened and unused items in their original packaging.

7. Refund Policy:

Refunds will be issued only for canceled orders before shipment or wrong/damaged items received (subject to investigation).
No refunds or replacements for products that have been tampered with, soldered, or physically damaged by the customer.

Richbeam Lakibeam1L Industrial TOF 2D LiDAR

Richbeam Lakibeam1L Industrial TOF 2D LiDAR

Out of stock

₹63,289.29 – ₹71,919.65 (Including tax)

SKU: rz2434828

Model	LakiBeam1L
Range Principle	TOF
Detection Distance	0-40m
Data Sample Rate	45kHz
Range Accuracy	±2cm
Power Consumption	≤2W
Horizontal FOV	270°
Protection Distance	≥40m(70% reflectivity) ≥20m(10% reflectivity)
Horizontal Resolution & Rotation Frequency	0.1°(10Hz);0.25°(25Hz) 0.25°(20Hz);0.25°(30Hz)

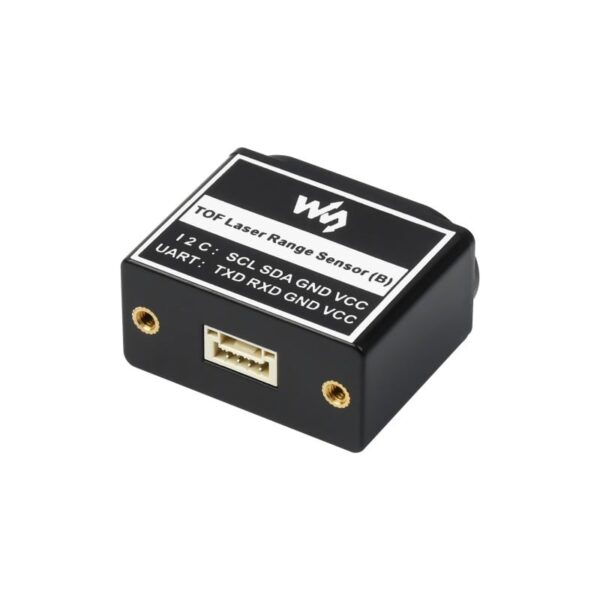

TOF (Time Of Flight) Laser Range Sensor (B), UART / I2C Bus, Long Range

Out of stock

₹3,223.03 – ₹3,662.55 (Including tax)

SKU: rz24316854

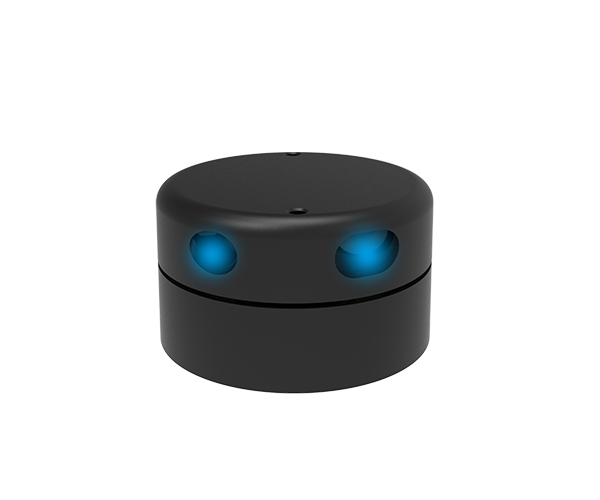

YDLIDAR G2 360° 2D LiDAR Sensor

Out of stock

₹17,433.55 – ₹19,810.85 (Including tax)

SKU: rz24312799

Product Type	LiDAR
Model	G2
Brand	YDLIDAR
Maximum Supply Voltage (V)	5.2 V
Operating Current (A)	500mA
Field of View	360°
Ranging Distance	12m
Ranging Frequency	5000 times per second
Angle Resolution	0.864 (Frequency-12Hz)
Operating Temperature	50 ℃

YDLIDAR G4 360° 2D LiDAR Sensor

Out of stock

₹59,169.43 – ₹67,237.99 (Including tax)

SKU: rz2438022

Input Voltage Range	4.8-5.2
Startup current (mA)	1000
Working current (mA)	350
Ranging frequency (Hz)	9000
Motor frequency (Hz)	5-7

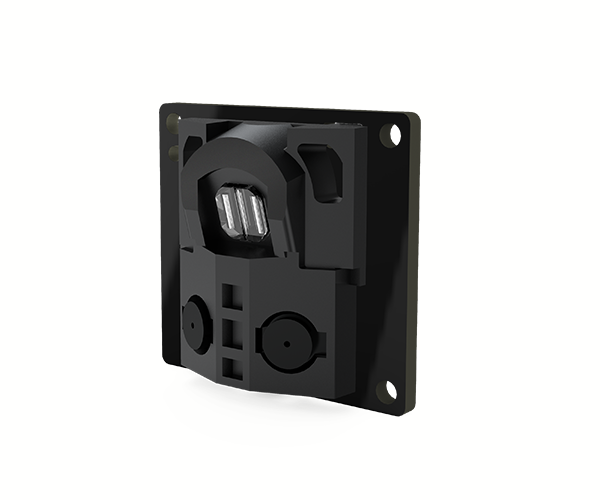

YDLIDAR GS2 Linear array solid LiDAR Sensor 1
