CANBed &#8211; Arduino CAN-BUS Development Kit

12 People watching this product now!

SKU: rz24317023 Category: Development Board/Kit

Description

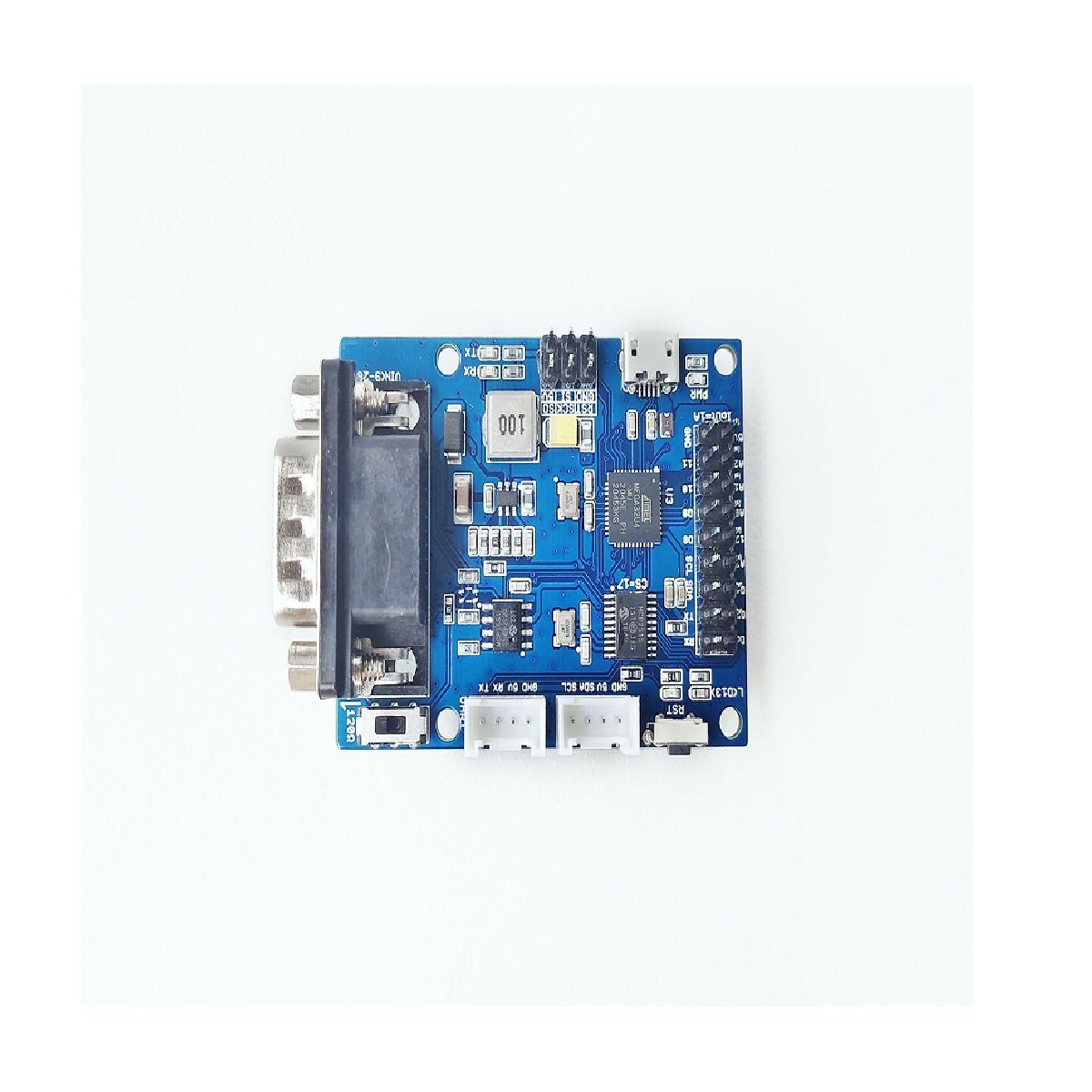

CANBed – Arduino CAN-BUS Development Kit embeds an ATmega32U4 chip, which means you don’t need to add other jump wires to another Arduino Board, it is an Arduino board itself plus MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver!

CAN-BUS is a common protocol and widely used in industry due to its long travel distance, medium communication speed, and high reliability. Now you can realize a CAN-BUS project through this tiny little development board.

Because of the ATmega32U4 onboard chip, this board has rich resources in pins. As a matter of fact, there are 18 pins based on core chip set up on the board, which include digital pins, analog pins, UART, and I2C interface. Besides, this CANBed adopts MCP2515 CAN Bus controller with SPI interface and MCP2551 to achieve the CAN-Bus capability. There are also two kinds of CAN Bus interfaces for various demands which are sub-D9 connector and terminal block interface. They would fit all your needs in the connecting method.

This CAN-Bus development board is perfectly compatible with Arduino IDE. With the help of the Arduino CAN-Bus library, you will save plenty of time for your CAN project.

Features:

Helps to realize the CAN-BUS communication protocol
Requires no other MCU to control
Comes with:
1. Atmega32U4 chip
2. MCP2515 CAN-BUS controller
3. MCP2551 CAN-BUS transceiver

OBD-II and CAN standard pinout that is selectable at the sub-D connector
Combines CAN-BUS shield and Arduino development board (Atmega32U4) together on a single board
18 pins that include digital pins, analog pins, UART, and I²C interface
Compatible with Arduino IDE

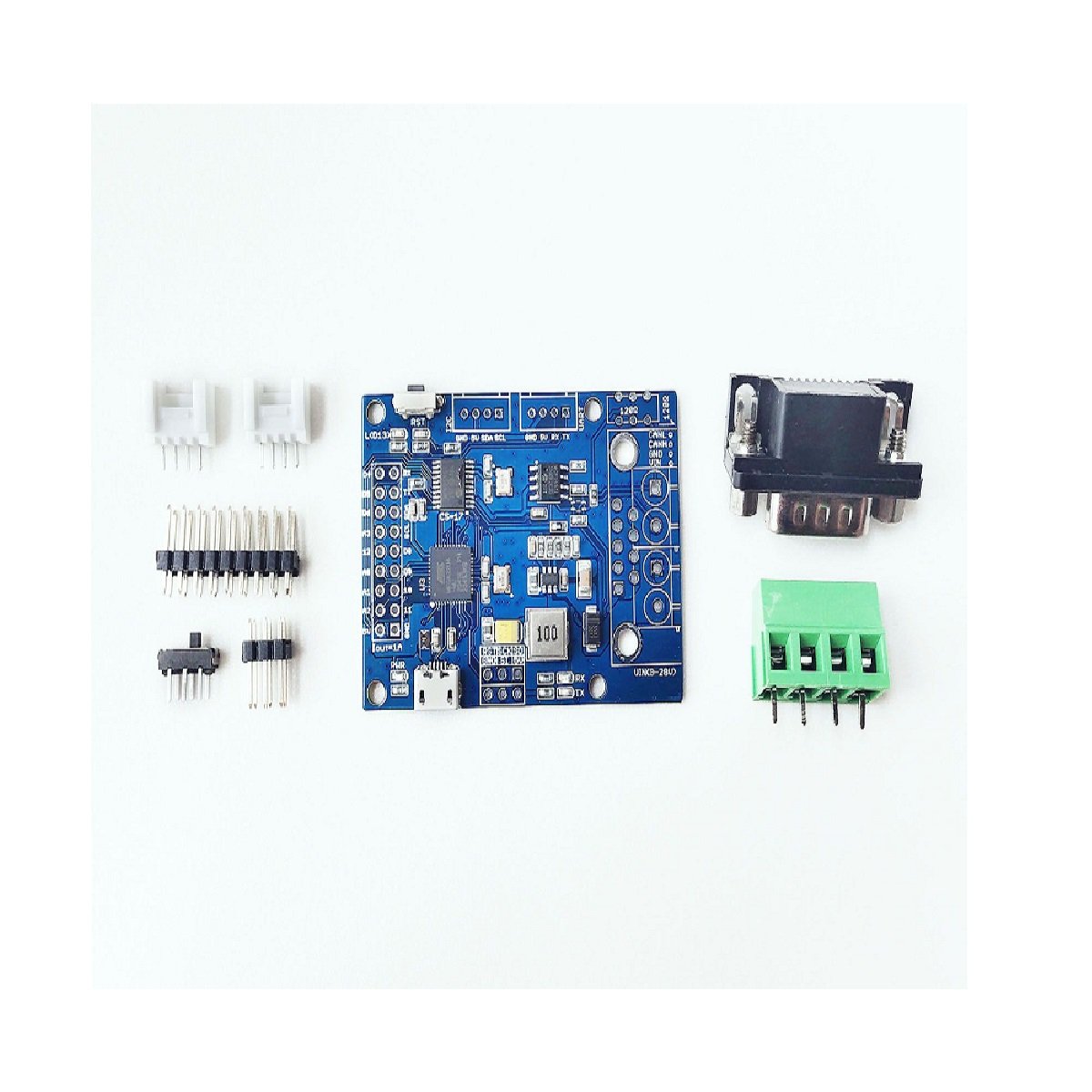

Package Includes:

1 x CANBed PCBA
1 x sub-D connector
1 x 4PIN Terminal
2 x 4PIN 2.0 Connector
1 x 9×2 2.54 Header
1 x 3×2 2.54 Header

Additional information

MCU	Atmega 32U4 (with Arduino Leonardo bootloader)
Operate Voltage (CAN-BUS)	9-28V
Operate Voltage (MicroUSB)	5V
Flash Memory	32KB
SRAM	2.5KB ROM: 1KB
Clock Speed	16MHz
Input Interface	Sub-D
