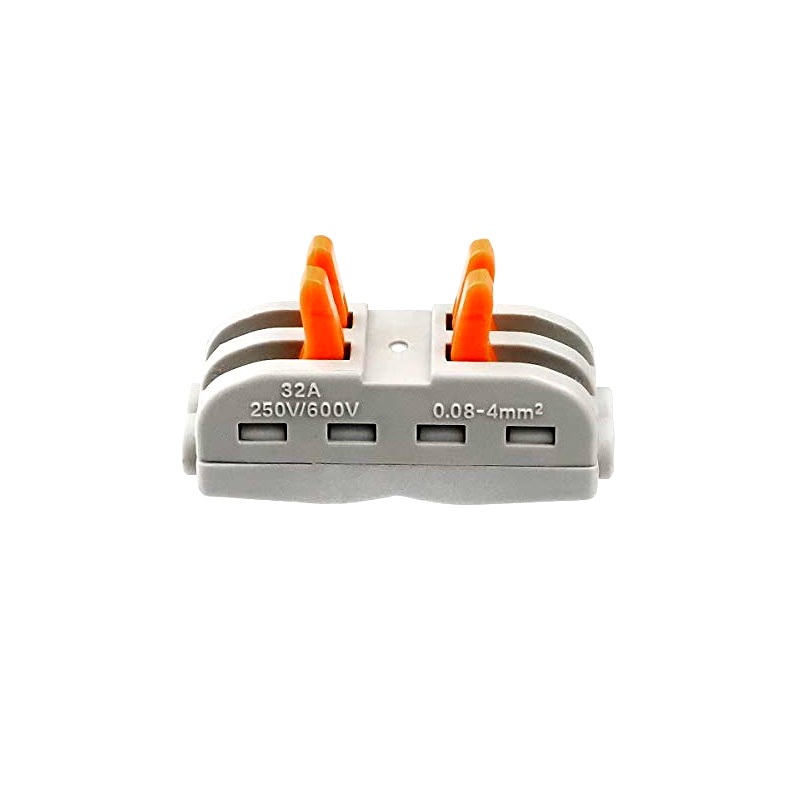

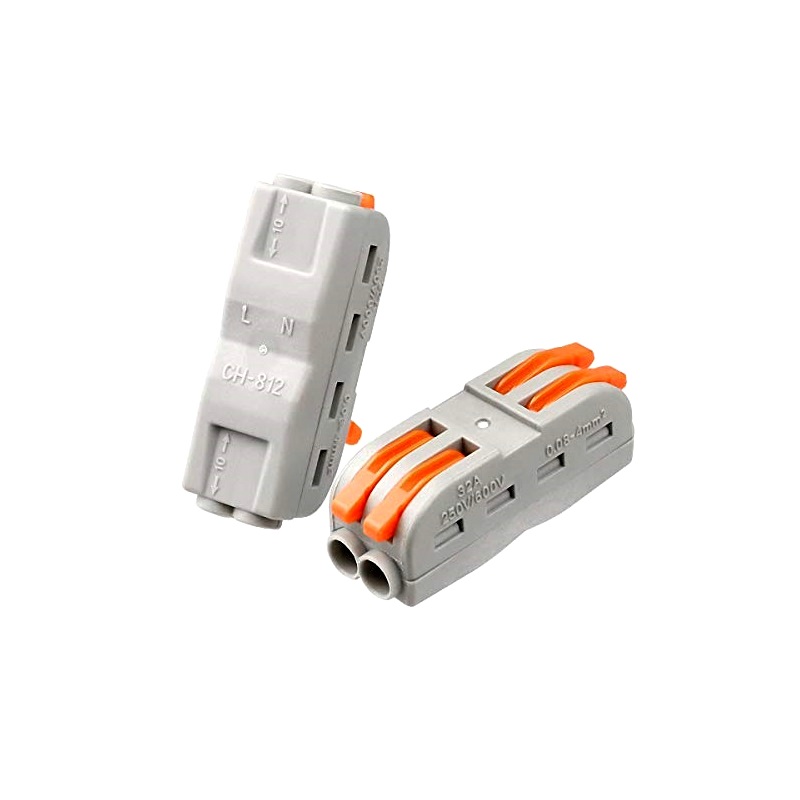

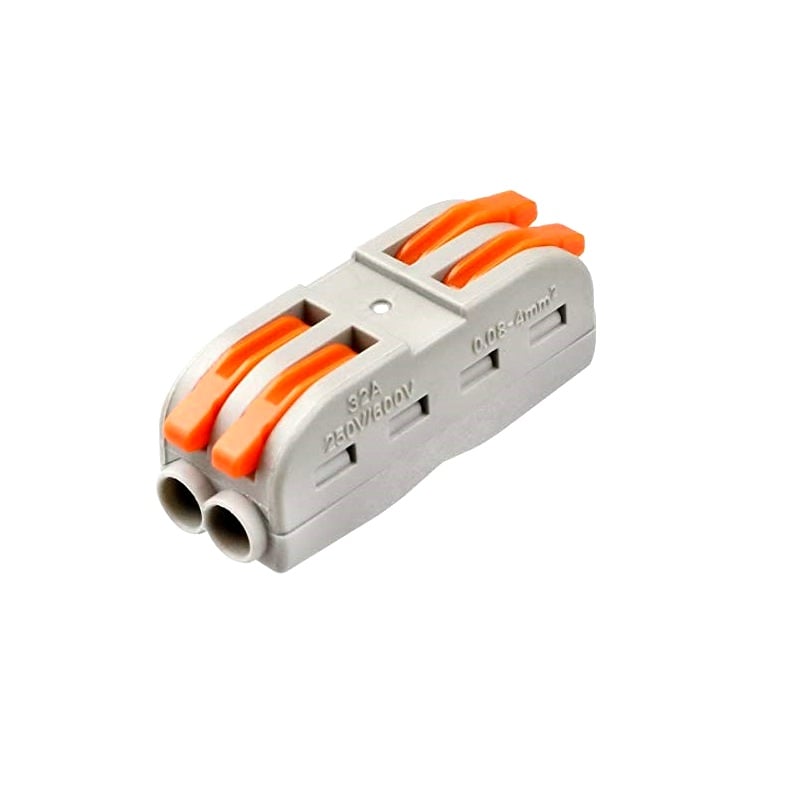

CH-812 0.08-2.5mm 2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. This connector comes with two line connection which can be used for Live and Neutral wire seperately

PCT Spring Lever Connector PCT-212, 213, 215, 215, 218  and CH-812, 813, 2-4, 2-6 etc. comes with compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

• PCT-212 is a Two-wire connector
• PCT-213 is a Three-wire connector
• PCT-214 is a Four-wire connector
• PCT-215 is a Five wire connector
• PCT-218 is an Eight-wire connector
• CH-812 is a Two to Two-wire connector
• CH-813 is Three to Three wire connector
• CH-2-4 is a Four to Two-wire connector
• CH-2-6 is a Six to Two-wire connector

Benefit of these connectors over wire Joint:

• Safe and Efficient: It has the fewest installer possibilities for error of any connector, like not tightening wire properly or with sufficient torque. It is very good at preventing the thermal cycling release of wires connected together. If you are a DIY person these guys will make you sleep better at night when doing your own wiring projects.
• Universal Compatibility: The connector for joining braided and solid wire and wires of differing sizes. They work with almost every gauge of normal household wiring: ceiling fans, sockets, switches, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and much more
• Convenient and Practical: Just lift up the lever, insert the stripped wire, and press the lever closed, holds it tight, and make a solid connection. These are a good purchase for those of people that are doing electrical projects or work where you need to connect lots of wires. Sometimes you need to jumper something or run tests on a circuit .they do not mess up the wire ends nearly as much, keeping electrical boxes relatively roomy and not having to twist a fistful of copper wire together.
• Revolution: If you’ve never used them, get some. We believe that you will be excited when using these little smart connectors over the traditional, old-school plastic block with nuts-bolts now.

Features:

1. Compact, Super easy, Reliable, and Reusable.
2. High-grade Insulative Nylon Material
3. Strong Spring Locking Lever
4. Nickel Plated Metal Point Inside
5. Good Temperature Resistance
6. Compact Splicing Connector
7. 4-Conductor Terminal Block
8. With Operating Levers
9. Max. Continuous Service Temperature 85°C

Package Includes:

1 x CH-812 0.08-2.5mm 2 Pole Wire Connector for 2 Wireline Splicing

The 11949 is a 3-pole Power Entry Connector with maintenance-free screwless terminals. The splash-proof quick-connect surface-mount socket outlet features cable entry, one at the top (open), two at the bottom, and one rear entry (closed), the base of the enclosure can rotate 180⁰.

Features:

1. 50 to 60Hz Frequency
2. 6 hr Earthing position
3. 4 drill holes prestamped in the base of the enclosure

Specifications:

1. Current Rating: 32A
2. Voltage Rating VAC: 240V
3. Connector Mounting: Cable Mount
4. Electrical Connector Gender: Socket
5. Pin Configuration: 2P+E
6. Connector Colour: Blue
7. IP Rating: IP44

Package Includes:

1 x 11949-SOCKET SURF MT, 32A, 240V, 2P+

The 710W-00/01 is a type of power connector that is designed for power entry applications. It is a female connector that is used to connect power cords and cables to devices such as computers, appliances, and electronic equipment.

The 710W-00/01 connector has a maximum current rating of 10 amps and a maximum voltage rating of 250 volts AC. It is designed for use with a variety of cable sizes ranging from 0.75 mm² to 2.5 mm². The connector is equipped with a quick-connect terminal, which makes it easy to connect and disconnect the power cord.

The connector is made of high-quality materials that are designed to withstand a wide range of temperatures and environmental conditions. It is also designed to provide a secure and reliable connection, which helps to prevent accidental disconnections and ensure the safe operation of equipment.

Specifications:

1. IEC Connector Type: IEC C13 Outlet
2. Current Rating: 15A
3. Voltage Rating: 250VAC
4. Contact Termination Type: Quick Connect
5. Connector Mounting: Snap-In, Flange Mount

Packages Includes:

1 x 710W-00/01-CONNECTOR, POWER ENTRY, FEMALE

Specifications:

The HR10A series from Hirose(HRS) are low-cost push-pull coupling-type micro connectors. These are developed in response to customer needs for miniaturization, high density, and easy handling. The HR10 series connectors offer lightweight and assure high reliability, durability, and easy push-pull cycles. These connectors can be used in small-sized electronic equipment requiring high reliability. Simple and well-designed connectors with a matte finish enhance the appearance of the equipment. The most compact HR10 series is as slender as a cigarette but fits every application with a well-balanced and simplified layout in limited space. Five key system permits only one way of coupling so that you can find right position to connect even when blind mating.

Features:

1. Plug, jack, and receptacle shell type
2. The number of contacts varies from 4 to 20
3. Current rating of 2A
4. Operating temperature range -25°C to 85°C
5. The connector pin is located to avoid any damage which may be caused when blind mating
6. Space saving push-pull mechanism facilitates multi-installation of connectors
7. Easy wiring and mounting
8. Satin finished nickel plated zinc alloy and brass shell
9. Blue or black polyamide/PBT insulation
10. Silver or gold plated brass/bronze male terminal and beryllium/phosphor bronze female terminal

Specifications:

1. Male Terminal Material: Silver or gold plated brass/bronze
2. Female Terminal Material: beryllium/phosphor bronze
3. Number of contacts: varies from 4 to 20
4. Operating temperature range: -25°C to 85°C
5. Current rating: 2A

Package Includes:

1 x HR10A-7P-6S(73)-PLUG, SOCKET CNTS, PUSH-PULL,

The PX0730/P is a 3-way front panel-mount Circular Connector with screw termination and pin contacts. This Buccaneer standard series plug mates with flexible cable connector and single hole fixing.

Features & Specifications:

1. Water and dustproof to IP68 when mated
2. Compact design
3. Positive locating keyways
4. Colour coded identification variants
5. Easy assembly

Package Includes:

1 x PX0730/P-Circular Connector, Buccaneer Standard Series, Panel Mount Plug, 3 Contacts, Screw Pin
