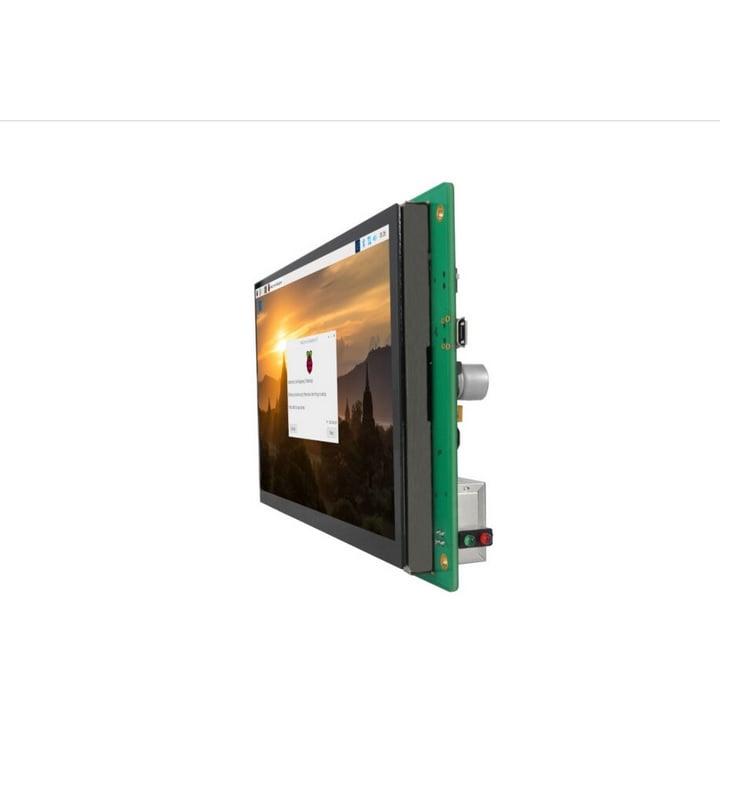

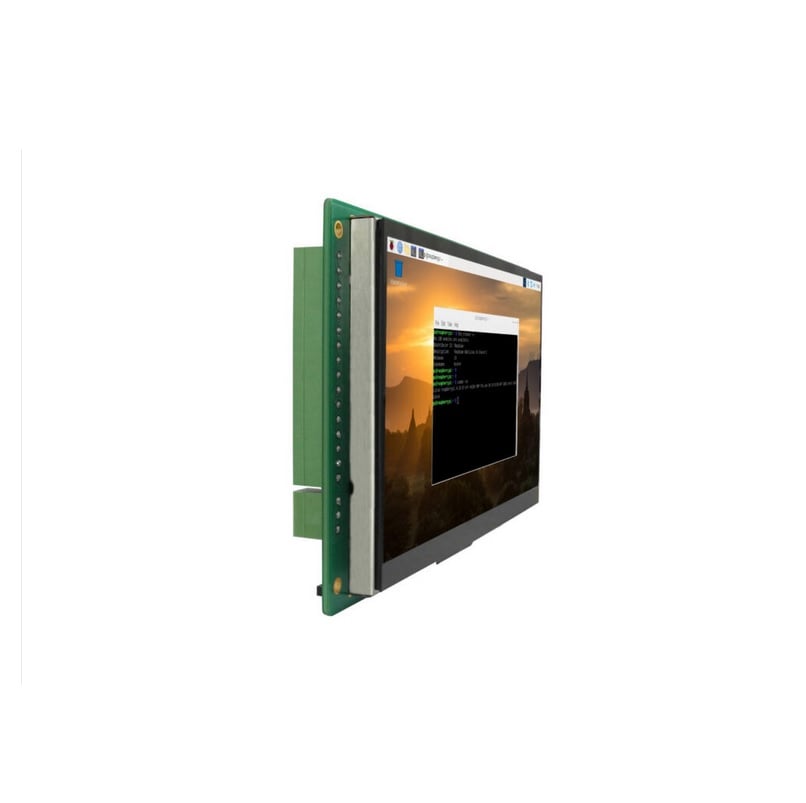

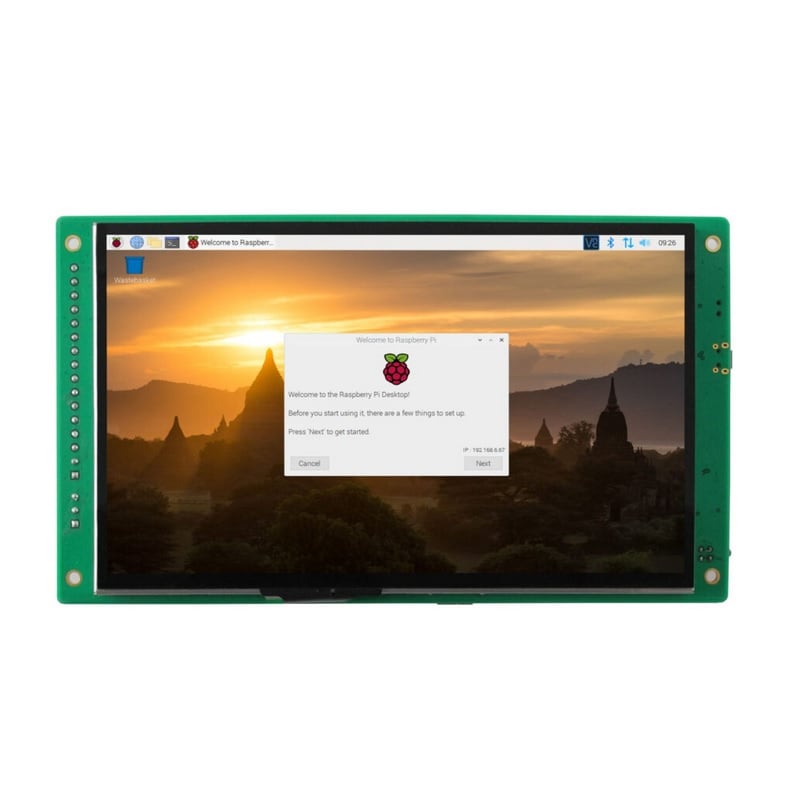

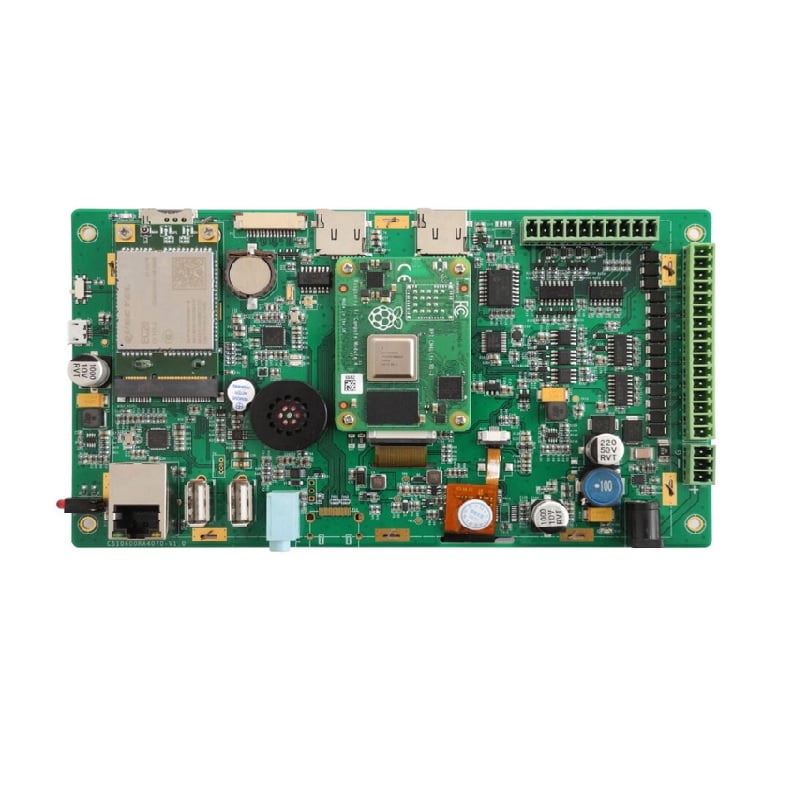

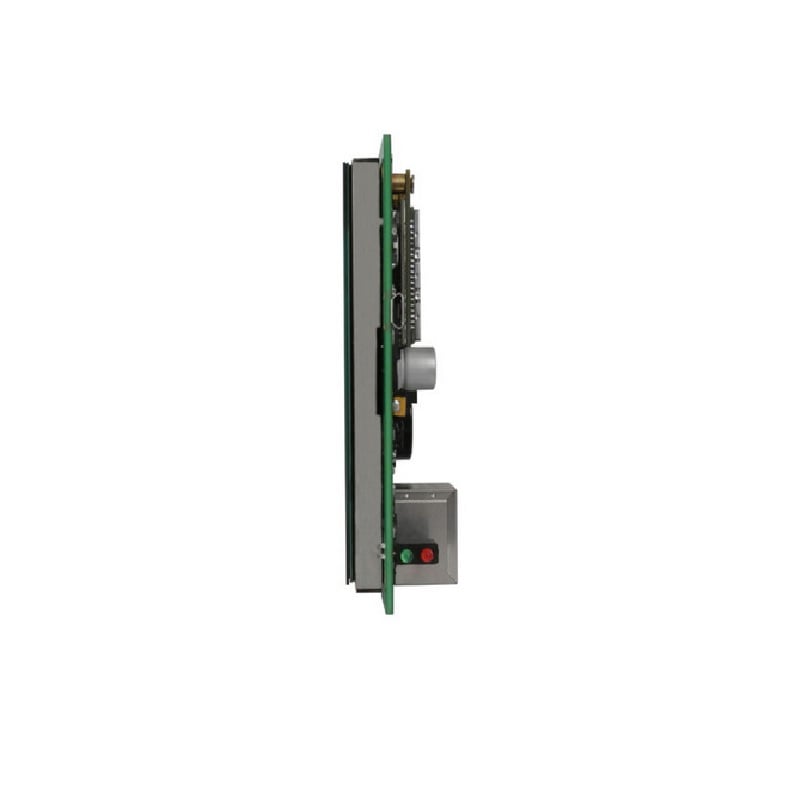

Chipsee EPC-CM4-70 Industrial embedded Raspberry Pi Compute Module 4 compatible 7 Inch PC

The EPC-CM4-70 (CS10600RA4070E) is an industrial computer for the Raspberry Pi^® Compute Module 4. Available in embedded form-factor, the Industrial Pi features a 7-inch IPS display (1024×600 pixels and 500 nits of brightness) with a 5-point capacitive touch panel, and RS232 and RS485 ports, multiple opto-isolated I/O, Ethernet, double USB, 4G/LTE (optional), ZigBee function, double TF card, on-board audio, RTC with a backup battery, audio I/O, and power management.

You can add a 4G/LTE module to the product, by choosing it in the optional modules section.

Note: Compute module does not come with this product you have to purchase it separately according to your need.

Features:

1. The EPC-CM4-70 is full-featured, rugged, designed, and certified for industrial usage
2. Ready to deploy industrial applications based around the Raspberry Pi Compute Module 4
3. The Compute Module 4 appears in different versions depending on the size of the DDR4 and eMMC.
4. The product has Raspberry Pi CPU, a high-performance Broadcom BCM2711 (RPi 4) application processor.
5. The Industrial Pi has a 5-point capacitive touch screen, with a 1024×600 resolution
6. Offers stable and accurate control over the device and great image clarity

Specifications:

1. Model: EPC-CM4-70
2. Form-factor: Embedded
3. CPU: Broad-com BCM2711 (RPi 4)
4. Display Size (inch.): 7.0″
5. Resolution: 1024×600
6. Brightness (NIT): 500 NIT
7. Touch Screen: Capacitive
8. FLASH: 16GB
9. External storage: 2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion.
10. WiFi/BT: Depends on the Compute Module 4 selected.
11. ZIGBEE: Onboard Zigbee module (NOT mounted by default)
12. 4G: Support miniPCIe slot for 4G/LTE module (neither miniPCIe Slot nor 4G LTE module is mounted by default.)
13. Ethernet: 1x Giga LAN
14. Camera: There is a camera connector compatible with the Raspberry Pi Camera connector (the camera is NOT mounted by default).
15. Audio: 3.5mm Audio Out Connector, Internal 2W Speaker
16. Buzzer: Yes
17. USB: 1x miniUSB OTG, 2x USB 2.0 HOST
18. RTC: High Accuracy RTC with Lithium Button Coin battery (Lithium Battery not included)
19. GPIO: Opto-Isolated GPIO, 4 Input, 4 Output, can drive up to 500mA current every Channel at most (external power source needed)
20. RS485: 2 Channels at most. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software.
21. RS232: 4 Channels at most
22. CAN: 1x CAN
23. OS: Debian
24. Power Input: 6~36V DC
25. Power Consumption: 5W
26. Current at 12V: 420 mA max
27. Working Temperature: 0°C to +60°C
28. Mounting Method: Embedded Mounting
29. Weight: 400 g
30. Dimensions: 190 × 107.8 × 27.7 mm

Packages Includes:

1 x Chipsee EPC-CM4-70 Industrial embedded Raspberry Pi Compute Module 4 compatible 7 Inch PC
