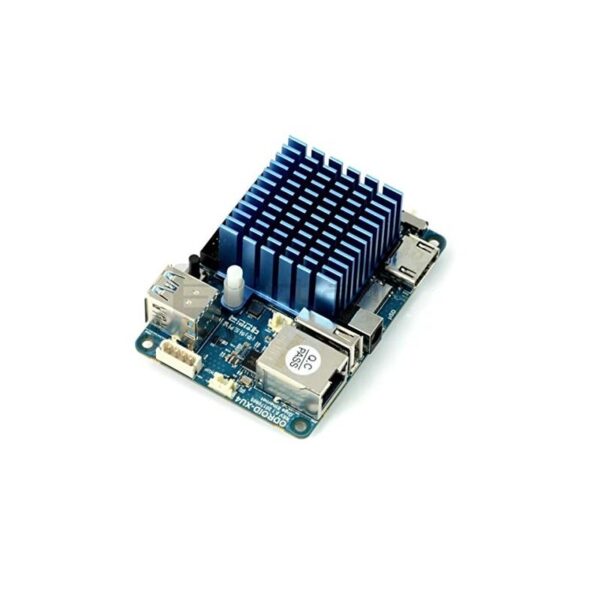

ODROID-XU4Q Single Board Computer

15 People watching this product now!

SKU: rz2437539 Category: Single Board Computer

Description

ODROID-XU4 is a new generation of computing devices with more powerful, more energy-efficient hardware and a smaller form factor. Offering open-source support, the board can run various flavors of Linux, including the latest Ubuntu 20.04 and Android 4.4 KitKat, 5.0 Lollipop, and 7.1 Nougat.
By implementing the eMMC 5.0, USB 3.0, and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices.
This allows users to truly experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games.

Features:

Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
Mali-T628 MP6(OpenGL ES 3.1/2.0/1.1 and OpenCL 1.2 Full profile)
2Gbyte LPDDR3 RAM PoP stacked
eMMC5.0 HS400 Flash Storage Interface (eMMC module sold separately)
2 x USB 3.0 Host, 1 x USB 2.0 Host
Gigabit Ethernet port
HDMI 1.4a for display
Size : 83 x 58 x 20 mm approx.(excluding cooler)
Power: 5V/4A input
Linux Kernel 5.4 LTS

Package Includes:

1 x ODROID-XU4Q Single Board Computer

Additional information

Processor	Samsung Exynos5422 ARM® Cortex™-A15 Quad 2.0GHz/Cortex™-A7 Quad 1.4GHz
Memory	2Gbyte LPDDR3 RAM PoP (750Mhz , 12GB/s memory bandwidth , 2x32bit bus)
3D Accelerator	Mali-T628 MP6 OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 and OpenCL 1.2 Full profile
Audio	HDMI Digital audio output. Optional USB sound card
USB3.0 Host	SuperSpeed USB standard A-type connector x 2 port
USB2.0 Host	HighSpeed USB standard A type connector x 1 port
Display	HDMI 1.4a with a Type-A connector
Storage (Option)	eMMC module socket : eMMC 5.0 Flash Storage (up to 64GByte)
MicroSD Card Slot	up to 128GByte
Fast Ethernet LAN	10/100/1000Mbps Ethernet with RJ-45 Jack ( Auto-MDIX support)
WiFi (Option)	USB IEEE 802.11 ac/b/g/n 1T1R WLAN with Antenna (External USB adapter)
HDD/SSD SATA interface (Optional)	SuperSpeed USB (USB 3.0) to Serial ATA3 adapter for 2.5″/3.5″ HDD and SSD storage
Power Input	4.8Volt~5.2Volt (5V/4A Power supply is recommended)
System Software	Ubuntu 16.04 + OpenGL ES + OpenCL on Linux Kernel 4.14 LTS Android 4.4.2 on Kernel LTS 3.10 Android 7.1 is available as a community driven OS development. Full source code is accessible via our Github.
Dimensions (L x W x H) mm	83 x 58 x 20
Weight (gm)	38 (without cooler approx.)
