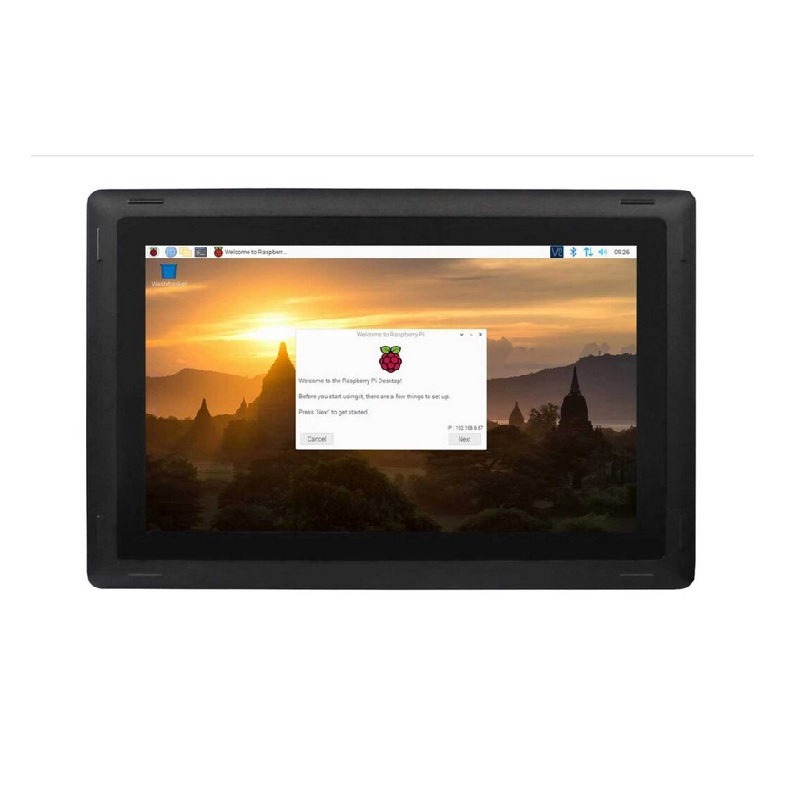

Chipsee PPC-CM4-101 Industrial embedded Raspberry Pi Compute Module 4 compatible10 Inch PC with Metal Case

17 People watching this product now!

SKU: rz24310729 Category: Single Board Computer

Description

The PPC-CM4-101 (CS12800RA4101P) is a high-quality industrial PC powered by the Raspberry Pi Compute Module 4 (Quad Cortex®-A72 processor at 1.5GHz clock).

Its form factor and metal enclosure with IP65 protection on the front panel makes it ideal for intensive industrial applications that require a human-machine interface.

It features a 10.1” screen with a ten-point capacitive touch panel and 1280×800 pixel resolution at 400 cd/m2 brightness. It offers extensive connectivity such as RS232 and RS485 ports and multiple opto-isolated I/O, Ethernet, USB, WiFi, Bluetooth, 4G, ZigBee, and much more.
The PPC-CM4-101 comes with a Raspberry Pi Compute Module 4 of your choice. You can choose it while ordering, along with the optional 4G/LTE module.

Features:

It gives you the advantage of numerous open source communities dedicated to the Raspberry Pi
ready to deploy applications based on the Raspberry Pi Compute Module 4 (Quad Cortex-A72 processor at 1.5GHz clock)
All the resources are at the tip of your fingers
you can use them for your next Industrial solution
The Industrial Pi, like other Raspberry Pi based products, supports the Debian operating system

Specifications:

Module: PPC-CM4-101
CPU: Broadcom BCM2711 (RPi 4)
Display Size (inch.): 10.1″
Resolution: 1280 x 800
Brightness (NIT): 400 NIT
Touch Screen: Capacitive
FLASH: 16GB
External storage: 1 TF card slot designed for storage expansion
WiFi/BT: Depends on the Compute Module 4 selected.
ZIGBEE: Zigbee module (optional, NOT mounted by default)
4G: Optional, not mounted by default
Ethernet: 1x Giga LAN
Camera: There is a camera connector compatible with the Raspberry Pi Camera connector (the camera is NOT mounted by default).
Audio: 3.5mm Audio Out Connector, Internal 2W Speaker
Buzzer: Onboard Buzzer, driven by GPIO
USB: 2 x USB 3.0 Host, 1 x USB OTG
RTC: High Accuracy RTC, can work 1 week after power off
GPIO: 8 Channels, 4 Input, 4 Output
RS485: 2x RS485
RS232: 2x RS232
CAN: 1 x CAN-BUS
PoE: Supported but not mounted by default
OS: Raspbian
Power Input: 12~36V DC
Power Consumption: 9.6W
Current at 12V: 800 mA max
Working Temperature: 0°C to +60°C
Mounting Method: Panel Mounting & VESA
Form-factor: Panel
Weight 1600 g
Dimensions: 275.5 × 193.5 × 46 mm

Packages Includes:

1 x Chipsee PPC-CM4-101 Industrial embedded Raspberry Pi Compute Module 4 compatible10 Inch PC with Metal Case
