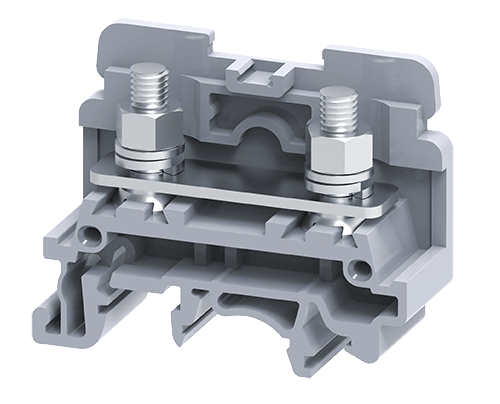

Connectwell CSTSN5U 16 sq.mm Stud Type Terminal Block in (Grey)

Original price was: ₹75.44.Current price is: ₹60.80. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%57.74 (Including tax)
11 - 208%55.94 (Including tax)
21 - 4010%54.71 (Including tax)
41 - 10012%53.50 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
Description

The Connectwell CSTSN5U is a 16 sq. mm Stud Type Terminal Block in Grey color, This nut driver-operated M5 sized Stud Type Terminal Blocks, with Universal Mounting Possibility. These Terminal Blocks are recommended for applications in which the connections are subjected to high vibrations. The wire is crimped to a ring/fork type Lug (Ferrule) and screwed onto the Terminal Block’s flat current bar. Terminal Blocks are available in sizes ranging from 1.5 to 16 sq mm. External shorting links can be used to achieve cross-connection. To completely encase these assemblies, it is advised to use Protective Covers made of transparent plastic.


Specifications
Rated Voltage1000V
Housing MaterialPolyamide
Rated Current76A

Tightening Torque

2 Nm

Product Function

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 32/DIN 35/DIN 35-15 Rail

Screw Size

M5

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 32 rail

46.3mm

Height with DIN 35 * 15mm rail

48mm

Height with DIN 35 * 7.5mm rail

40.7mm

Length

50mm

Width(Thickness)

17mm

Country of OriginChina
