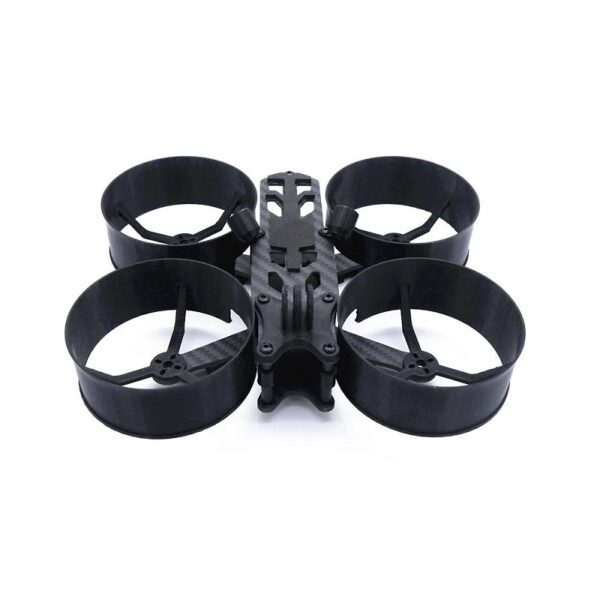

This is Cpro-X’3 HX155mm Carbon + 3D Printed Racing Drone Frame. This Frame is built Specially to tackle the Problems in Racing and Video recording with Quadcopter. This Frame is built with carbon fiber plates and 3D printed assembly It has good tensile strength.

This Cpro-X’3 frame has a wheelbase of 155 mm carbon fiber which makes it tough and durable. The frame is lightweight and possesses thick arms so it can give them good mechanical strength. The mini design gives the frame Aerodynamic efficiency.

This product has a wheelbase is about 155 mm. and an 80mm diameter propeller protection duct. It is also featured with a large space in the mainframe for mounting the camera and other accessories.

Features:

1. Carbon Fiber and 3D printed material
2. Lightweight and Durable.
3. The frame has Excellent Strength.
4. No trouble in racing indoor and outdoor.

Specification:

1. Model: Cpro X’3
2. Item Name: 155mm Wheelbase 3 Inch (80mm) Duct Frame Kit
3. Wheelbase: 155mm
4. Structure: HX type split
5. Material: 3K Carbon Fiber
6. Bottom Plate Thickness: 3mm
7. Upper Plate Thickness: 1.5mm
8. Internal Standoff Height: about 30mm
9. Weight: 127g (including a full set of 3D prints)

Package Includes:

1 x Cpro-X’3 HX155mm Carbon Fiber + 3D Printed Racing Drone Frame

4 x 3D Printed 80mm Propeller protection Duct.

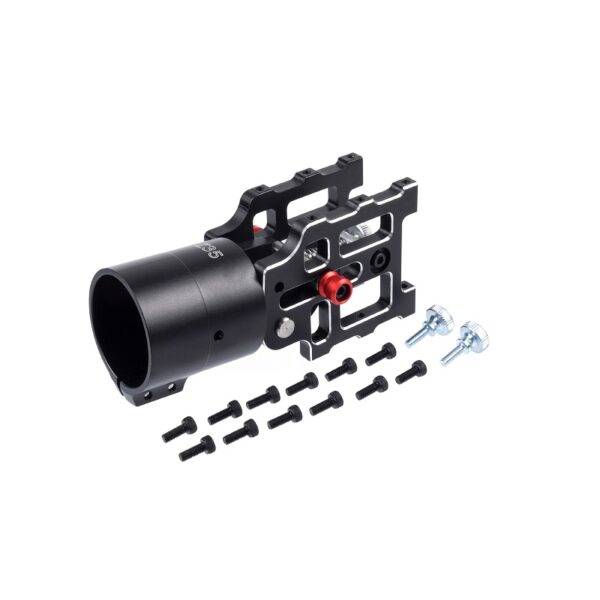

Z30 V2 Aluminum Folding Arm Tube Joint (Hex Head Single screw)

Specification:

1. Material: Aluminum alloy
2. Model: Z30 V2
3. Color: Black
4. Dimensions: 11 x 6 x 4mm
5. Weight: about 116 g
6. Quantity: 1pc

Packages Includes:

1 x Z30 V2 AluAinum Folding Arm Tube Joint (Hex Head Single screw)

Features:

1. Suitable for Martian 190 mm / 230 mm / 255 mm Frame Kit

Specification:

1. Item name: Power distribution board
2. Colour: Blue
3. Current: 2-6S
4. Weight: 9.2 g

Package Includes:

1 x Martian Mini frame kit for RC Drone

The new version has an improved arm design. Increased strength and width at the screwed anchor points, increased carbon thickness from 5mm to 6mm. All earlier versions of the DC5 V1.4 are compatible. The TITAN DC5 V1.4 HD Frame perfectly fit the amazing new DJI FPV system, this quad makes flying FPV truly breathtaking.

Features:

1.  Popular Deadcat style configuration
2. Optimized weight distribution: DJI unit and Stack centered
3. Fits both 30.5x and 20x stacks
4. Full 3K Carbon Fiber airframe with chamfered arm
5. 222mm wheelbase

Specifications:

1. Wheelbase (mm): 222
2.  Main body dimension (mm): 185*133
3.  Bottom to top distance (mm):  6mm
4.  Arm thickness (mm): 6
5. Bottom plate thickness (mm): 3
6. Top plate thickness (mm): 2.5
7. Camera plate thickness (mm): 1.5( 2.5mm included TPU inserts)
8. Mounting Holes (mm): 30.5*30.5

Package Includes:

1 x TITAN DC5 HD 222mm FPV Carbon Fiber Frame

Made of full carbon fiber, arm thickness 4.0mm, other plates 2.0mm. 3 inch drone frame,weight: 40G,super lightweight. Perfect balance between performance and durability. Support 1306 / 1407 / 1105, 13xx, 14xx series motors (9×12) Simple structure , easily assembled.

A drone frame has two main parts: the body and the arms. The body houses and protects your electronic components including flight controller, 4in1 ESC, FPV camera, VTX etc. Typically it consists of a bottom plate, top plate and some standoffs in between to hold them together. The arms are for installing the motors on

Specifications:

1.  Wheelbase: 150mm
2.  Thickness: Arm 4.0mm, other plates 2.0mm
3.  Paddle: 3 inch paddle
4.  Flight control hole distance: 20x20mm
5.  Camera installation width: 19mm
6.  Motor: 13xx, 14xx series (9×12)
7.  Structure: X-type split
8.  Aluminum column height: 25mm

Package Include:

1 X HF150 150mm 3 inch Carbon Fiber Frame

Distribution board PDB for QAV-XS 222 222mm FPV Racing Quadcopter

Features & Specifications

1. Remote Control Peripherals/Devices: ESC
2. Upgrade Parts/Accessories: Frame
3. RC Parts & Accs: Motor Components
4. Technical parameters: Value 6
5. Four-wheel Drive Attributes: Motors
6. For Vehicle Type: Helicopters

Package Includes:

1 x Power Distribution Board For QAV-XS 222
