The Creality Ender-3 V2 is a popular 3D printer that can be upgraded with a direct extruder kit. A direct extruder replaces the stock Bowden extruder, which is mounted remotely from the hotend, with a direct drive extruder that is mounted directly on the hotend.

The advantage of a direct extruder is that it provides better control over the filament, especially when printing with flexible materials. It also eliminates issues with filament slipping or grinding that can occur with a Bowden setup. In addition, a direct extruder can improve the overall print quality by reducing stringing and improving retraction.

Creality offers a direct extruder kit specifically designed for the Ender-3 V2, which includes a new extruder assembly, hotend adapter, and fan shroud. The installation process is straightforward and can be done with basic tools. However, it does require disassembling some of the printer’s components, so it’s important to follow the instructions carefully and take your time.

Upgrading your Ender-3 V2 with a direct extruder kit can be a worthwhile investment if you want to improve your printing experience and achieve better print quality.

Features:

1. Direct Extruder: The direct extruder kit replaces the stock Bowden extruder with a direct drive extruder that is mounted directly on the hotend, providing better control over the filament.
2. Build Volume: The Ender-3 V2 has a build volume of 220 x 220 x 250 mm, which is suitable for printing a wide range of objects.
3. Resume Printing: The printer has the ability to resume printing after a power outage or other interruption, which helps to reduce waste and save time.
4. Filament Runout Sensor: The printer includes a filament runout sensor that detects when the filament has run out and pauses the print job, allowing you to add more filament and resume printing.

Package Includes:

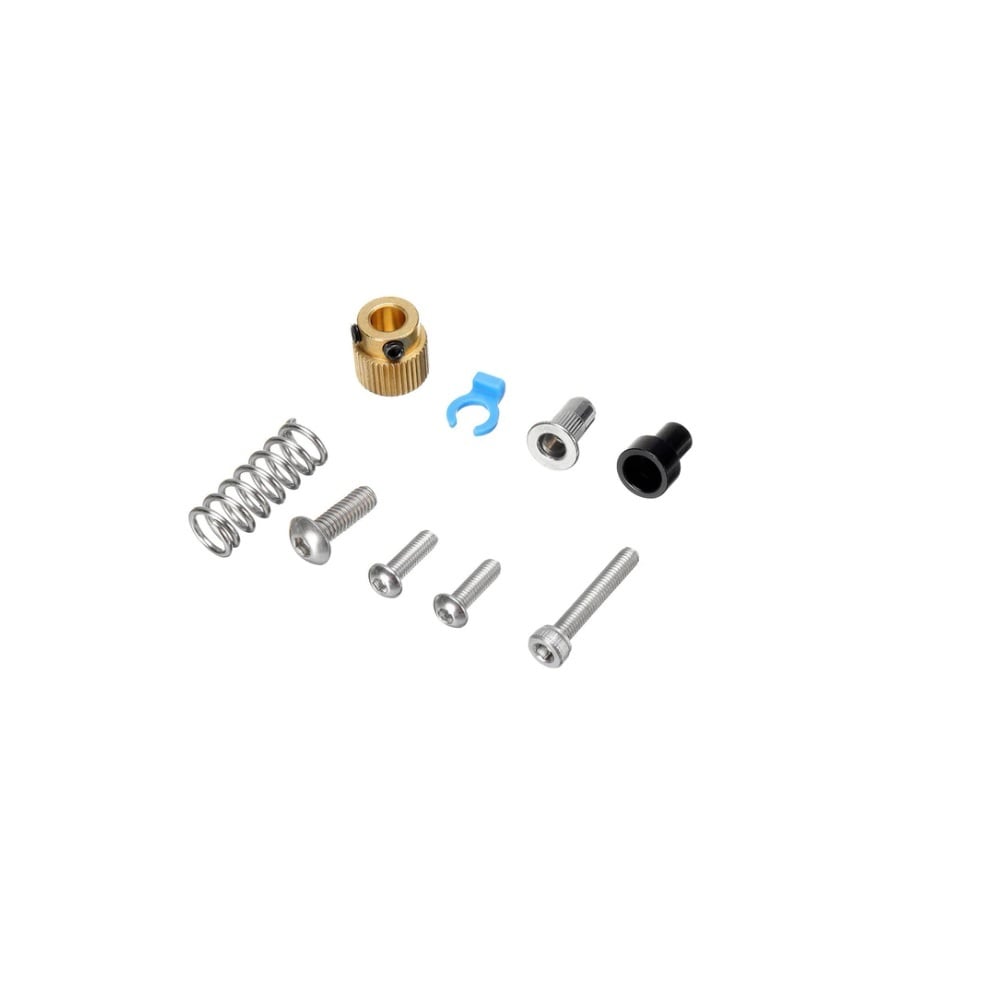

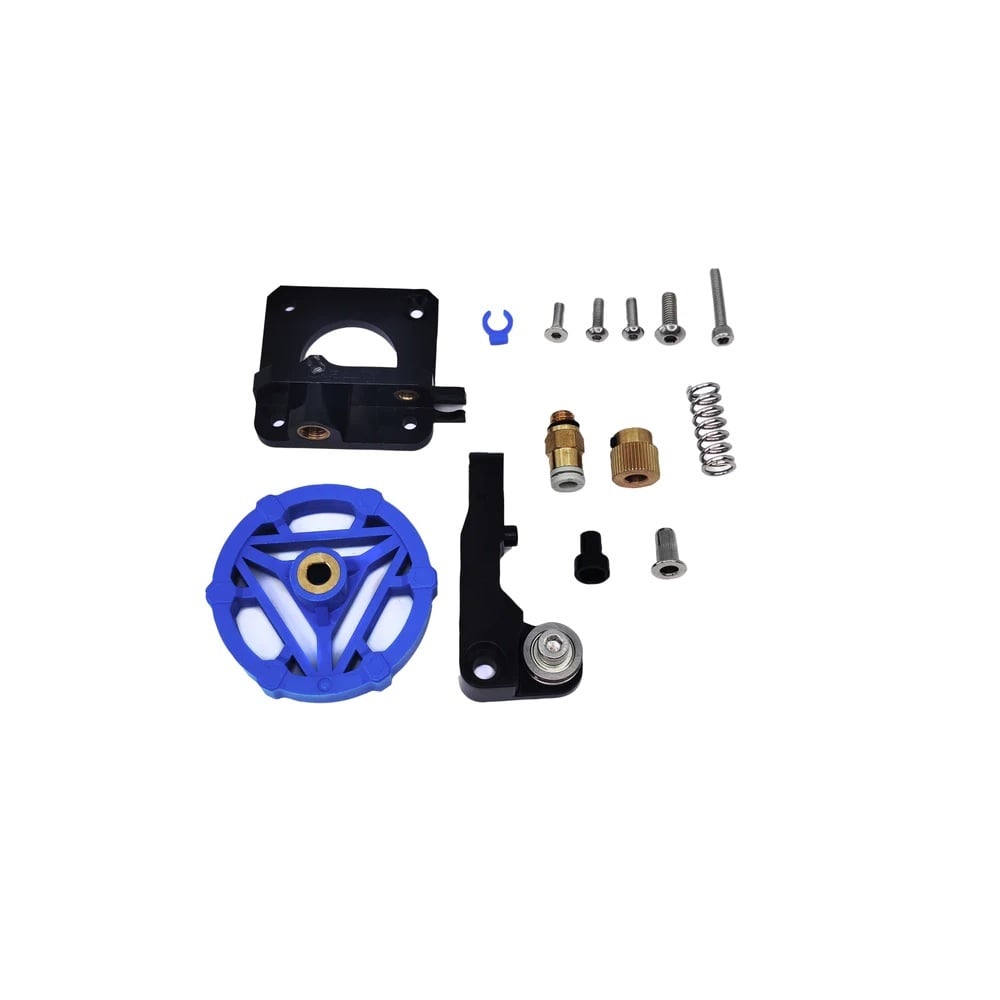

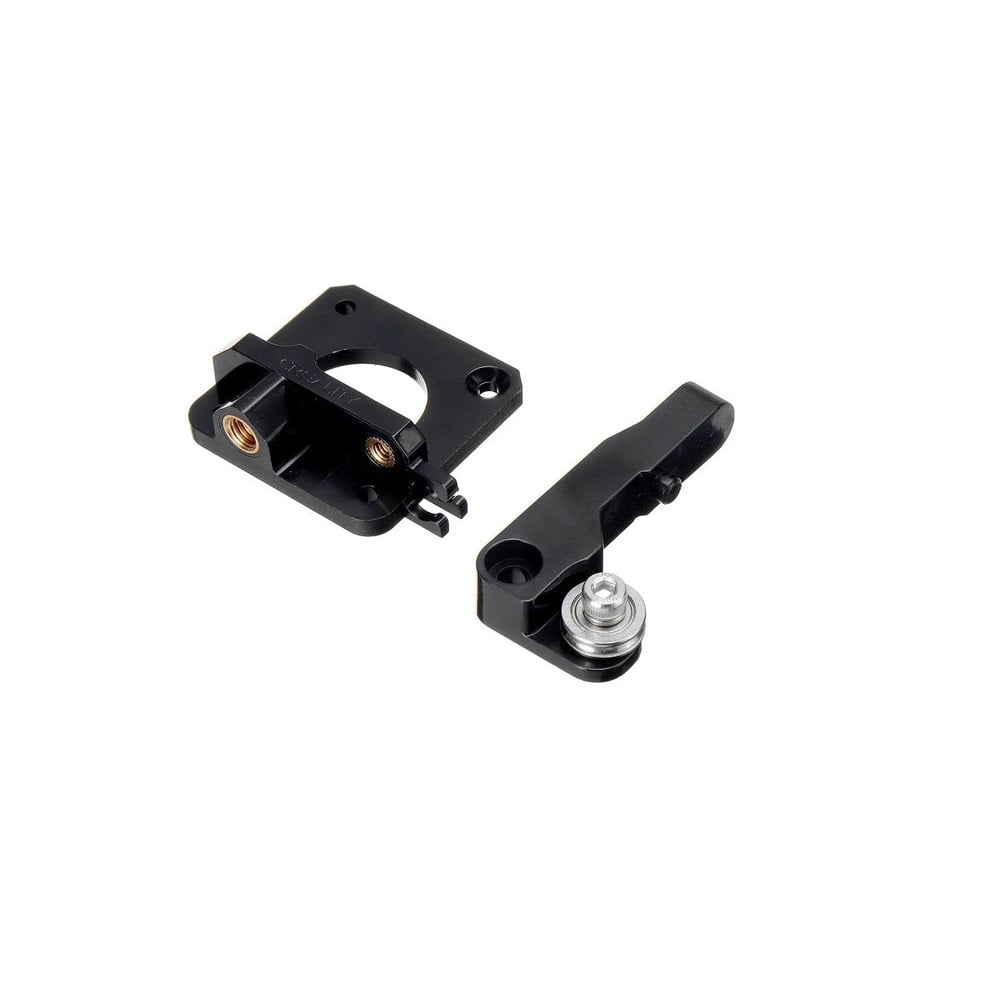

1 x Creality Extrusion Kit near black

The V6 is our flagship HotEnd featuring an all-metal design with high-temperature performance. The V6 is an incredibly versatile HotEnd allowing a wide variety of filaments to be used as standard. Whether you’d like to experiment with more advanced materials or print at different resolutions and sizes, our V6 ecosystem is suited for every application.

High-temperature performance

The benefit of an all-metal design means the V6 can comfortably reach 285°C with the supplied thermistor. If you’d like to print at higher temperatures (up to 500°C) then you can simply swap the thermistor with a PT100 or thermocouple (may require additional electronics). This allows you to print standard materials such as PLA, PETG and ABS as well as high-temperature materials such as Polycarbonate, Ultem, Nylon and PEEK.

Easy to use

The V6 features a cartridge-style heater block, enabling a no-fuss approach to replacing both heater cartridges and temperature sensors. Replacement thermistors, PT100’s and thermocouples can be slid into place and secured with a grub screw, ensuring maintenance is simple and painless.

Precise

Our all-metal heat-break maintains a sharp thermal break to provide better control over filament output; improving start and stops when extruding, as well as more effective retraction, combating oozing and stringing. The all-metal heartbreak features a refined internal surface finish to reduce extrusion force and improve the reliability of retractions.

We also have a variety of 3D Printers and accessories from the Brand CREALITY  at the best price in INDIA,

Click Here to explore.

Features:

1. All metal heartbreak
2. Maximum temperature: 285ºC
3. Cartridge style heater block
4. Groove mount

Useful Links:

Assembly Guide

Package Includes:

1 x E3D V6 HotEnd Full Kit – 1.75mm Universal (Direct) (24v)

Kit Includes:

1 x V6 heatsink 1.75mm

1 x V6 heat-break 1.75mm

1 x V6 brass 0.4mm nozzle 1.75mm or 2.85mm

1 x V6 duct

1 x V6 aluminium heater block

1 x Heater cartridge 24V

1 x Thermistor cartridge

1 x Thermistor extension cable

1 x 30 x 30 x 10 fan 24V

1 x Thermal compound

1 x V6 fixings kit

1 x V6 silicone sock

1 x PTFE tubing 100mm

The E3D Hemera Idler Kit is a component of the E3D Hemera extruder, which is a high-performance extruder designed for use in 3D printing. The Hemera Idler Kit is an essential part of the extruder that allows it to grip and guide the filament as it is fed into the printer’s hot end.

The E3D Hemera Idler Kit is made up of several parts, including a precision-machined aluminum idler arm, a stainless steel idler axle, a high-strength polymer idler wheel, and two springs that provide the necessary tension to grip the filament. The idler arm is designed to be both rigid and lightweight, allowing for accurate filament control while minimizing the weight of the extruder.

The stainless steel idler axle is precision-machined and designed to fit snugly into the idler arm. It is extremely strong and durable, ensuring that the idler wheel remains firmly in place and continues to grip the filament with consistent pressure over time.

The idler arm can be easily attached to the Hemera extruder body using four M3 screws, and the idler wheel and axle can be quickly and easily inserted into the arm. The kit also includes two high-quality springs that provide the necessary tension to grip the filament. These springs can be adjusted to ensure that the extruder is calibrated to the optimal tension for a wide range of filament types and diameters.

Specifications:

1. Idler Wheel Material: High-strength polymer
2. Idler Arm Material: Precision-machined aluminum
3. Idler Axle Material: Stainless Steel
4. Tension Springs: Two included, adjustable
5. Weight: 12g
6. Compatibility: Designed for use with the E3D Hemera extruder

Packages Includes:

1x idler

1x slide block

1x spring block

1x thumbwheel

1x M3 hex nut

1x idler shaft

Creality mounting holes. Convenient M3 clearance holes correspond to Creality’s X carriage mounting pattern, so you can get up and running quickly without extra mounts or adaptors. Just reuse the existing M3 bolts!

Easy nozzle swaps. A variety of Revo Nozzles enhance the capabilities of your 3D printer without a difficult nozzle changing processes. Every Revo Nozzle can be changed by hand. No tools, no hot tightening.

Simple, hassle-free connection. We’ve included some solderless, crimpless, butt splice connectors for easy connection to help you get up and running quickly without having to undo your entire wiring bundle.

Better reliability. Revo Nozzles are factory sealed, so there’s much less chance of nozzle leaks, and no hot tightening needed.

Better efficiency. The included Revo HeaterCore makes your 3D printer heat up faster and more efficiently than the stock HotEnd. Start 3D printing right away without annoying firmware adjustments: we’ve integrated a 100K NTC thermistor into this special HeaterCore. This thermistor has the same response as the stock HotEnd, so no firmware tweaks are needed.

Better safety. Thanks to built-in PTC behaviour of the heater, Revo CR will add an extra failsafe against thermal runaways to your Creality 3D printer – providing an extra layer of protection if thermal runaway protection is disabled in firmware.

Revo CR is directly compatible with the following Creality 3D printers:

• Ender 3
• Ender 3 Pro
• Ender 3 V2
• Ender 5
• Ender 5 Pro
• Ender 5 Plus
• Ender 6
• CR10
• CR10S
• CR10S4
• CR10S5

Please note:

1. Revo CR can be used with other Creality printers using the NTC thermistor, however you may need to make modifications to the mount and or Z sensor.
2. You may need to adjust the Z height when changing nozzles.
3. Please check whether your specific printer runs 12V or 24V before purchasing and assembling.

Features:

1. Upgrade your Creality 3D printer to Revo so you can change nozzles cold without special tools and hot tightening hassles
2. No extra mounts or adapters needed: Pre-drilled M3 clearance holes match Creality’s X carriage mounting pattern for easy installation
3. No firmware tweaks: This kit includes a special Revo HeaterCore with a 100K NTC thermistor, which has the same response as the stock Creality thermistor
4. Includes solderless, crimpless, butt splice connectors for easy connection. Wire the HeaterCore into your Creality 3D printer without undoing your entire cable bundle
5. Detailed upgrade guides created by us help you get 3D printing quickly

Specifications:

1. Max temp: 300°C
2. Filament diameter: 1.75mm
3. Solder and Crimping free wiring
4. Voltage: 24V
5. Temperature sensor: Creality specific
6. Mounting type: Creality M3

Packages Includes:

5 x butt splice connectors

1x Revo HeaterCore spring

1 x Revo CR HeaterCore:

• • Embedded 12V or 24V 40W heater cartridge
  • Embedded 100K NTC thermistor

Note: M3 bolts not provided

E3D colour-coded silicone socks for Revo Nozzles. Never run out of silicone socks for your Revo 3D printing setup! This colour-coded sock kit includes ten silicone socks for all your 3D printing needs.

Features:

1. Easy to use
2. Plug and play devices
3. Light weight

Packages Includes:

1 x Green nozzle socks

1 x Yellow nozzle socks

1 x Blue nozzle socks

1 x Black nozzle socks

1 x Red nozzle socks

Interested in experimenting with multi-material prints? Chimera+ is a two filament, two nozzle HotEnd. A versatile dual extrusion system that can print two different filament types in one print.

Chimera+ is compatible with the E3D ecosystem, meaning you can upgrade your setup to your desired specifications. Choose from our range of heater blocks, temperature sensors, heater cartridges, and nozzles.

The use of two independently temperature-controlled heater blocks allows the possibility of printing two different filament types at once. For example, you can print with two different colored PLA filaments at once for dual colored prints. Or you can use two different filament types such as PLA and a PVA support material for complex shapes with cleaner support removal.

Note: Product Image may vary in terms of cables colors according to the availability from Manufacturer

We also have a variety of 3D Printers and accessories from the Brand CREALITY  at the best price in INDIA,

Click Here to explore.

Features:

1. Cooling System Air-cooled
2. Multimaterial Printing
3. Maximum Temperature: 285°C
4. E3D Ecosystem Compatible

Package Includes:

1 x E3D Chimera+ Kit (24V with Air-Cooling System)

Kit Includes:

 1 x Aircooled HeatSink

2 x Collet

2 x Collet clip

1 x Cyclops+ fixings kit

2 x PTFE tube 800 mm

1 x 30 x 30 x 10 mm 24V

2 x V6 Silicone socks

2 x Brass nozzles 0.4 mm, 1.75 mm

2 x V6 aluminum HeaterBlocks

2 x V6 fixings kits

2 x 30W heater cartridge  24V

2 x Thermistor cartridge

2 x Thermistor extension cable
