Product details

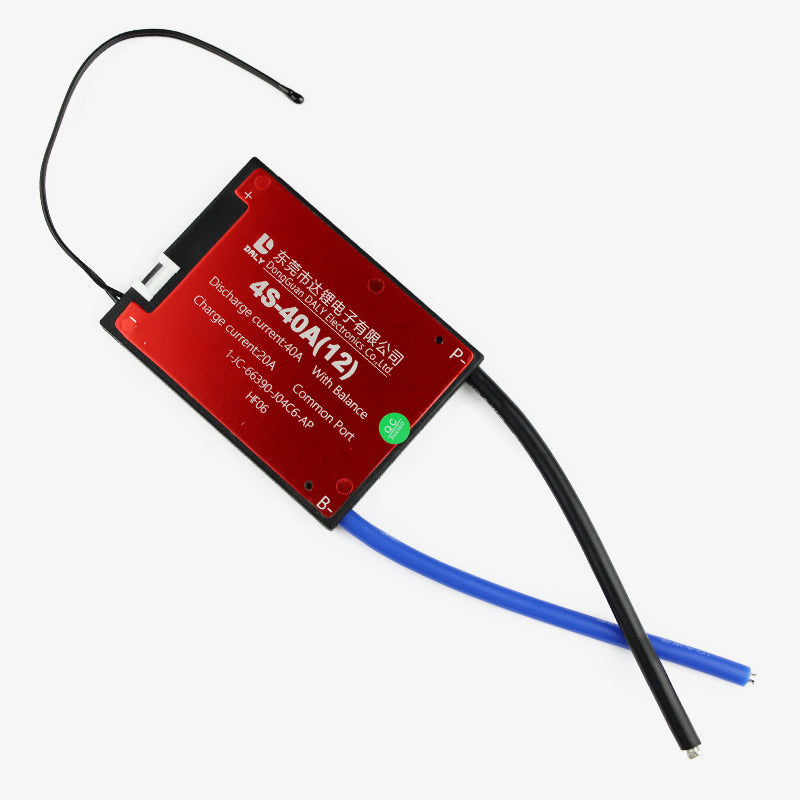

Daly Lifepo4 4S 12V 40A Battery Management System Circuit is an 4 Cell in Series 12V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.
Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
Specification :
| Balance Current(mA) | 30±5 |
| Balance Detect Voltage(V) | 3.5 |
| Cable Size (AWG) | 10 |
| Charge Current(A) | 20 |
| Charge Voltage(V) | 14.6 |
| Height (mm) | 9 |
| Length (mm) | 81.9 |
| Model | 4S 12V 40A |
| Over Discharge Detect(V) | 2.2±0.05 |
| Over Discharge Release(V) | Off load |
| Overcharge Detect Voltage(V) | 3.75±0.05 |
| Overcharge Release Voltage(V) | 3.55±0.05 |
| Width (mm) | 61.2 |
| Working Current(uA) | 100 |
| Working Temperature Range (°C) | -20 to 70 |
Package Includes:

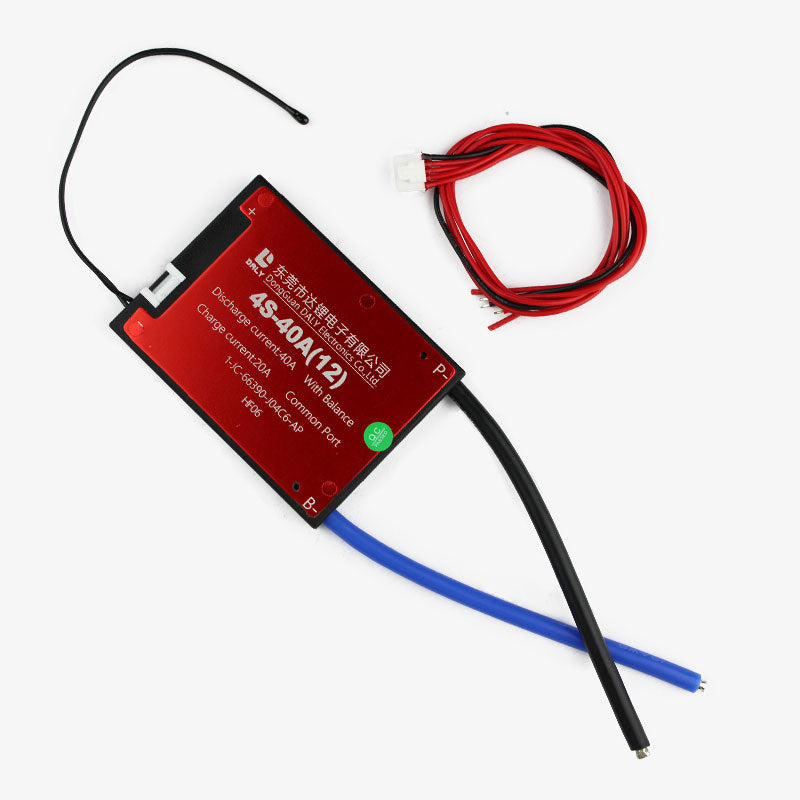

1 x Daly 4S 12V 40A Battery Management System
