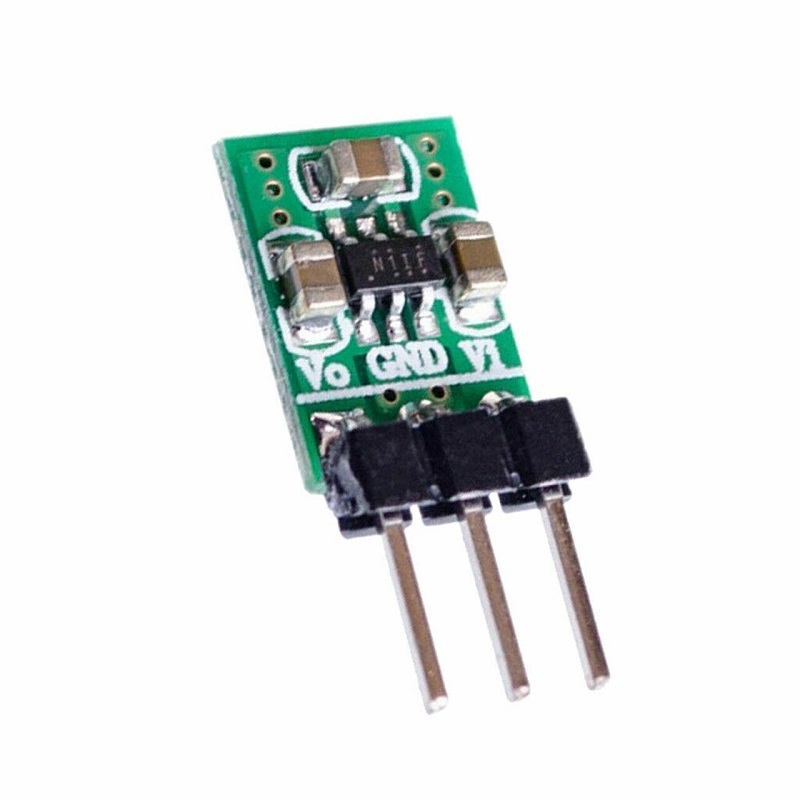

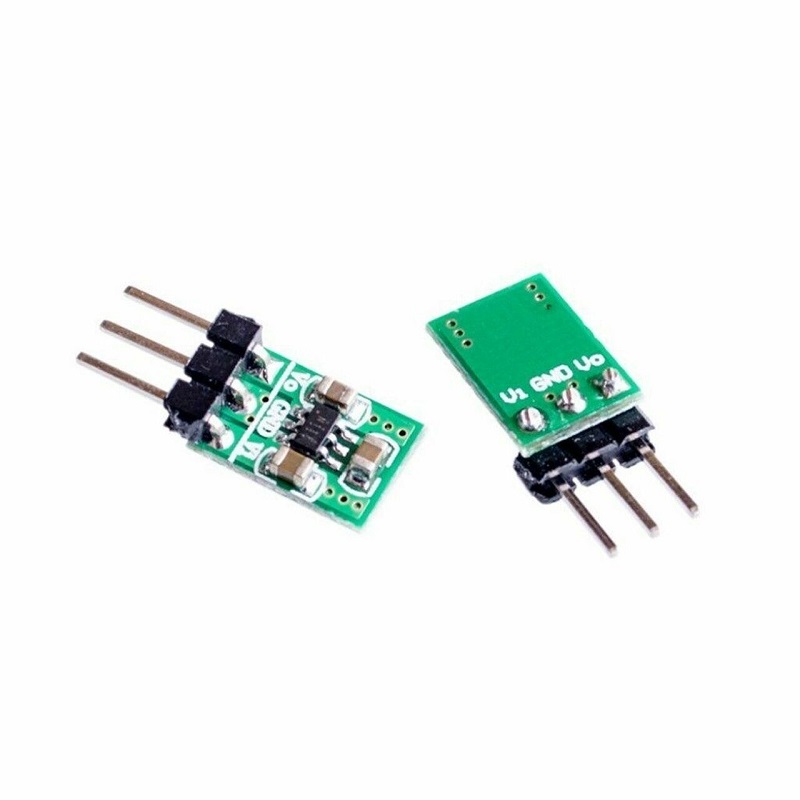

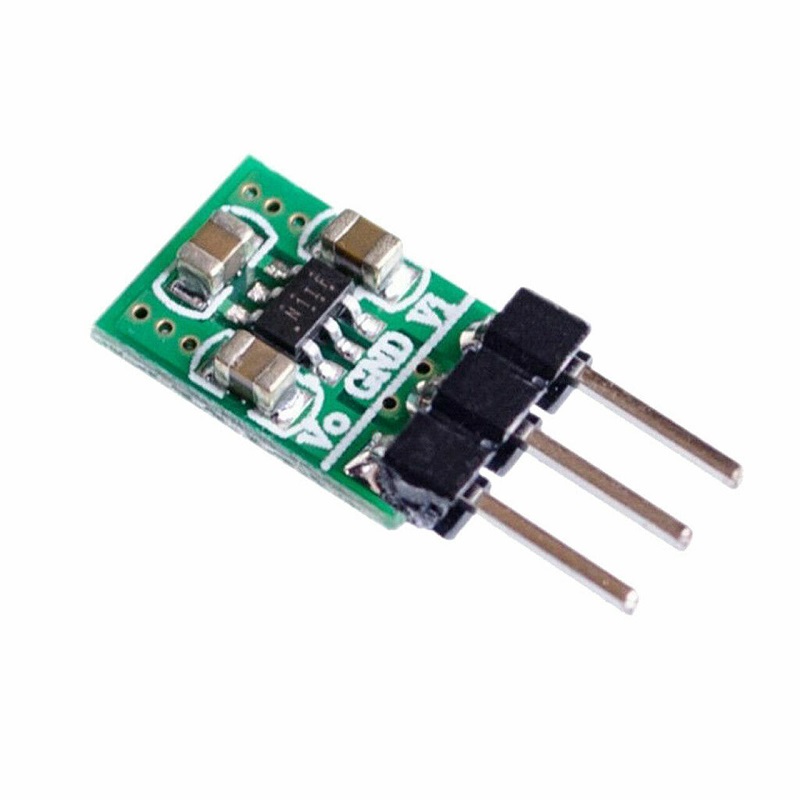

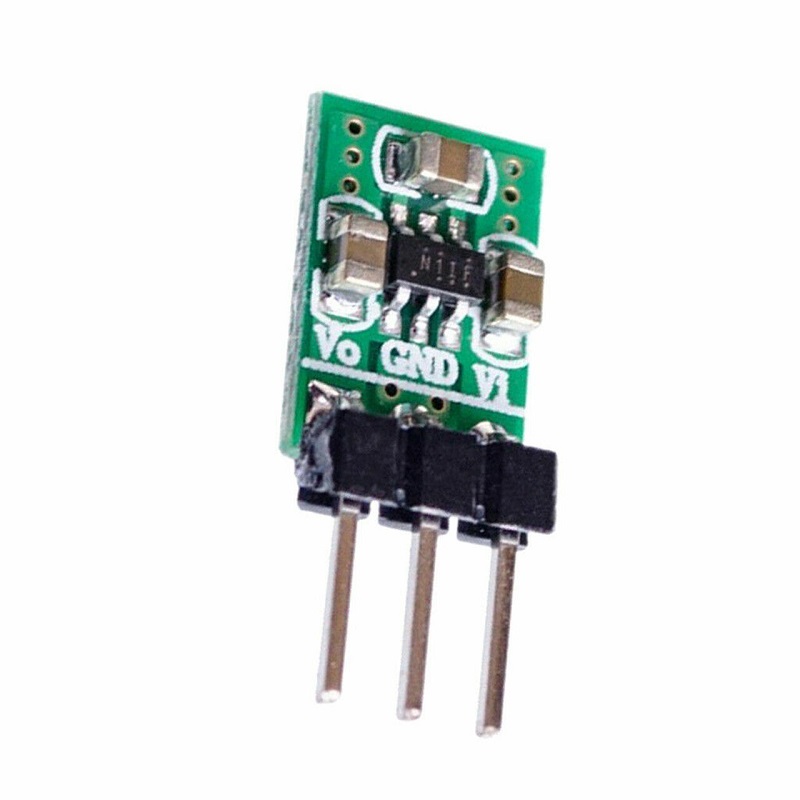

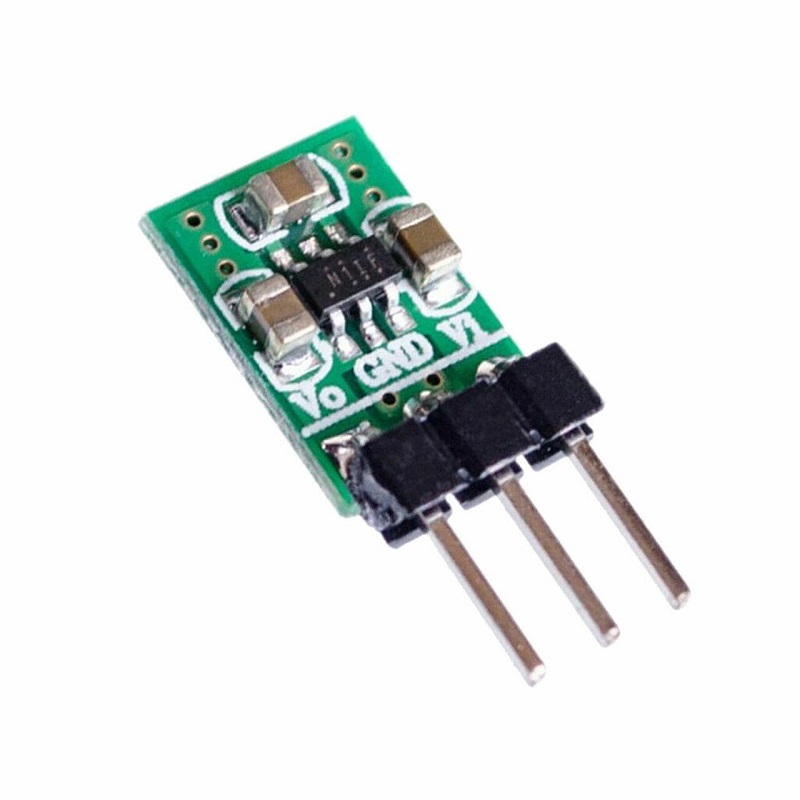

DC-DC 1.8V-5V to 3.3V, Booster and Buck Power, Modules

SKU: 1121292
In Stock

52.00

  1. Input Voltage: 1.5V to 5V DC
  2. Output Voltage: 3.3V DC

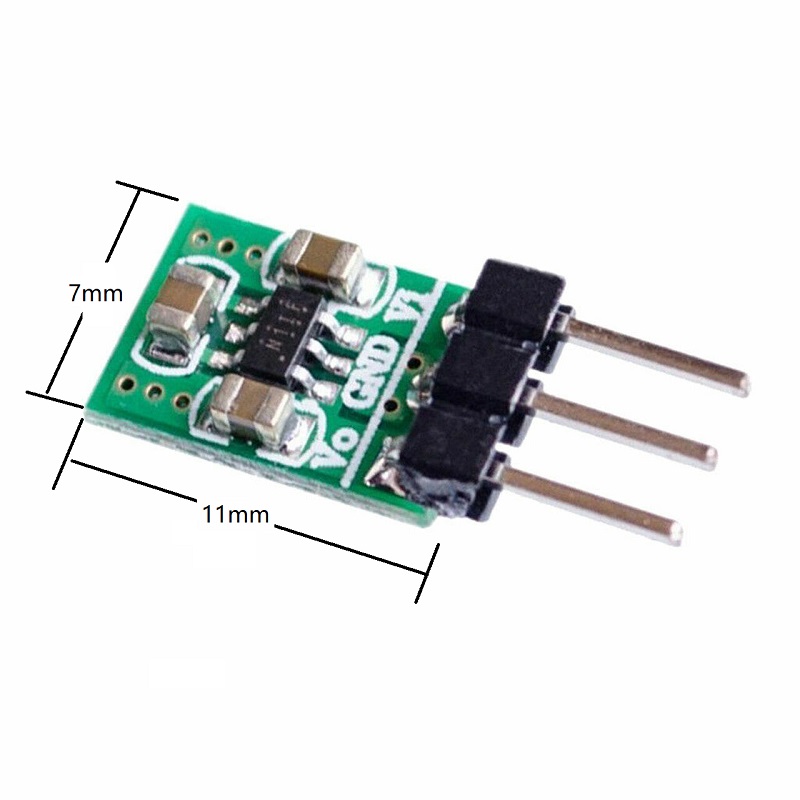

  3. Dimensions (L x W)mm:  11  x 7
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

Is your project board going to require a 3,3V consistent power supply? Here is the most cost-effective answer to your problem…! Buy this DC-DC 1.8V-5V to 3.3V Booster and Buck Power Modules in a small size (11 x 7 mm) that provides a consistent 3.3V DC output with an input supply range of 1.8 to 5 VDC. The buck-boost module steps up the voltage when the input is less than 3V and steps down the voltage when the input is greater than 3.3V, hence the name.

Circuit Diagram:


Features and Specifications:

  1. Input Voltage: 1.5V to 5V DC
  2. Output Voltage: 3.3V DC
  3. Dimensions (L x W)mm:  11  x 7

Package Includes:

1 x DC-DC 1.8V-5V to 3.3V Boost and Buck Power Module
