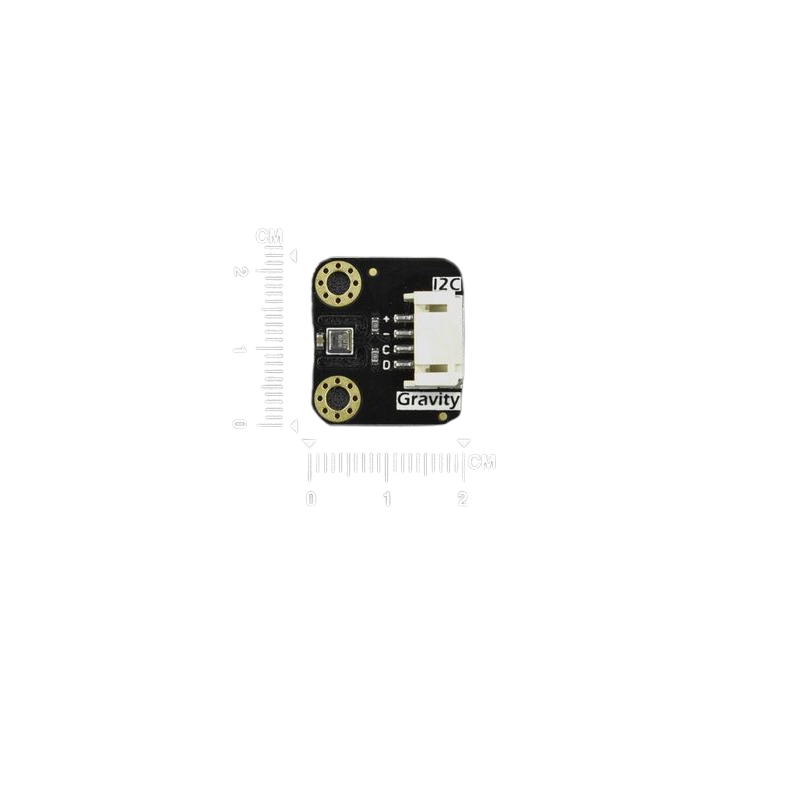

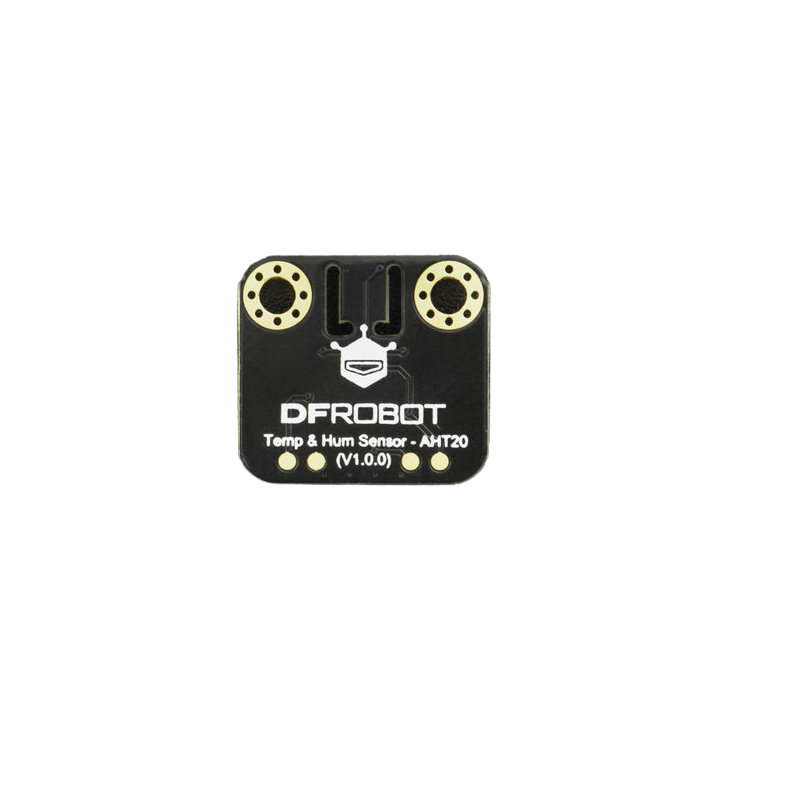

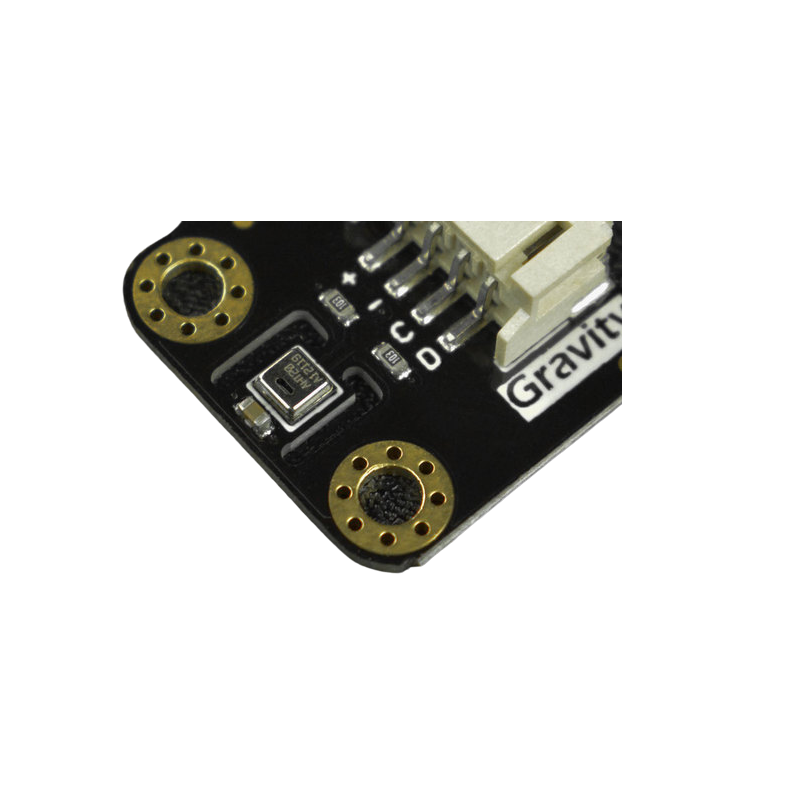

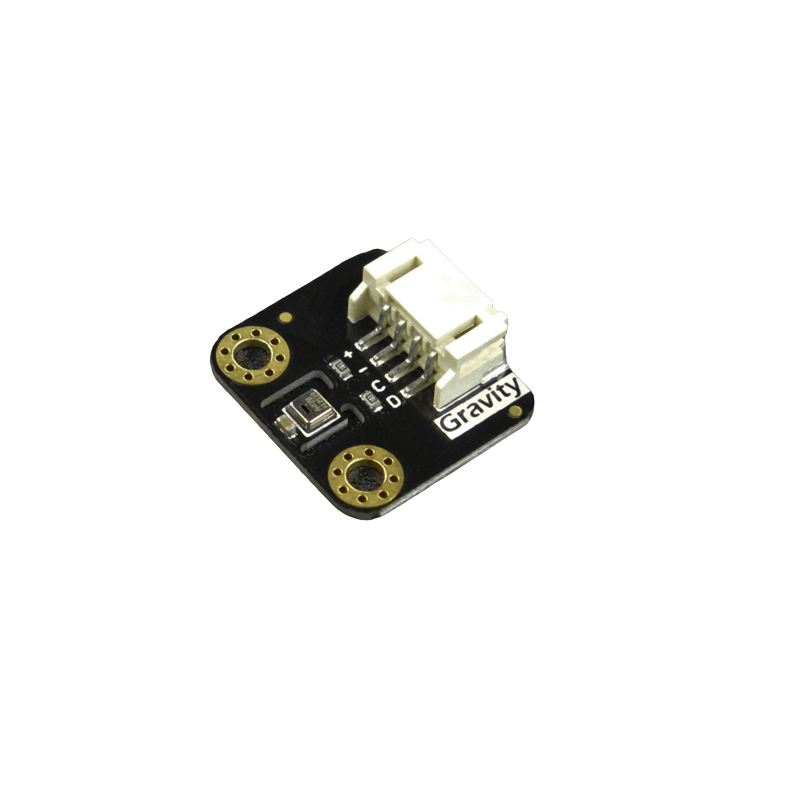

DFRobot Gravity: AHT20 Temperature and Humidity Sensor
DFRobot Gravity: AHT20 Temperature and Humidity Sensor
DFRobot Gravity: AHT20 Temperature and Humidity Sensor
DFRobot Gravity: AHT20 Temperature and Humidity Sensor
DFRobot Gravity: AHT20 Temperature and Humidity Sensor

DFRobot Gravity: AHT20 Temperature and Humidity Sensor

SKU: rz2439998
In Stock

₹499.00

  1. Brand: DFRobot
  2. Product: Gravity AHT20 Temperature and Humidity Sensor
  3. Operating Voltage: DC 2V-5V
  4. Output Signal: I2C
  5. I2C Address: 0x38
  6. Dimension: 30mm×20.5mm/1.18×0.81″
Order on WhatsApp
In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity sensor element. It features a standard I2C interface and a wide voltage supply of 2V-5V. And with the simple peripheral circuit, it performs stably even in harsh environments in the measuring range of -40℃ ~ ＋85℃.

This sensor can be widely used for measuring the environmental temperature and humidity of home electronic equipment, the temperature and humidity of automobiles, and so on.

Features:

  1. Digital output, I2C interface
  2. Excellent long-term stability
  3. Fast response, strong anti-interference, and adaptability
  4. Gravity interface, simple wiring, no soldering required

Specifications:

  1. Operating Voltage: DC2V-5V
  2. Output Signal: I2C
  3. I2C Address: 0x38
  4. Dimension: 30mm×20.5mm/1.18×0.81″
  5. Resolution: 0.024 %RH
  6. Accuracy Error: ±2 %RH
  7. Repeatability: ±0.1 %RH
  8. Hysteresis: ±1 %RH
  9. Non-linear: ±0.1 %RH
  10. Response Time: 8S
  11. Operating Range: 0~100 %RH
  12. Long-term Drift: ＜0.5 %RH/yr
  13. TEMP Resolution: 0.01℃
  14. TEMP Accuracy Error: ±0.3℃
  15. TEMP Repeatability: ±0.1℃
  16. Hysteresis: ±0.1℃
  17. Response Time: minimum 5S, maximum 30S
  18. Operating Range: -40℃~85℃
  19. Long-term Drift: ＜0.04℃/yr

Package Includes:

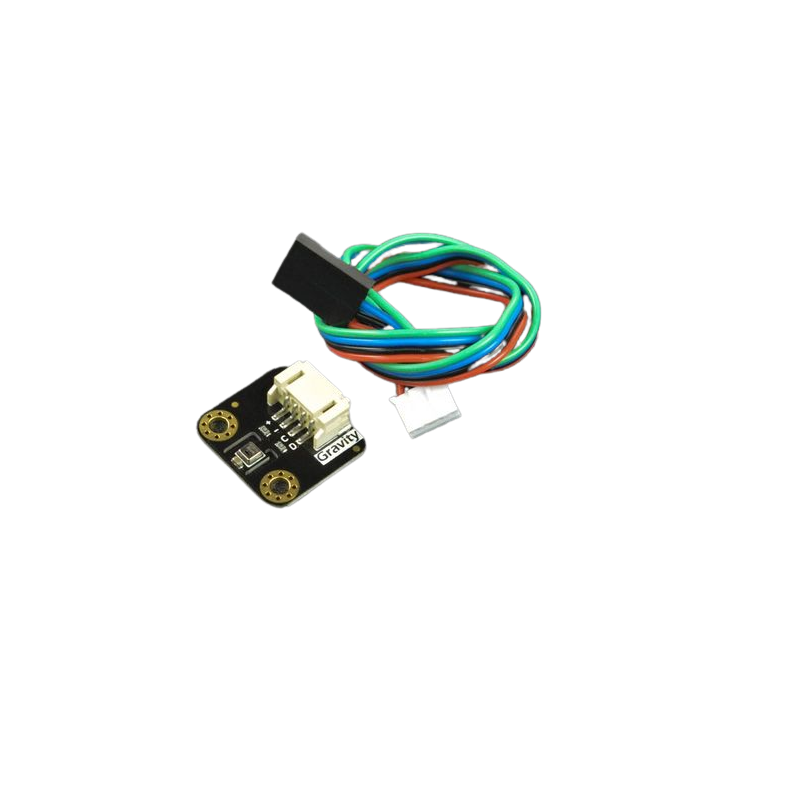

1 x DFRobot Gravity AHT20 Temperature and Humidity Sensor
