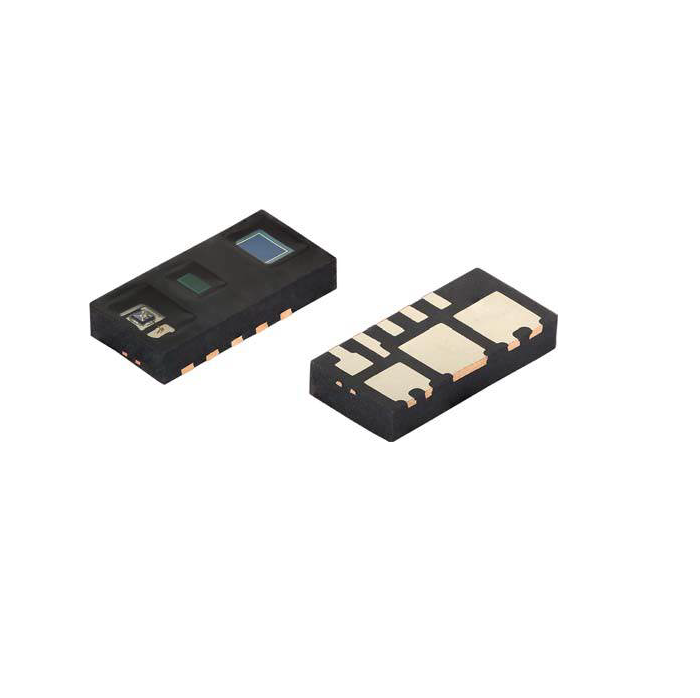

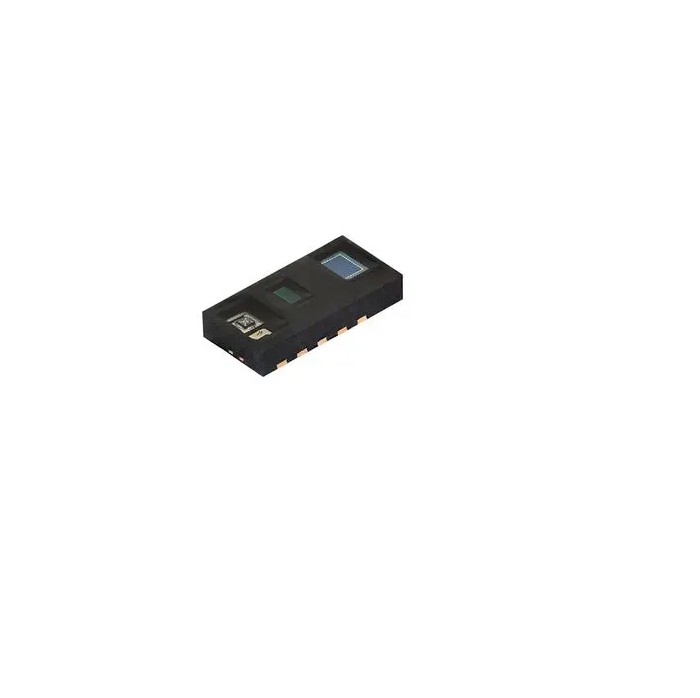

VISHAY VCNL4020C-GS08 BIOSENSOR, I2C, -25 TO 85 DEG C, SMD

15 People watching this product now!

SKU: rz2439969 Category: Biometric/ECG/EMG Sensor

Description

The VCNL4020C is a fully integrated biosensor and ambient light sensor. Fully integrated means that the infrared emitter is included in the package. It has a 16-bit of resolution. It includes a signal processing IC and features a standard I2C communication interface. It features an interrupt function. Built-in infrared emitter and broader sensitivity. photodiode allows to also work with green and red LEDs 16-bit effective resolution ensures excellent cross talk immunity. Programmable LED drive current from 10 mA to 200 mA in
10 mA steps Excellent ambient light suppression through signal modulation

Applications

Wearables
Health monitoring
Pulse oximetry

Features:

Package type: surface-mount
Package form: SMD
Dimensions (L x W x H in mm): 4.90 x 2.40 x 0.83
Communication via I2C interface
Interrupt function

Package Includes:

1 x VISHAY VCNL 4020C-GS08 BIOSENSOR

Additional information

Operating Voltage Range (V)	2.5 to 3.6
I2C Bus Voltage Range (V)	1.7 to 5
LED Pulse Current (1) (mA)	10 to 200
Ambientt Light Range (lx)	0.25 to 16 383
Spectral Bandwidth Range λ0.5 (nm)	550 to 970
Output Code	16 bit , I2C
ADC Resolution Biosensor / Ambient Light Sensor	16 bit / 16 bit
