DFRobot Gravity Heart Rate Monitor Sensor for Arduino

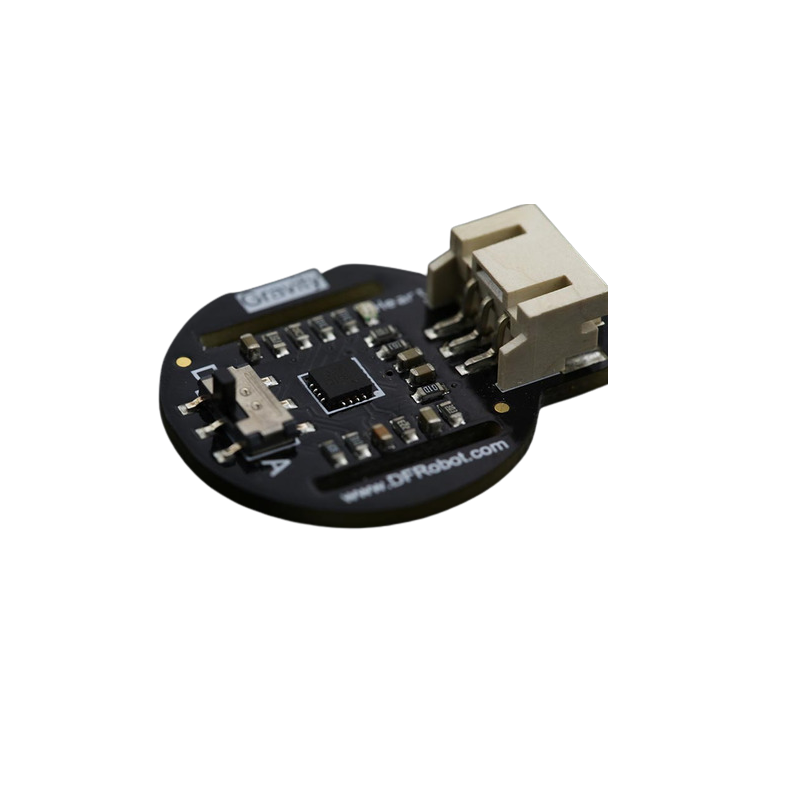

The DFRobot heart rate sensor is a thumb-sized heart rate monitor designed for Arduino microcontroller

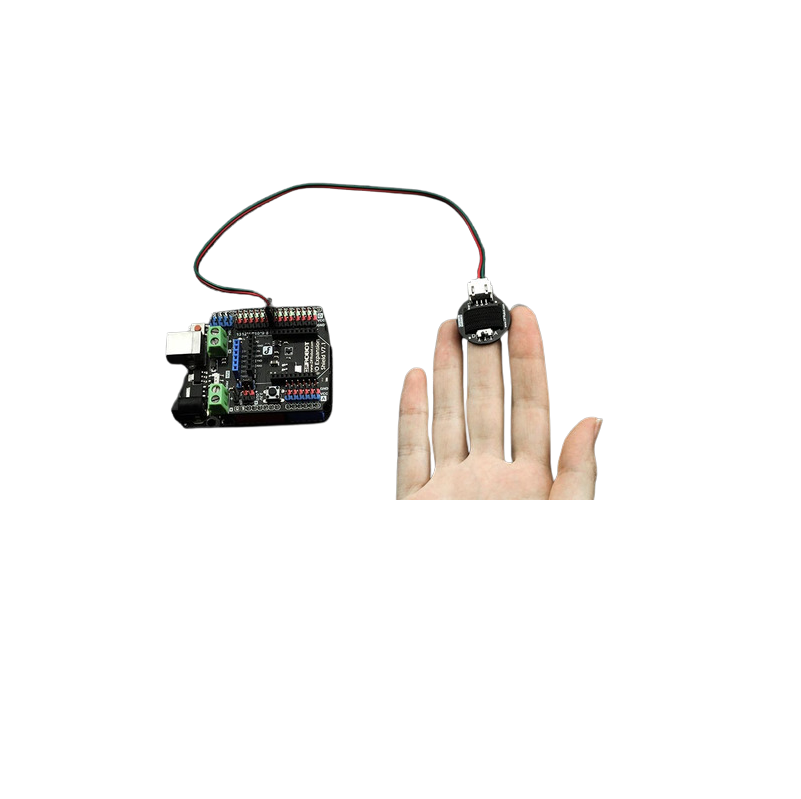

This heart rate monitor sensor is a pulse sensor that is developed based on PPG techniques. This is a simple and low-cost optical technique that can be used to detect blood volume changes in the microvascular bed of tissues. It is relatively easy to detect the pulsatile component of the cardiac cycle according to this theory. The sensor has two holes that you can use to attach to your belt. You can wrap it on your finger, wrist, earlobe, or other areas where it has contact with your skin.

A gravityInterface is adapted to allow plug & play to ease the barrier of usage.  The io sensor shield is the best option to connect this heart rate sensor with your Arduino or other microcontrollers. Besides, this sensor can also be compatible with raspberry pie, intel Edison, joule, and curie by means of 3.3V Input Voltage.

Features:

1. it is based on PPG techniques
2. It is relatively easy to detect the pulsatile component of the cardiac cycle
3. this sensor can also be compatible with raspberry pie, intel Edison, joule

Specifications:

1. Input Voltage (Vin): 3.3 – 6V (5V recommended)
2. Output Voltage: 0 – Vin (Analog), 0/ Vin (Digital)
3. Operating current: <10mA
4. Dimension: 28 x 24(mm), 1.102″ x 0.945″(in)
5. Interface Type: PH2.0-3P

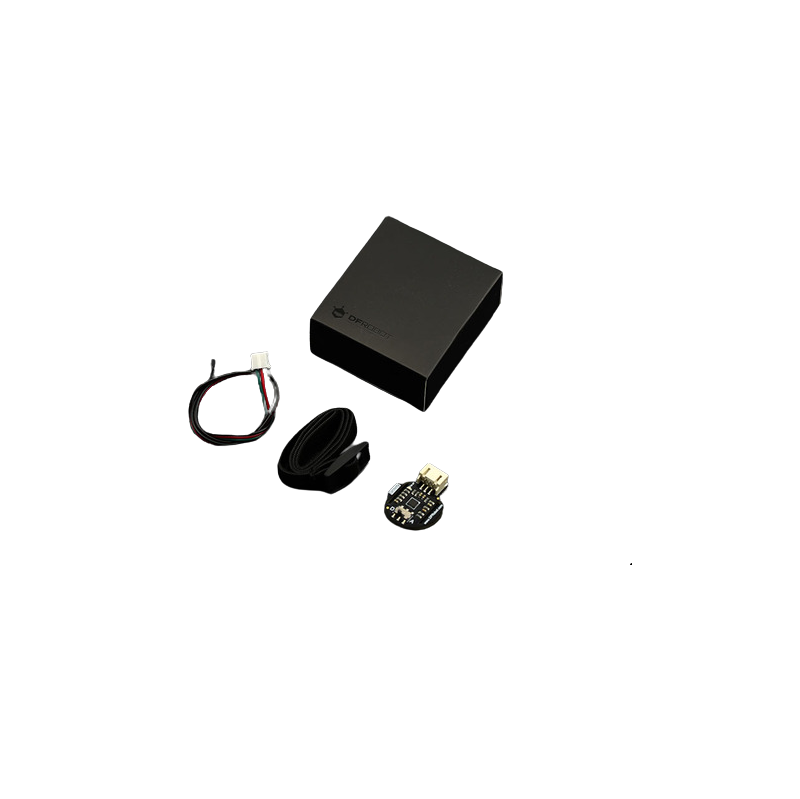

Package includes:

1 x DFRobot Gravity Heart Rate Monitor Sensor
