DFRobot Gravity PAJ7620U2 Gesture Sensor

19 People watching this product now!

SKU: rz24310128 Category: Biometric/ECG/EMG Sensor

Description

Build an awesome interactive project with this PAJ7620U2 gesture sensor! It is an interactive sensor with 3D gesture recognition that can recognize 13 gestures at most within 20cm. The sensor offers stable performance, fast response and high accuracy, which makes it an excellent choice for interactive applications like non-contact remote controllers, interactive robot, gesture-based game devices, smart lighting management, and so on.

There are two recognition modes for this sensor: fast mode (9 gestures) and slow mode (13 gestures). In fast detection mode, the sensor can recognize 9 gestures: move left, right, up, down, forward, backward, clockwise, counter-clockwise, wave. The slow mode can recognize 4 expanded gestures besides the 9 basic ones: slowly move left and right, slowly move up and down, slowly move forward and backward, move randomly. The unit sampling time can be defined by users in this mode. Moreover, users can customize their own gestures if necessary.

Features:

Supports for 13 gestures recognition
Supports 2 gesture recognition modes
Supports user-defined gestures
Low power consumption
I2C communication

Specifications:

Operating Voltage: 3.3V~5.5 V
Operating Current: 3.5mA
Communication Port: Gravity-I2C 4Pin
I2C Address: 0x73
Operating Temperature Range: -40℃~85℃
Detection Distance: 3cm-20cm
Update Rate: 120Hz
Ambient Light Immunity: <100k Lux
Product Dimension: 30*22mm / 1.18*0.87inches

Package Includes:

1 x DFRobot Gravity PAJ7620U2 Gesture Sensor

Reviews (0)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping & Delivery

Shipping and Delivery Policy

1. Shipping Process:

Orders are processed within 1-2 business days after payment confirmation.
Delivery time varies based on location and selected shipping method, typically ranging between 3-7 business days.
We partner with trusted courier services to ensure timely and safe delivery.

2. Shipping Charges:

Shipping charges are calculated at checkout based on the delivery location and package weight.
Free shipping may be available for orders above a specified amount, as mentioned on our website.

3. Order Tracking:

Once your order is shipped, you will receive a tracking ID via email or SMS to monitor the shipment status.

4. Delivery Address:

Please provide a complete and accurate delivery address to avoid delays.
We are not responsible for delivery failures due to incorrect or incomplete address details provided by the customer.

5. Delivery Issues:

If a package is delayed, lost, or damaged during transit, please contact our support team immediately.
Claims for lost or damaged items must be reported within 48 hours of delivery.

6. No Return Policy for Opened/Soldered Products:

We do not accept returns for products that have been opened, used, or soldered.
Ensure you verify product compatibility before purchase, as returns will only be accepted for unopened and unused items in their original packaging.

7. Refund Policy:

Refunds will be issued only for canceled orders before shipment or wrong/damaged items received (subject to investigation).
No refunds or replacements for products that have been tampered with, soldered, or physically damaged by the customer.

DFRobot Gravity Capacitive Fingerprint Sensor

DFRobot Gravity Capacitive Fingerprint Sensor

Out of stock

₹3,043.91 – ₹3,458.99 (Including tax)

SKU: rz24322060

Operating Voltage(V)	3.3 to 5
Operating Current (A)	<60mA
Interface Type	I2C
Storage Capacity	80 fingerprints
Verification Time	300~400ms
Pixel Resolution	508dpi
Number of Pixels	160×160
Fingerprint Detection Area(mm)	8×8
Working Temperature Range (°C)	-40 to 60
Body Diameter (mm)	21
Height (mm)	5

DFRobot Gravity Gesture & Touch Sensor

Out of stock

₹1,610.93 – ₹1,830.59 (Including tax)

SKU: rz24310146

DFRobot Gravity: Analog EMG Sensor by OYMotion

Out of stock

₹6,292.03 – ₹7,150.03 (Including tax)

SKU: rz24310157

DFRobot Gravity: Analog Heart Rate Monitor Sensor (ECG) For Arduino

Out of stock

₹2,506.55 – ₹2,848.35 (Including tax)

SKU: rz24310066

Input Voltage (V)	3.3-6V (5V recommended)
Output Voltage(V)	0-3.3V
Interface	Analog
Operating Current (A)	<10mA
Dimension	35 x 22(mm) , 1.378″ x 0.866″(in)
Interface Type	PH2.0-3P

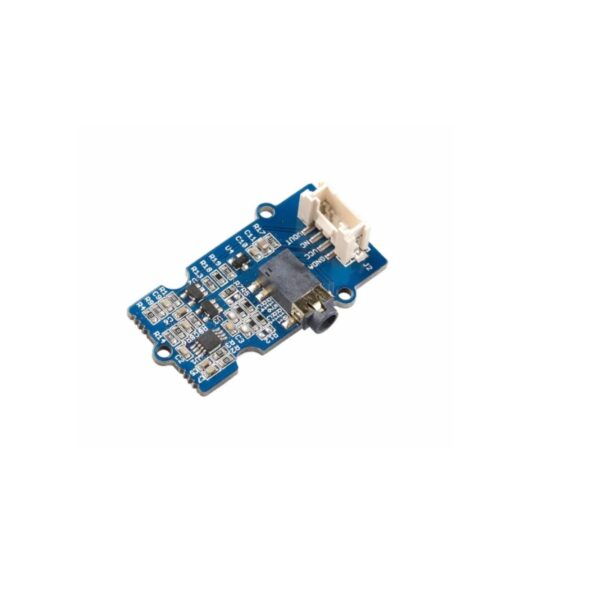

SeeedStudio Grove EMG Detector

Out of stock

₹4,178.37 – ₹4,748.15 (Including tax)

SKU: rz24319813

Connector	3.5mm
Input Supply Range (VDC)	3.3V-5V

VISHAY VCNL4020C-GS08 BIOSENSOR, I2C, -25 TO 85 DEG C, SMD

Out of stock

₹333.17 – ₹378.61 (Including tax)

SKU: rz2439969

Operating Voltage Range (V)	2.5 to 3.6
I2C Bus Voltage Range (V)	1.7 to 5
LED Pulse Current (1) (mA)	10 to 200
Ambientt Light Range (lx)	0.25 to 16 383
Spectral Bandwidth Range λ0.5 (nm)	550 to 970
Output Code	16 bit , I2C
ADC Resolution Biosensor / Ambient Light Sensor	16 bit / 16 bit

Waveshare Barcode Scanner Module, 1D/2D Codes Reader

Out of stock

₹4,058.95 – ₹4,612.45 (Including tax)

SKU: rz24314594

Operating Voltage(V)	5V
Operating Current (A)	135mA (scanning) , 58mA (standby) , 2mA (sleep)
Operating Temperature (°C)	0°C~60°C
Operating humidity	5%~95% (Non-condensing)
Communication Interface	UART , USB
Decodes 1D codes	Codebar , Code 11 , Code 39/Code 93 , UPC/EAN , Code 128/EAN128 , Interleaved 2 of 5 , Matrix 2 of 5 , MSI Code , Industrial 2 of 5 , GS1 Databar(RSS)
Decodes 2D codes	QR code , Data Matrix , PDF417
Light Source	white
Scan angle	roll 360° , skew ±65° , pitch ±60°
Field of View	28° (horizontal) , 21.5° (vertical)
Dimensional Accuracy (mm)	53.3mm x 21.4mm

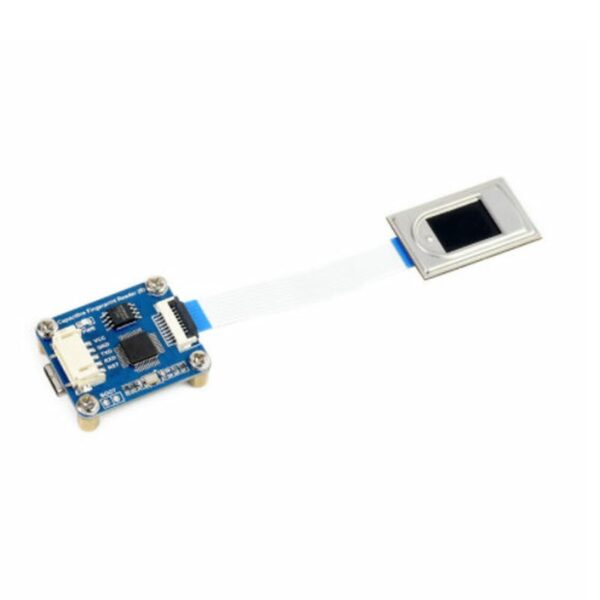

Waveshare High precision Capacitive Fingerprint Reader (B), UART/USB dual ports
