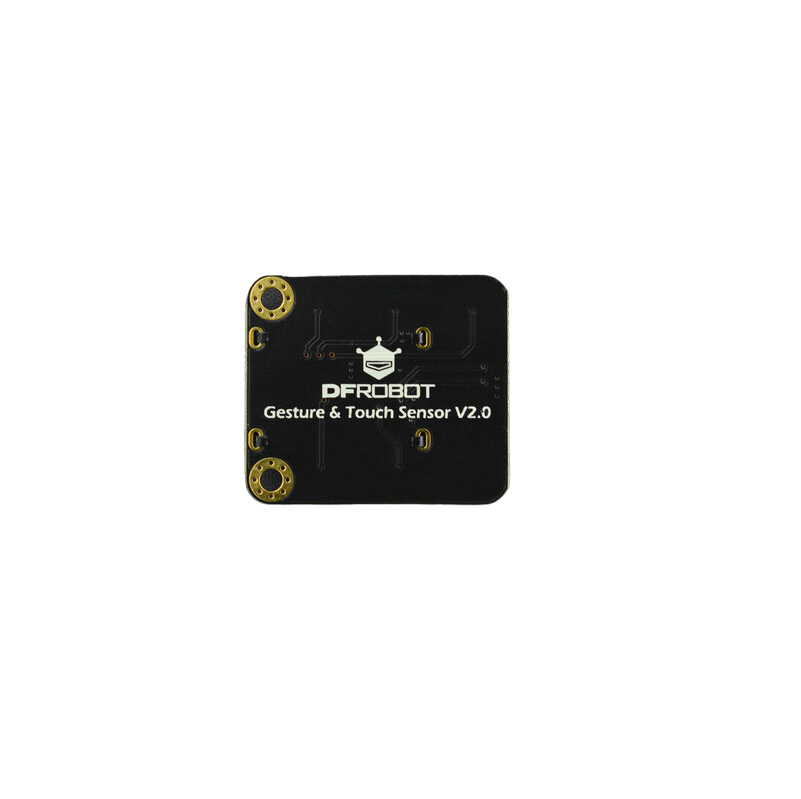

DFRobot Gravity Gesture & Touch Sensor

This sensor module integrates gesture recognition and touch detects functions in one piece, and provides an adjustable detection range within 0~30cm. When connected to your microcontroller, it can detect a 5-way touch signal and 7 kinds of gestures: move left, move right, move forward, move backward, pull up, pull down, pull, and remove. Besides, the sensor is also equipped with the function of auto-sleep and waking up. The module comes with the gesture recognition algorithm and provides simple and reliable data output. Use the sensor to directly communicate with upper computer or micro-controllers like Arduino and Raspberry Pi via serial port

The outer shield for the sensor retains the advantages of the Gravity series as well as makes the sensor more durable. This sensor can be used to make smart lamps, DIY intelligent cars, or used in interactive projects requiring gesture recognition.

Features:

1. Onboard 5-way touchpad
2. It provides an adjustable detection range within 0~30cm
3. It can detect 5-way touch signals and 7 kinds of gestures
4. This sensor can be used to make the smart lamp

Specifications:

1. Operating Voltage: 3.3V~5V
2. Operating Current: 56.3mA
3. Current in Sleep Mode: 40uA
4. Communication: UART
5. Dimension: 36*32mm/1.42*1.26”

Package Includes:

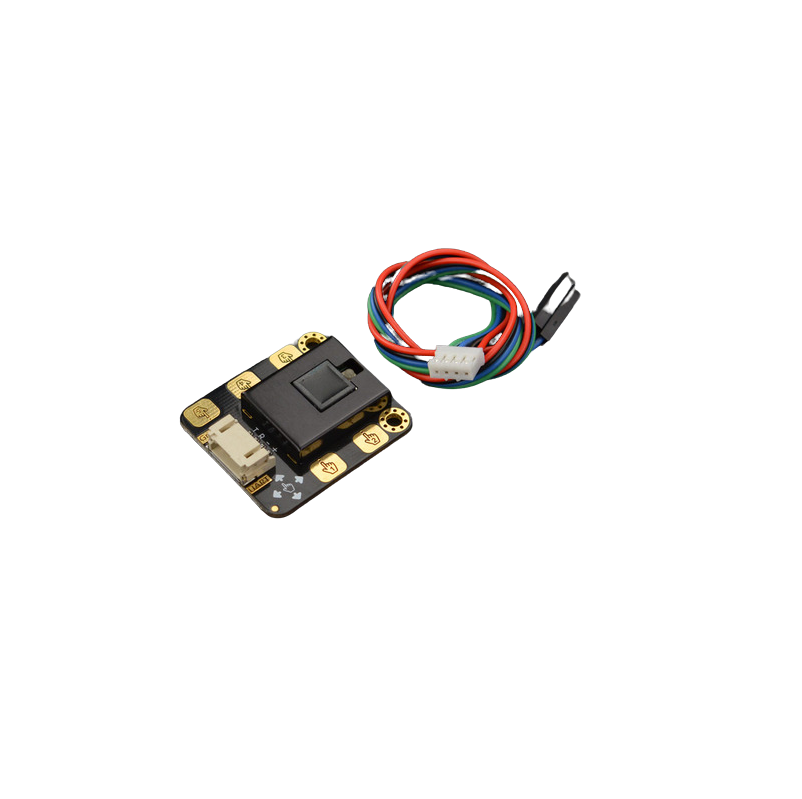

1 x DFRobot Gravity Gesture & Touch Sensor
