DFRobot Gravity Capacitive Fingerprint Sensor

SKU: 1073426
In Stock

2,549.00

  1. Operating Voltage: 3.3V-5V
  2. Operating Current: <60mA
  3. Communication: I2C
  4. Storage Capacity: 80 fingerprints
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

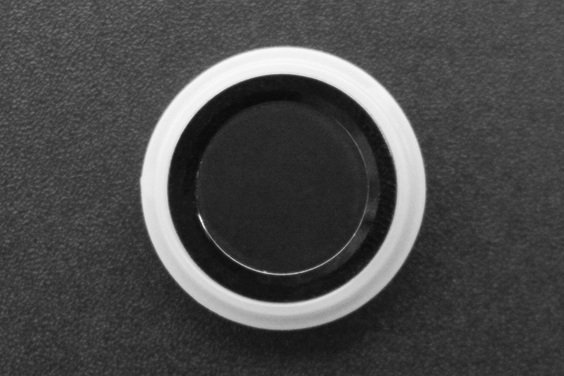

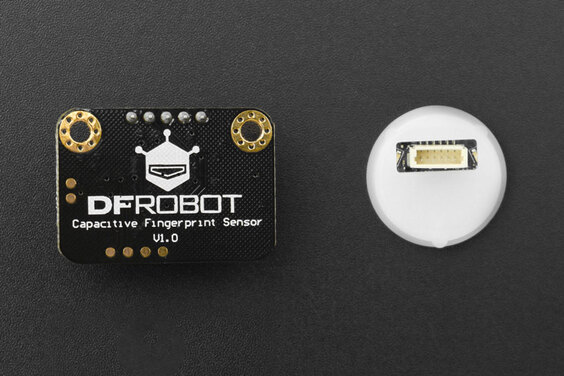

This is a capacitive fingerprint sensor with fingerprint collecting, processing, storing, and comparison integrated all-in-one. Taking ID809 high-performance processor and semiconductor fingerprint sensor as the core, the sensor is equipped with built-in IDfinger6.0 fingerprint algorithms that enable it to complete all the fingerprint recognition independently. When working with our Arduino Library, the module is able to realize functions like fingerprint registration, fingerprint deletion, etc. Also, we offer upper computer software to help users conveniently operate this sensor.

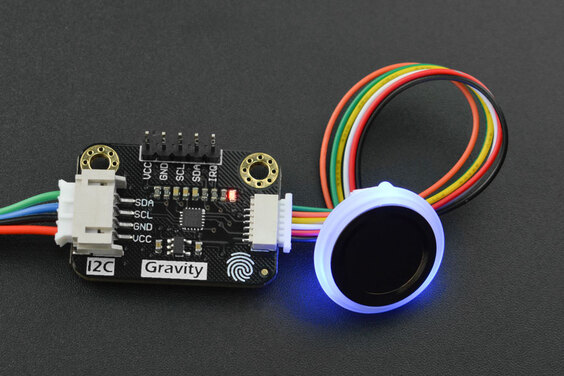

This fingerprint sensor comes with round breathing LEDs and has a simple structure, small size, and delicate appearance. The sensor offers fast recognition speed and high security.

Compared with SEN0348 Capacitive Fingerprint Sensor/Scanner, this module adopts Gravity interfaces that make it easier to connect. In addition, it is 3.3V and 5V compliant and supports I2C communication, which is very suitable for working with controllers like UNO, micro: bit, and so on.

Applications:
  • Fingerprint door-lock
  • Drawer Lock
  • Identity Recognition
  • Authorization

Features:

  1. 360-degree fingerprint entry and matching
  2. Self-learning function
  3. CNC metal ring, plus aperture

Useful Links:

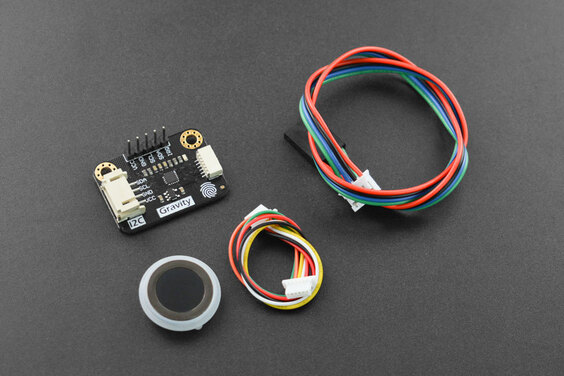

Package Includes:

1 x Gravity: Capacitive Fingerprint Scanner/Sensor

1 x Adapter

1 x SH1.0 6P Wire

1 x Gravity-4P I2C/UART Sensor Cable

Additional information

Operating Voltage(V)

3.3 to 5

Operating Current (A)

<60mA

Interface Type

I2C

Storage Capacity

80 fingerprints

Verification Time

300~400ms

Pixel Resolution

508dpi

Number of Pixels

160×160

Fingerprint Detection Area(mm)

8×8

Working Temperature Range (°C)

-40 to 60

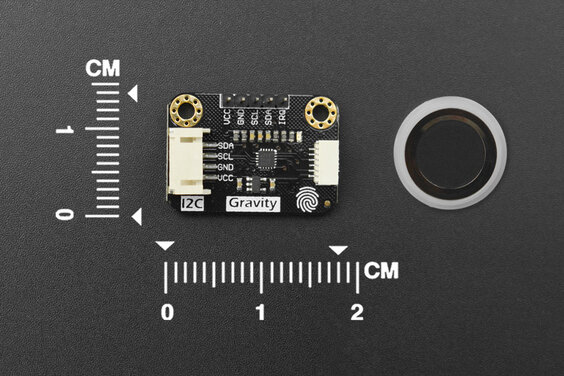

Body Diameter (mm)

21

Height (mm)

5
