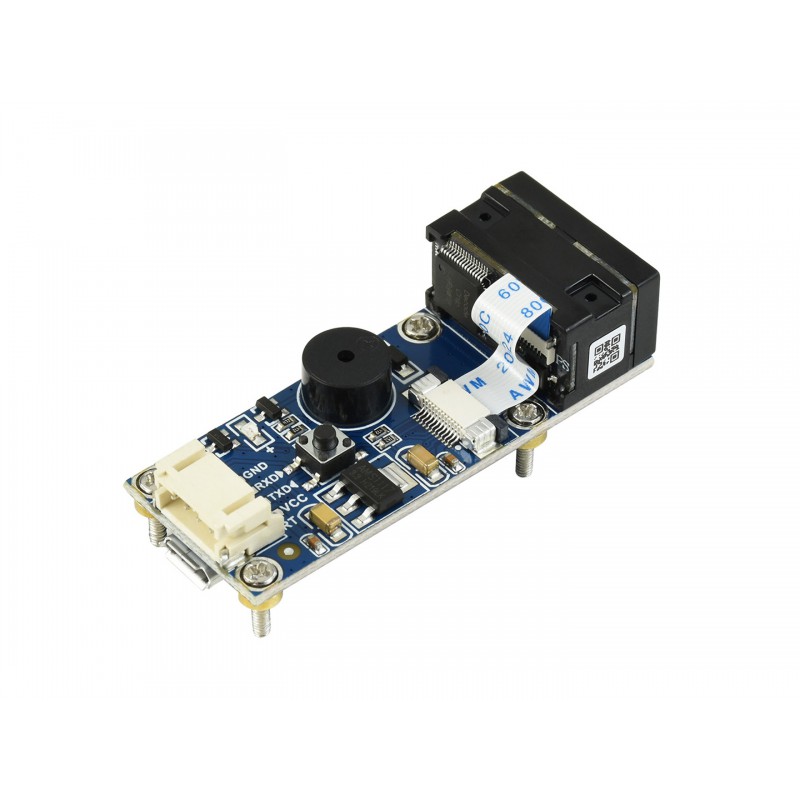

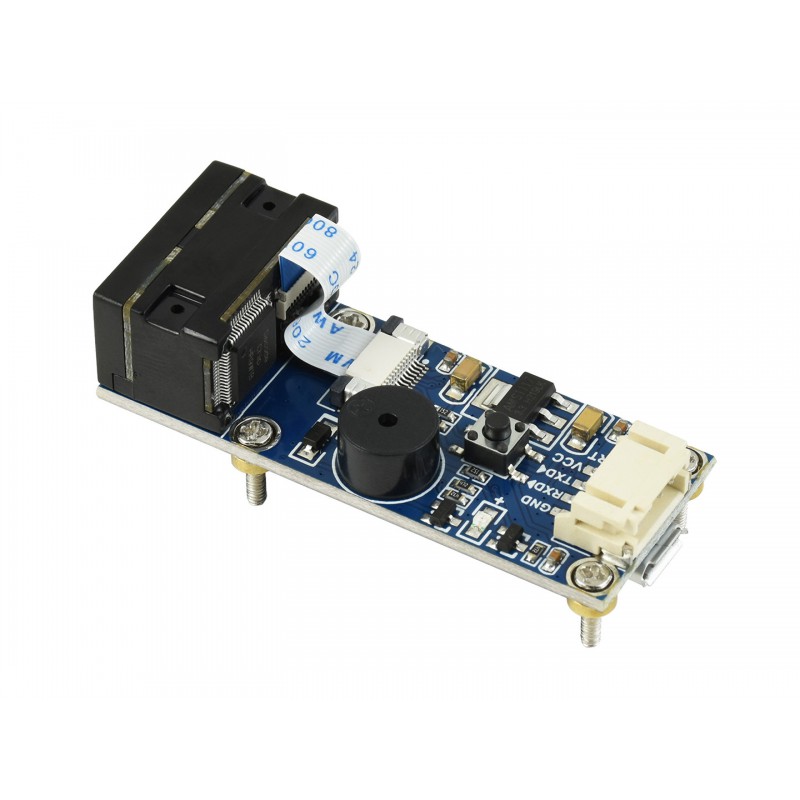

Waveshare Barcode Scanner Module, 1D/2D Codes Reader

SKU: rz24314594
In Stock


  1. Operating voltage: 5V
  2. Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)
  3. Operating temperature: 0°C~60°C
  4. Operating humidity: 5%~95% (Non-condensing)
  5. Communication interface: UART, USB
In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free


This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.

Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.


  1. Easy to use, requires no knowledges of image recognition
  2. Decodes various common 1D/2D codes such as Barcode, QR code etc.
  3. Onboard micro USB and UART serial port, allows to connect with computers or embedded devices
  4. Configurable via scanning ‘configuration code’
  5. Onboard light source, works in the dark

Package Includes:

1 x Barcode Scanner Module
1 x USB type A plug to micro B plug cable
1 x PH2.0 4Pin

Additional information

Operating Voltage(V)


Operating Current (A)

135mA (scanning), 58mA (standby), 2mA (sleep)

Operating Temperature (°C)


Operating humidity

5%~95% (Non-condensing)

Communication Interface


Decodes 1D codes

Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)

Decodes 2D codes

QR code, Data Matrix, PDF417

Light Source


Scan angle

roll 360°, skew ±65°, pitch ±60°

Field of View

28° (horizontal), 21.5° (vertical)

Dimensional Accuracy (mm)

53.3mm x 21.4mm
