Description

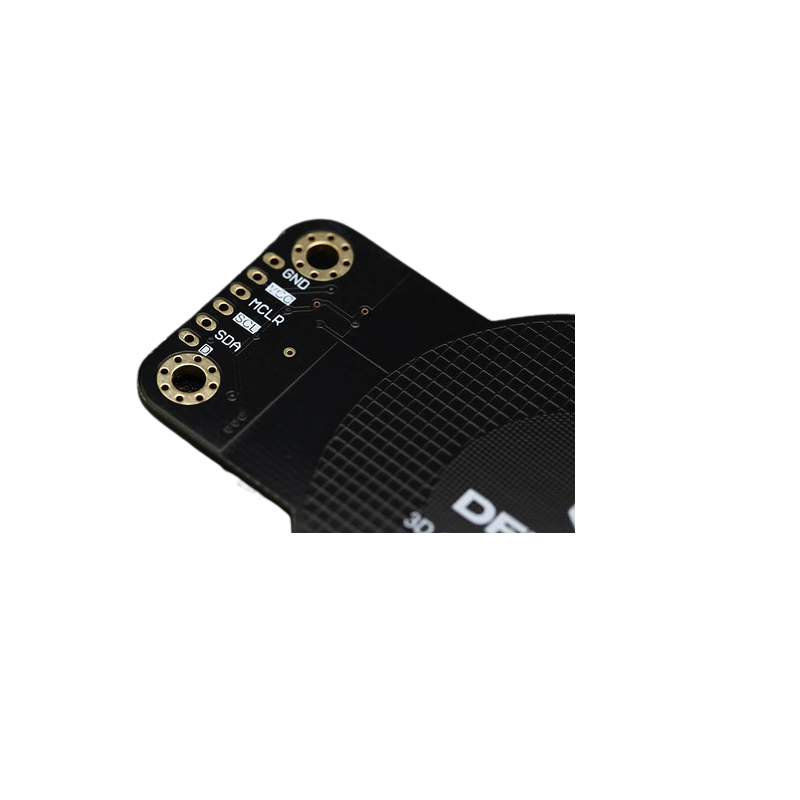

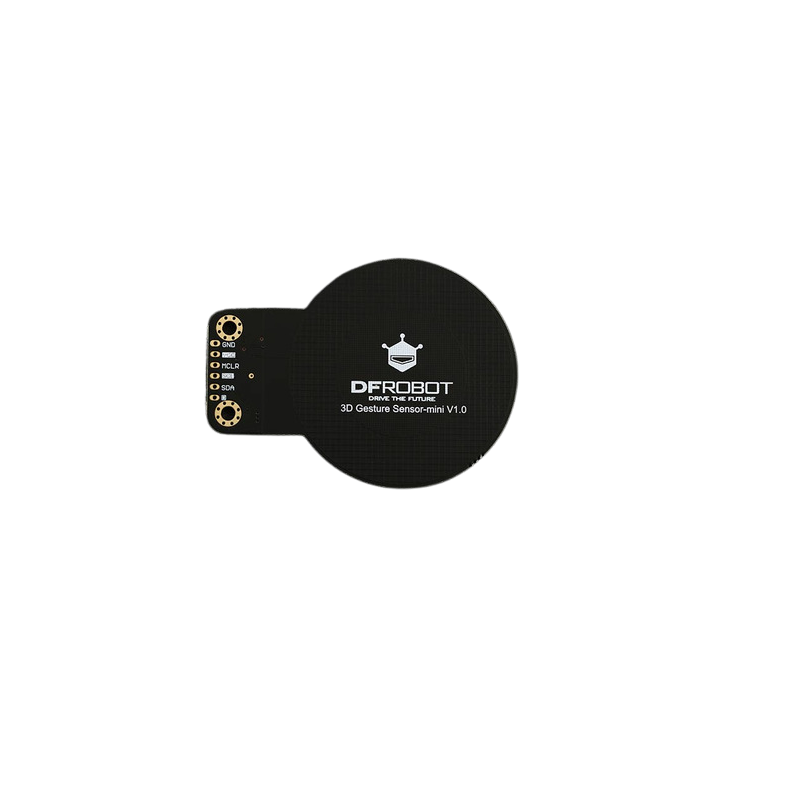

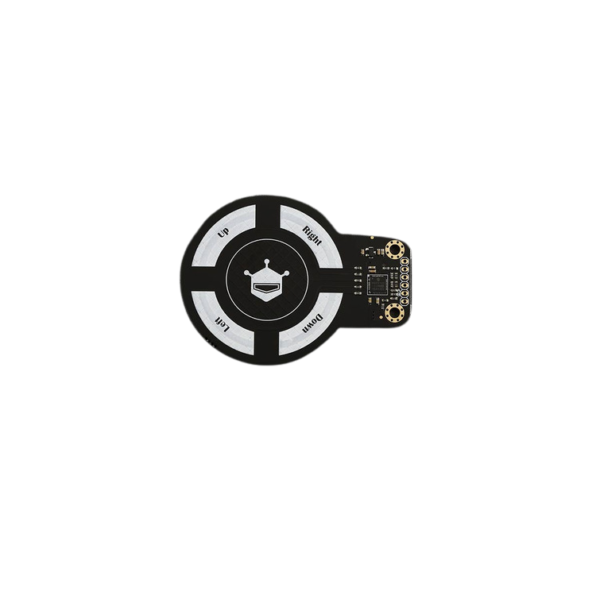

The DFRobot 3D gesture sensor is an Interactive sensor that integrates 3D gesture recognition and motion tracking. This gesture sensor can be used to detect clockwise/counterclockwise rotation and movement directions.

The gesture sensor is designed based on Microchip patent GestIC® technology, using electric near field sensing technology, including 3D gesture input sensing system and advanced 3D signal processing unit. The effective detection range is 0-10cm. This gesture sensor can be applied to various interactive projects.

Features:

1. It integrates 3D gesture recognition and motion tracking
2. It has advanced 3D signal processing unit
3. this sensor can be used to detect clockwise/counterclockwise rotation and movement directions
4. It is designed based on Microchip patent GestIC® technology with electric near-field sensing technology

Specifications:

1. Operating Voltage: 3.3 – 5V
2. Interface Type: I2C
3. I2C Address: 0x42
4. Gesture Detection Range: 5cm
5. Distance Induction Range: 10cm
6. Dimensions : 72 x 54 mm / 2.83 x 2.12″
7. Operating Temperature: – 20 ℃ ~ + 85 ℃
8. Spatial Resolution: 150 dpi

Package Includes:

1 x DFRobot 3D Gesture Sensor
