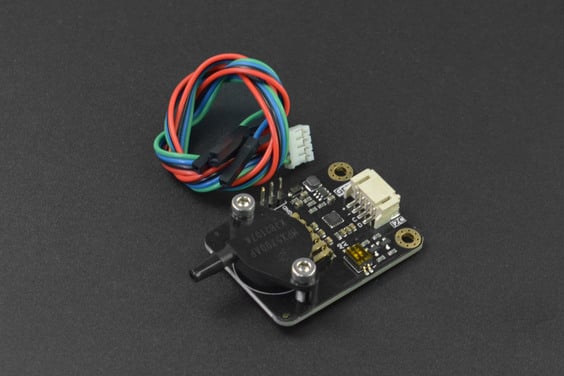

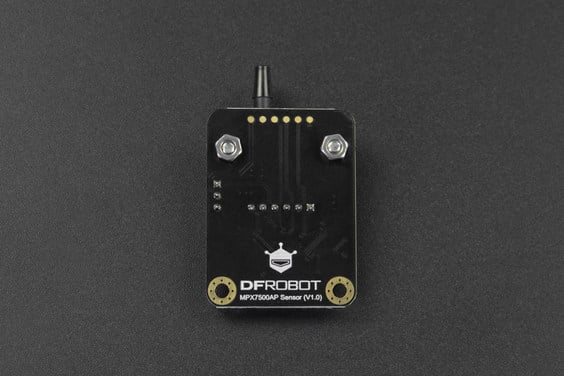

DFRobot Gravity Air Pressure Sensor (15-700kPa) &#8211; I2C &#8211; MPX5700AP

11 People watching this product now!

SKU: rz24315489 Category: Gas and Dust Sensor

Description

This is a Arduino compatible pressure sensor module with a measuring range of 15-700kPa, which supports I2C digital output and can be calibrated according to known pressure values and allows fast and accurate measurement of pressure values in pipelines or other environments. It is suitable for pipeline air pressure detection, natural science experiments and other scenarios This is a Arduino compatible pressure sensor module with a measuring range of 15-700kPa, which supports I2C digital output and can be calibrated according to known pressure values and allows fast and accurate measurement of pressure values in pipelines or other environments.

Applications:

Pipeline air pressure detection.
Natural science experiments.

Features:

Epoxy resin integral components.
Maximum error of 2.5%.
Excellent linear output.
Compatible with 3.3~5.5V main controllers.
Polarity protection.

Specification:

Detection of physical quantities: Air pressure.
Working voltage: 3.3～5.5V DC.
Power dissipation: 0.06W（5)V.
Output signal: I2C output（0~3V）.
Measuring range: 15-700kPa.
Resolution ratio: ≤1kPa.
Working temperature: 0～85℃

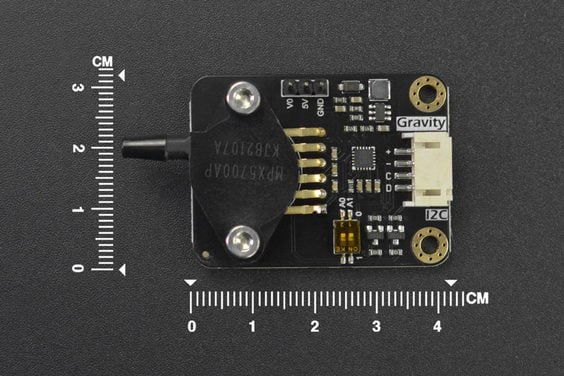

Circuit board size: 32mm*43mm.

Packages includes:

1 x DF Robot Gravity Air Pressure Sensor (15-700kPa) – I2C – MPX5700AP.
