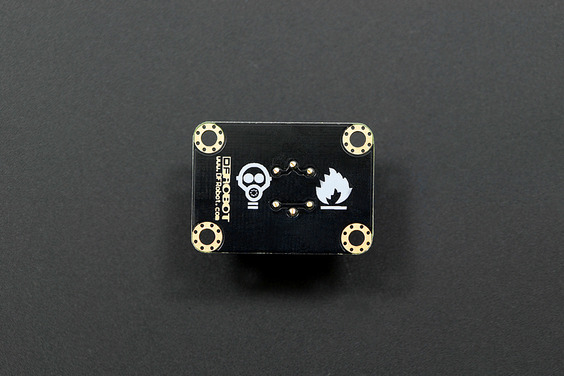

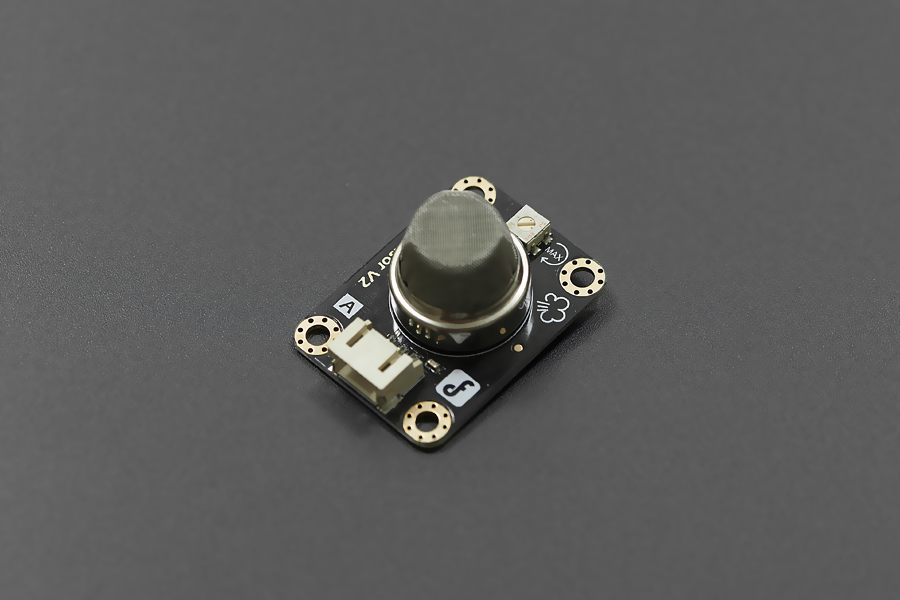

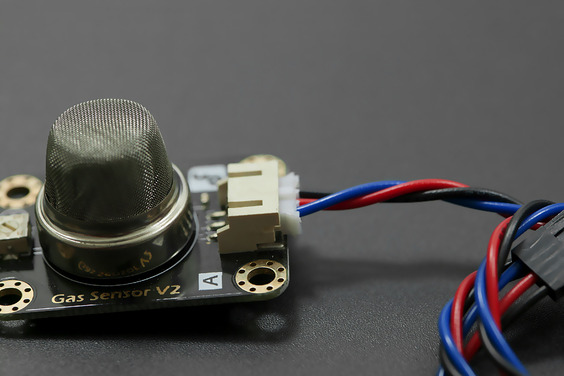

DFRobot Gravity Analog LPG Gas Sensor (MQ5) For Arduino

11 People watching this product now!

SKU: rz24310696 Category: Gas and Dust Sensor

Description

The MQ5 is used in gas leakage detecting equipment in consumer and industry applications,this sensor is suitable for detecting LPG, natural gas, coal gas. Avoid the noise of alcohol, cooking fumes and cigarette smoke. The sensitivity can be adjusted by the potentiometer

Features:

High sensitivity to CH4，Natural gas
Small sensitivity to alcohol, smoke
Fast response
Stable and long life
Simple drive circuit

Specifications:

Power supply needs: 5V
Interface type: Analog
Pin Definition: 1-Output 2-GND 3-VCC
High sensitivity to LPG, natural gas, town gas
Small sensitivity to alcohol, smoke
Fast response
Stable and long life
Simple drive circuit
Size: 40x20mm(1.57″x0.79″)

Packages Includes:

1 x DFRobot Gravity Analog LPG Gas Sensor (MQ5) For Arduino
