We can divide temperature measurement into two types: contact and non-contact. Contact measurement can only accurately measure temperature when the testing object and the sensor reach thermal equilibrium. This can mean longer response times and reading inaccuracies offset by ambient temperature. By contrast, non-contact measurement uses infra-red radiation to measure the temperature and does not require a direct touch. Additionally, this method of measurement can be read quickly and accurately.

In recent years non-contact measurement methods have been used for medical, environmental monitoring, home automation, automotive electronics, aerospace, and military applications.

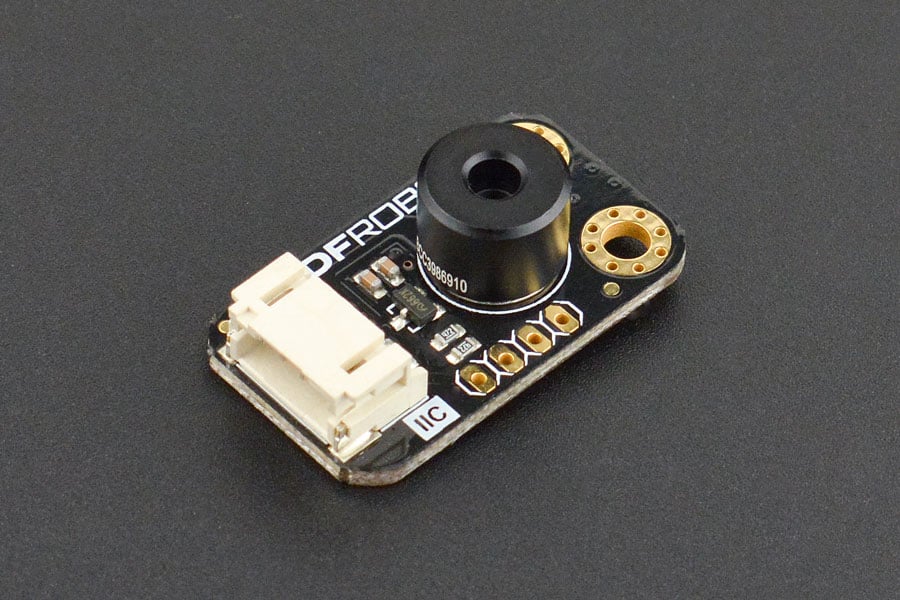

This is the latest infrared temperature measurement module is the MLX90614. This module measures the surface temperature by detecting infrared radiation energy and wavelength distribution. The IR temperature probe consists of an optical system, photoelectric detector, amplifier, signal processing, and output module. The optical system collects the infrared radiation in its field of view and the infrared radiation energy is converted into corresponding electrical signals when converging on the photoelectric detector. After being processed by the amplifier and signal processing circuit, the signal is converted into a temperature value. The MLX90614 is self-calibrating and has a low noise amplifier integrated into the signal processing chip. The chip itself is a 17 bit ADC and DSP device, giving accurate and reliable results.

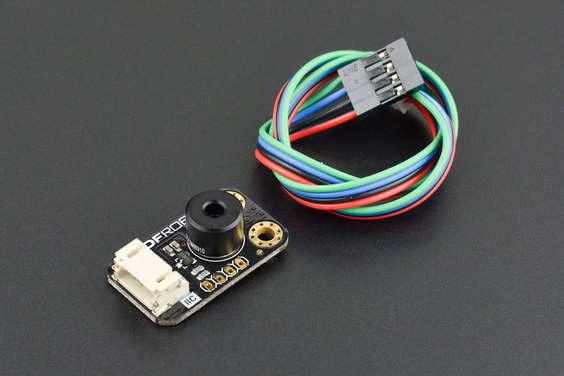

Package Includes:

1. 1 x on-contact IR Thermometer Sensor
2. 1 x JST PH2.0 4-Pin cable

This is a PIR Sensor, Pyroelectric, Dual Element, Intrusion Detector, TO-5, 2 V, 10 V, 100 °, LHI 968 product from EXCELITAS TECH with the model number LHI 968.

The LHi 968 series with standard Dual Element configuration is performance-proven in high-end applications. The LHi 968 design provides for a reduced sensitivity to EMI and excellent White Light Immunity (WLI). The PYD 1398 has higher RF immunity and is optionally available with grading for lower white light sensitivity.

Features:

1. TO-5 metal housing
2. Improved EMI protection
3. Improved WLI
4. Light weight
5. Easy to use

Specifications:

1. Model: LHI778
2. Supply Voltage: 0.3-1.5V
3. Material: Metal
4. Field of view, horizontal/Vertical: 100°

Note: For more info refer to Datasheet in attachment section

Packages Includes:

1 x EXCELITAS TECH LHI 968 PIR Sensor, Pyroelectric, Dual Element, Intrusion Detector

PIR HAT is an M5StickC compatible human body induction sensor, it belongs to the “Passive pyroelectric infrared detector”, that detects the infrared that comes from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.

Features & Specifications :

1. Detecting Range: 500cm
2. Delay time: 2s
3. Induction Angle: < 100°
4. IDDQ : < 60uA
5. Op.T: -20 – 80 °C

Package Includes:

1 x M5StickC PIR Hat (AS312)

Specifications and Features:

OMRON’s unique MEMS and ASIC technology achieve a high SNR.  Superior noise immunity with a digital output. High-precision area temperature detection with low cross-talk field of view characteristics.

Features:

1. Superior noise immunity
2. High-precision area
3. temperature detection with a low cross-talk field of view

Specifications:

1. Power supply voltage: 4.5 to 5.5 VDC
2. Storage temperature range: -20 to 80°C
3. Operating temperature range: 0 to 60°C
4. Storage humidity range: 95% max.
5. Operating humidity range: 20% to 95%

Package Includes:

1 x D6T-1A-01 IR SENSOR, 5 TO 50DEG C, 5.5VDC

This is a PIR SENSOR, ANALOG, LENSLESS, 5.5VDC product from PANASONIC with the model number EKMC2600100K. used in Households or other appliances like starting air conditioning or turning on the lights.

Features:

1. High sensitivity
2. Fast response
3. Small static power consumption
4. Small size
5. Easy to install

Specifications:

1. Operating Voltage: 3.0 – 5.5 VDC
2. Electrical Current Consumption: 350
3. Output Current: 200
4. Signal Output Voltage: 450
5. Output Offset Average Voltage: 1.2
6. Steady-state Noise: 150

Package Includes:

1 x PANASONIC EKMC2600100K PIR SENSOR, ANALOG, LENSLESS, 5.5VDC
