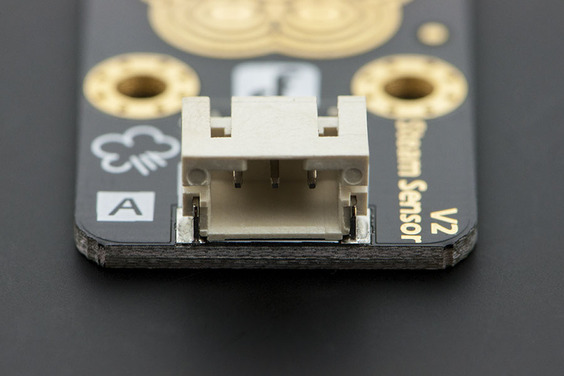

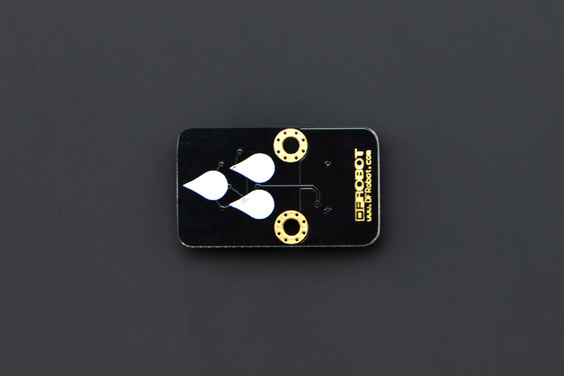

DFRobot Gravity Steam Sensor

SKU: 1074721
In Stock

125.00

  1. Power supply: 3.3v or 5v
  2. Output voltage signal: 0~4.5v(@5v) or 0~3.0v(@3.3v)
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

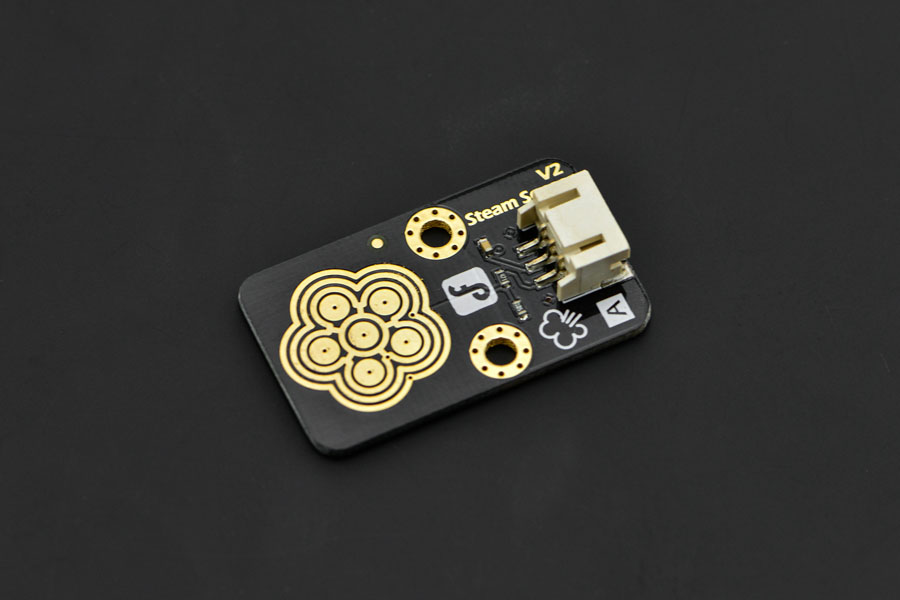

This is a steam(water)sensor from DFRobot. This steam sensor can be connected to the Arduino IO Expansion shield directly. The output voltage will increase when the humidity of the sensor surface goes up.

Connection Diagram:

Application:
  1. Simple rain detector
  2. Cheap steam level switch
  3. Touch sensor based on humidity

Package Includes:

1 x DFRobot Gravity Steam Sensor

Additional information

Input Voltage (V)

3.3 to 5

Output Voltage Signal

0~4.5v(@5v) or 0~3.0v(@3.3v)

Pin Definition

Analog output(Blue wire) GND(Black wire) Power(Red wire)

Length (mm)

30

Width (mm)

20

Height (mm)

6.1
