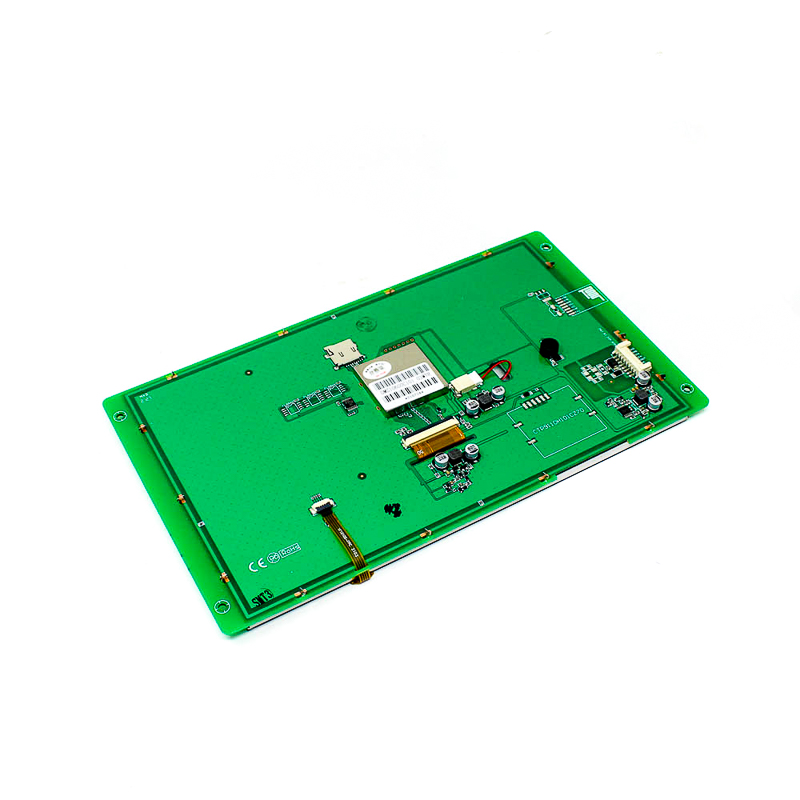

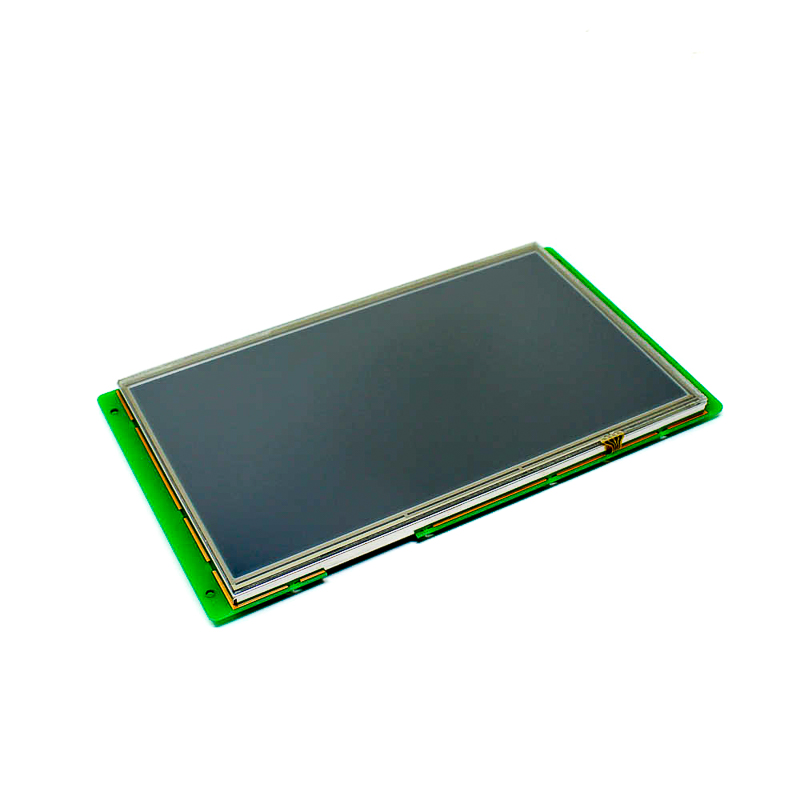

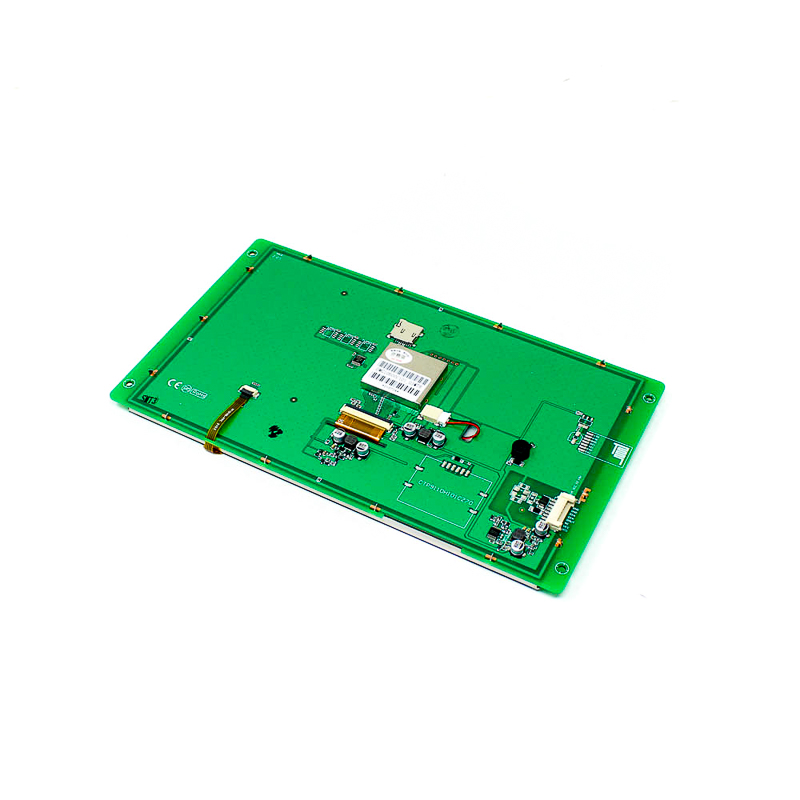

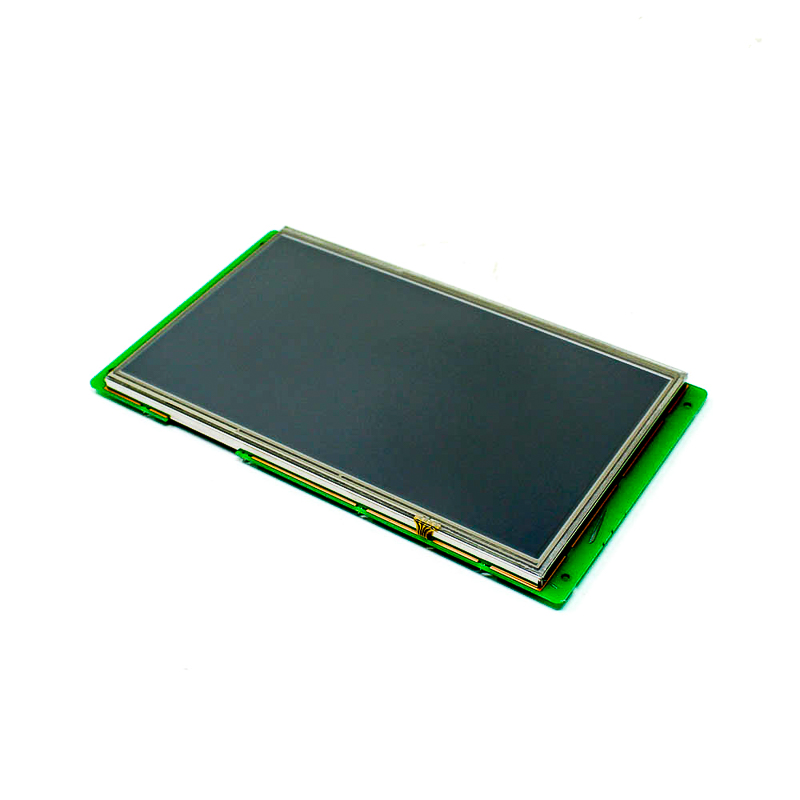

DWIN HMI 10.1 Inch IPS LCD Resistive Touch Display

10 People watching this product now!

SKU: rz24318929 Category: HMI LCD Display

Description

This DWIN 10.1 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Suh as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 250 nit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

For more information about the Development tool, Click here

Features:

UI Version: TA / DGUS II ( DGUS II pre-installed)
Powerful data management
Dimensions:257.8(W) ×148.1(H) × 15.2(T) mm

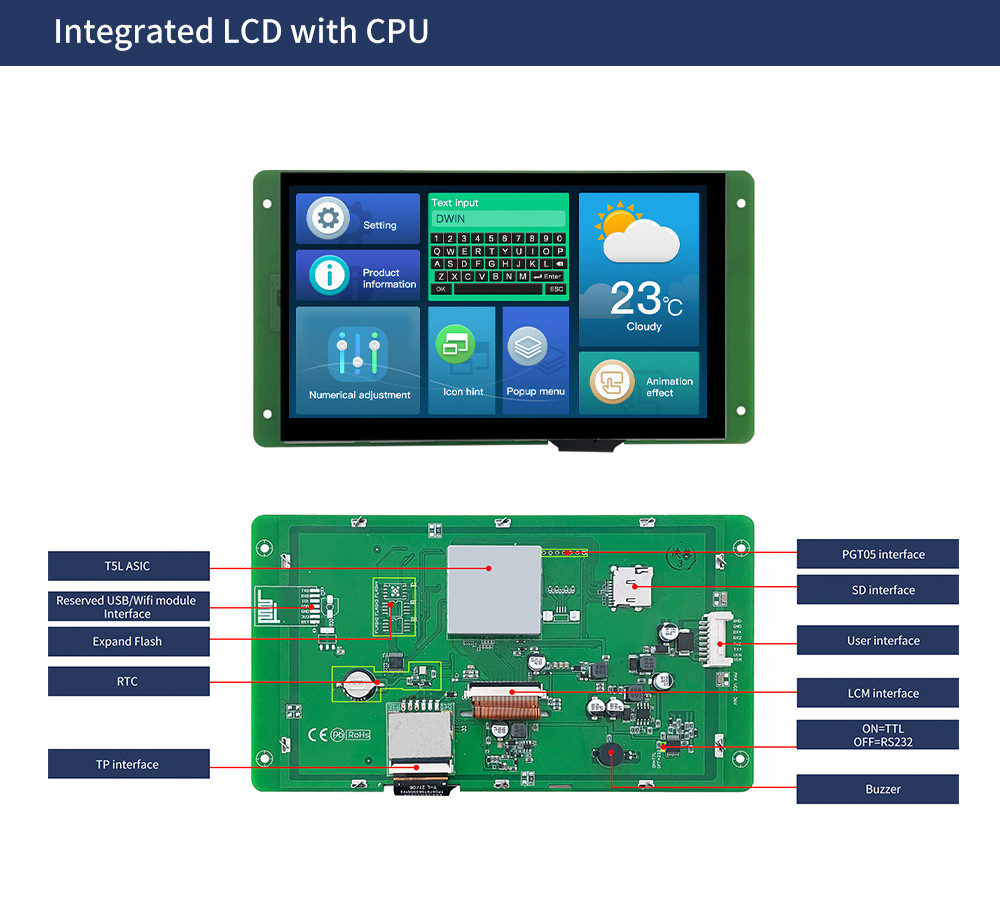

Capacitance touch panel, Buzzer, WIFI module interface
Powerful data management
Built-in DGUS II intelligent software

Display:

Size – 10.1″
Display Format – 1024 × 600 Pixel Matrix
Brightness – 250nit
Active Area – 222.7 mm (W) × 125.3 mm (H)
Colour – 24-bit colour 8R8G8B
Backlight – LED

Interface:

Mode is determined by Jumper: ON = 8N1, 3.3V & 5V TTL/CMOS; OFF = 8N1, RS232

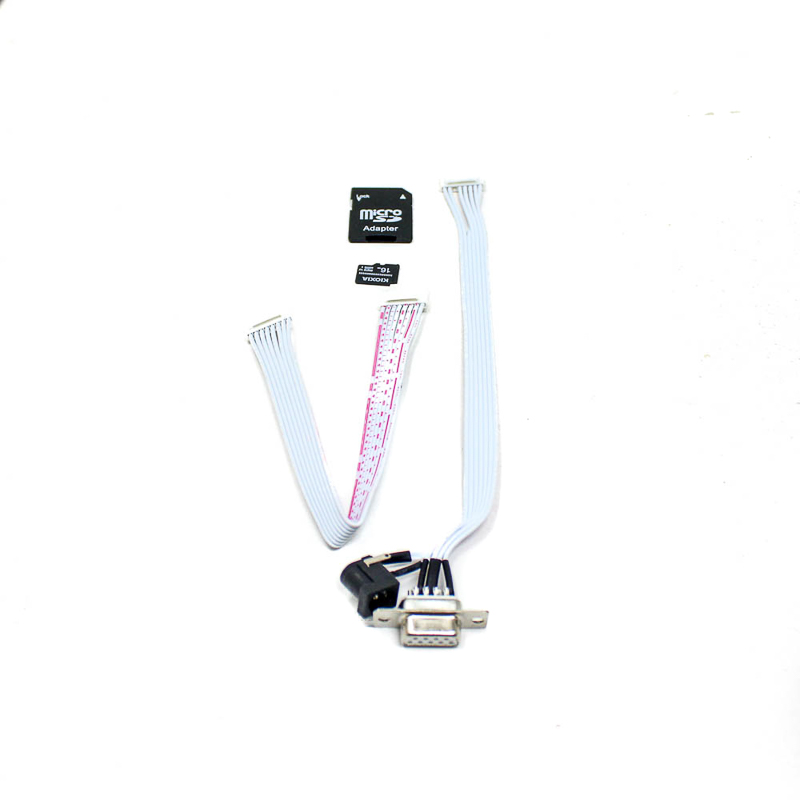

Package Includes :

1 x 1 0.1″ SMART SCREEN
1 x Dual USB Cable
1 x Flexible Flat cable

Additional information

Operating Voltage (VDC)	4.5 ~ 5.5
RAM	128KB
Flash Memory	16MB
Touch Type	Resistive
Interface	I2C , UART
LED Brightness (MCD)	250
