ESP32 Development board WT32-SC01

16 People watching this product now!

SKU: rz24318452 Category: Development Board/Kit

Description

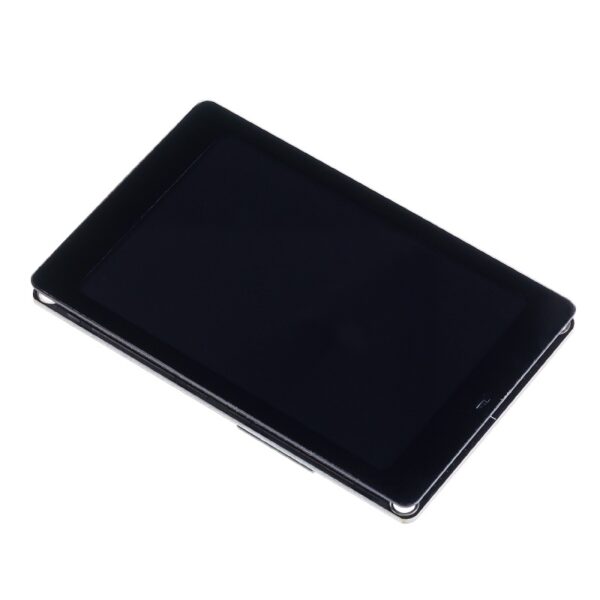

WT32-SC01 is an ESP32 Development board with a 3.5-inch colour touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform.

WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.

By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user’s development cycle.

Getting started with ESP32 Development board WT32-SC01

Hardware Overview:

ESP32-WROVER-B module
Capacitive touchpad interface
LCM display interface
Power management
Power switch
Reset Button
USB Type-C interface
Expansion board interface
Power indicator
UART communication indicator

Features:

Highly integrated ESP32-WROVER-B module with low power consumption
3.5-inch 320×480 capacitive 2-point multi-touch screen for easy interactions
Easy to program using the graphical drag-and-drop programming
Wireless connectivity with Wi-Fi and BLE
Customize functions such as button operation, voice control, and camera operation through the expansion interfaces

Package Includes :

1 x ESP32 Development board WT32-SC01

Additional information

Recommended Power Supply	DC 5V/2A. 5V/1A
Soc	ESP32-WROVER-B module
CPU	Dual-core Xtensa@ 32-bit LX6 MCU
SRAM	8MB
SPI Flash	4 MB
Display	LCD/ @320×480/ Capacitive with 2-point multitouch
Display Size (inch)	3.5 inch
Bluetooth Version	Bluetooth v4.2 BR/EDR and Bluetooth LE standards
Operating Temperature Range (°C)	-20 to +85 °C
