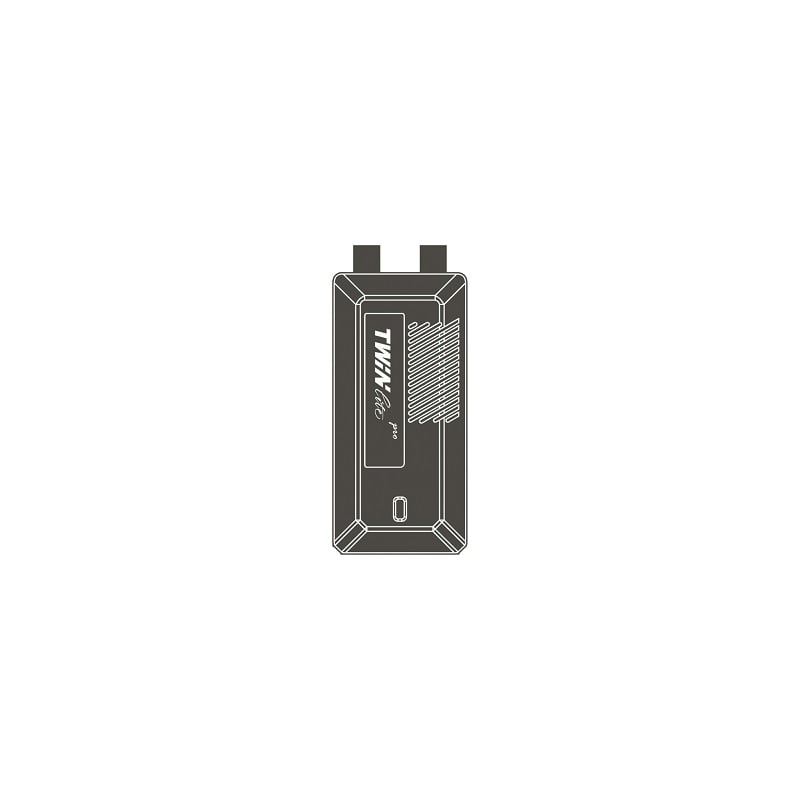

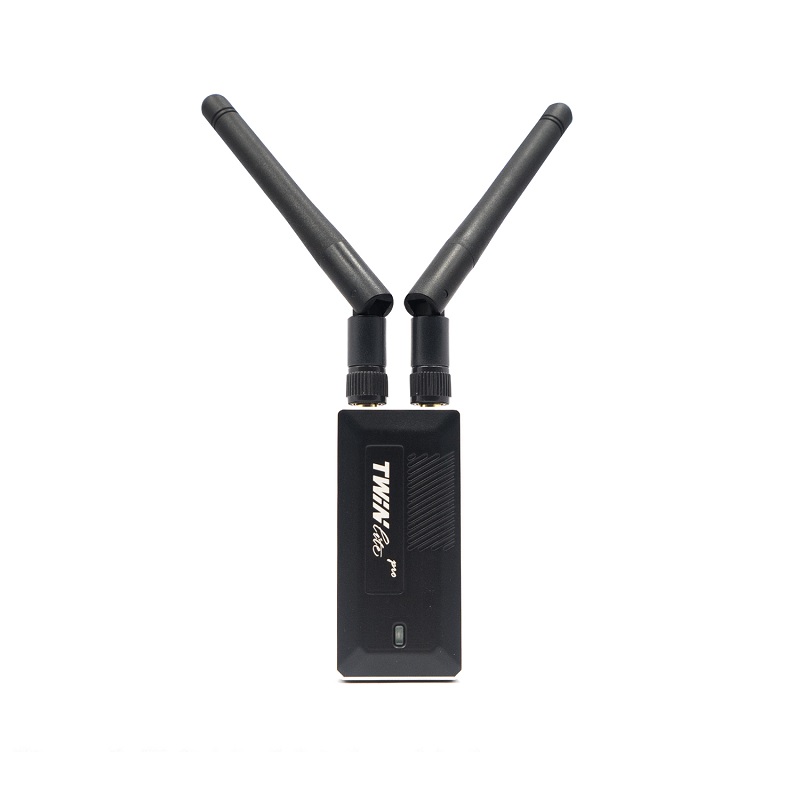

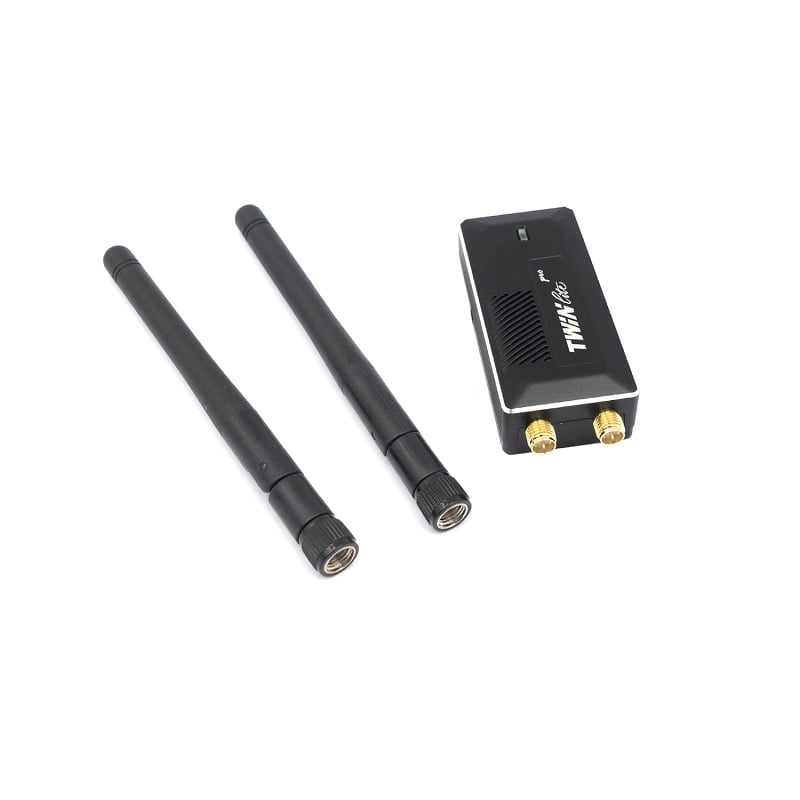

FrSky TWIN Lite Pro Module

13 People watching this product now!

SKU: rz2436689 Category: FPV Antennas and Trans-Receivers

Description

The Twin Lite PRO is a powerful RF module which enables ETHOS capable radios to bind to the TW series receivers and support the TW protocol’s dual 2.4G frequencies simultaneously on the same receiver. The TW active-active protocol is different from the general active-standby redundancy solutions (where one receiver takes over signal control only when the other is in Failsafe mode), with the TW protocol, dual 2.4G frequency bands are active on the TW series module, and receiver at the same time.

The RF module has two 2.4G external antennas RF mounted to provide multi-directional and wider coverage for transmitting signals compared to a single antenna design. Taking advantage of these features, the Twin system can provide less latency and higher reliability at a faster data rate with confidence.

In addition to the TW mode, this module also supports ACCST D16, ACCESS, and ELRS 2.4G modes, this means users can benefit from a wide range of compatible receiver options to choose and bind to when building the RC model. The Twin Lite Pro module offers resilient RF power options up to 500mW, constructed with the CNC machined metal module shell that helps aid heat dissipation, this system can ensure a stable long-range control further around tens of kilometers under long working hours.

Features:

Less latency with more range and higher reliability at a faster data rate
CNC machined metal module shell designed to aid heat dissipation
Adjustable RF Power (Up to 500mW)
Supports 4 RF protocols: ACCST D16 / ACCESS / ELRS (Compatible) / TW Mode
TW Mode (ETHOS Radios compatible)
Highly resilient RF module providing dual 2.4G signals working simultaneously
Long-range control (Tens of kilometers, range varies based on the RF Power settings.)
Low-latency (＜4ms) supporting full telemetry

Specifications:

Operating current: 84mA 100mW
RF power: 10mW/25mW/100mW/200mW/500mW
Supports 4 RF protocols: ACCST D16 / ACCESS / ELRS / TW modes
Antenna: 2 x external 2.4G antenna
Weight: 36.8g (without antenna)
Dimension: 62.8×30×17.2mm
Product weight: 51g

Packages Includes:

1 x FrSky TWIN Lite Pro Module

Reviews (0)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping & Delivery

Shipping and Delivery Policy

1. Shipping Process:

Orders are processed within 1-2 business days after payment confirmation.
Delivery time varies based on location and selected shipping method, typically ranging between 3-7 business days.
We partner with trusted courier services to ensure timely and safe delivery.

2. Shipping Charges:

Shipping charges are calculated at checkout based on the delivery location and package weight.
Free shipping may be available for orders above a specified amount, as mentioned on our website.

3. Order Tracking:

Once your order is shipped, you will receive a tracking ID via email or SMS to monitor the shipment status.

4. Delivery Address:

Please provide a complete and accurate delivery address to avoid delays.
We are not responsible for delivery failures due to incorrect or incomplete address details provided by the customer.

5. Delivery Issues:

If a package is delayed, lost, or damaged during transit, please contact our support team immediately.
Claims for lost or damaged items must be reported within 48 hours of delivery.

6. No Return Policy for Opened/Soldered Products:

We do not accept returns for products that have been opened, used, or soldered.
Ensure you verify product compatibility before purchase, as returns will only be accepted for unopened and unused items in their original packaging.

7. Refund Policy:

Refunds will be issued only for canceled orders before shipment or wrong/damaged items received (subject to investigation).
No refunds or replacements for products that have been tampered with, soldered, or physically damaged by the customer.

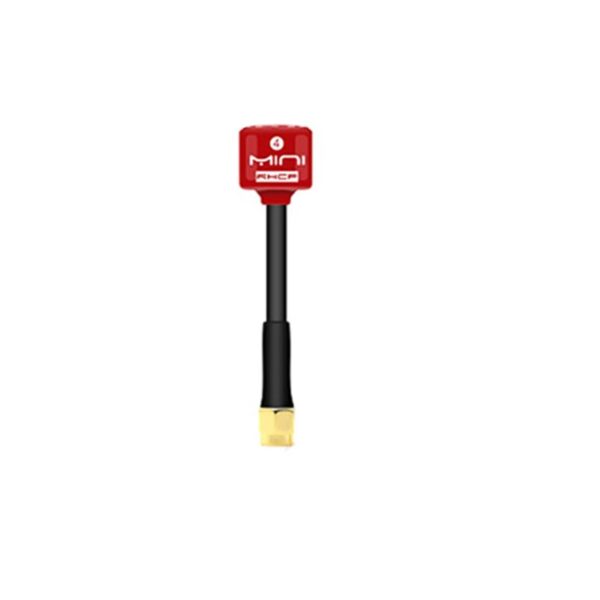

5.8G 2.8dBi RHCP RP-SMA Lollipop Antenna

5.8G 2.8dBi RHCP RP-SMA Lollipop Antenna

Out of stock

₹560.07 – ₹636.43 (Including tax)

SKU: rz24323194

Connector Type	RP-SMA Male Plug Connector
Polarization	RHCP(Right Hand Circular Polarization)
Frequency(GHz)	5.8
Impedance (Ω)	50
Efficiency	>50%
Cable Length (cm)	35
Operating Temperature Range (°C)	-40 to 85
Length (mm)	15
Width (mm)	18
Height (mm)	62
Weight (gm)	7

5.8G 2.8dBi RHCP SMA Lollipop Antenna(Long)

5.8G 2.8dBi RHCP RP-SMA Lollipop Antenna(Long)

Out of stock

₹560.07 – ₹636.43 (Including tax)

SKU: rz24323193

Connector Type	RP-SMA Male Plug Connector
Polarization	RHCP(Right Hand Circular Polarization)
Frequency(GHz)	5.8
Efficiency	>50%
Cable Length (cm)	120
Operating Temperature Range (°C)	-40 to 85
Length (mm)	15
Width (mm)	18
Height (mm)	150
Weight (gm)	11

5.8G 2.8dBi RHCP SMA Lollipop Antenna

Out of stock

₹560.07 – ₹636.43 (Including tax)

SKU: rz24323221

Connector Type	SMA Male Plug Connector
Polarization	RHCP(Right Hand Circular Polarization)
Frequency(GHz)	5.8
Impedance (Ω)	50
Efficiency	>50%
Cable Length (cm)	37
Operating Temperature Range (°C)	-40 to 85
Length (mm)	15
Width (mm)	18
Height (mm)	62.5
Weight (gm)	6

5.8G 2.8dBi RHCP SMA Lollipop Antenna(Long)

Out of stock

₹560.07 – ₹636.43 (Including tax)

SKU: rz24323183

Connector Type	SMA Male Plug Connector
Polarization	RHCP(Right Hand Circular Polarization)
Frequency(GHz)	5.8
Impedance (Ω)	50
Efficiency	>50%
Cable Length (cm)	12.5
Operating Temperature Range (°C)	-40 to 85
Length (mm)	15
Width (mm)	18
Height (mm)	150
Weight (gm)	10

5.8G 2.8dBi RHCP UFL Lollipop Antenna

Out of stock

₹560.07 – ₹636.43 (Including tax)

SKU: rz24323220

Polarization	RHCP(Right Hand Circular Polarization)
Frequency(GHz)	5.8
Impedance (Ω)	50 Ω
Efficiency	>50%
Cable Length (cm)	70
Operating Temperature Range (°C)	-40 to 85
Length (mm)	15
Width (mm)	18
Weight (gm)	3

915Mhz 500MW Telemetry Kit

Out of stock

₹9,769.43 – ₹11,101.61 (Including tax)

SKU: rz2438416

Maximum Output Power (mW)	500
Molex Connector	6-position
Interface	UART
Connector	SMA

TBS Crossfire Onsterfelijke T Antenne- (Copy)

Out of stock

₹1,025.79 – ₹1,165.67 (Including tax)

SKU: rz24317487

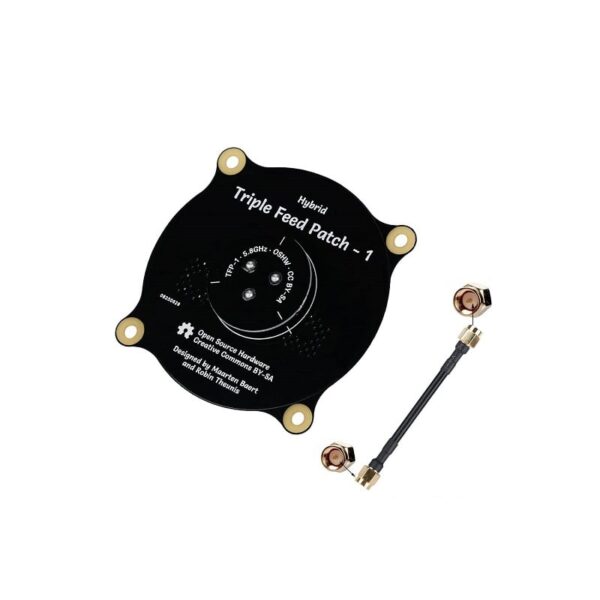

Triple Feed Patch 5.8GHz Antenna SMA
