Fuss FS-RX2A Pro V1 Receiver Mini Traversing Mini IBUS / PPM / SBUS Signal

SKU: 1214281
Out of stock

715.00

Add to Wishlist
Add to Wishlist
  1. Annel number: IBUS 10, PPM 8.
  2. Frequency range: 2.408-2.475GHZ
  3. Band width: 135
  4. Receiving sensitivity: -92DBM
  5. 2.4G mode: AFHDS 2A
  6. Remote Control Peripherals/Devices: Receivers
  7. For Vehicle Type: Airplanes
  8. Four-wheel Drive Attributes: Assemblage
Out of stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

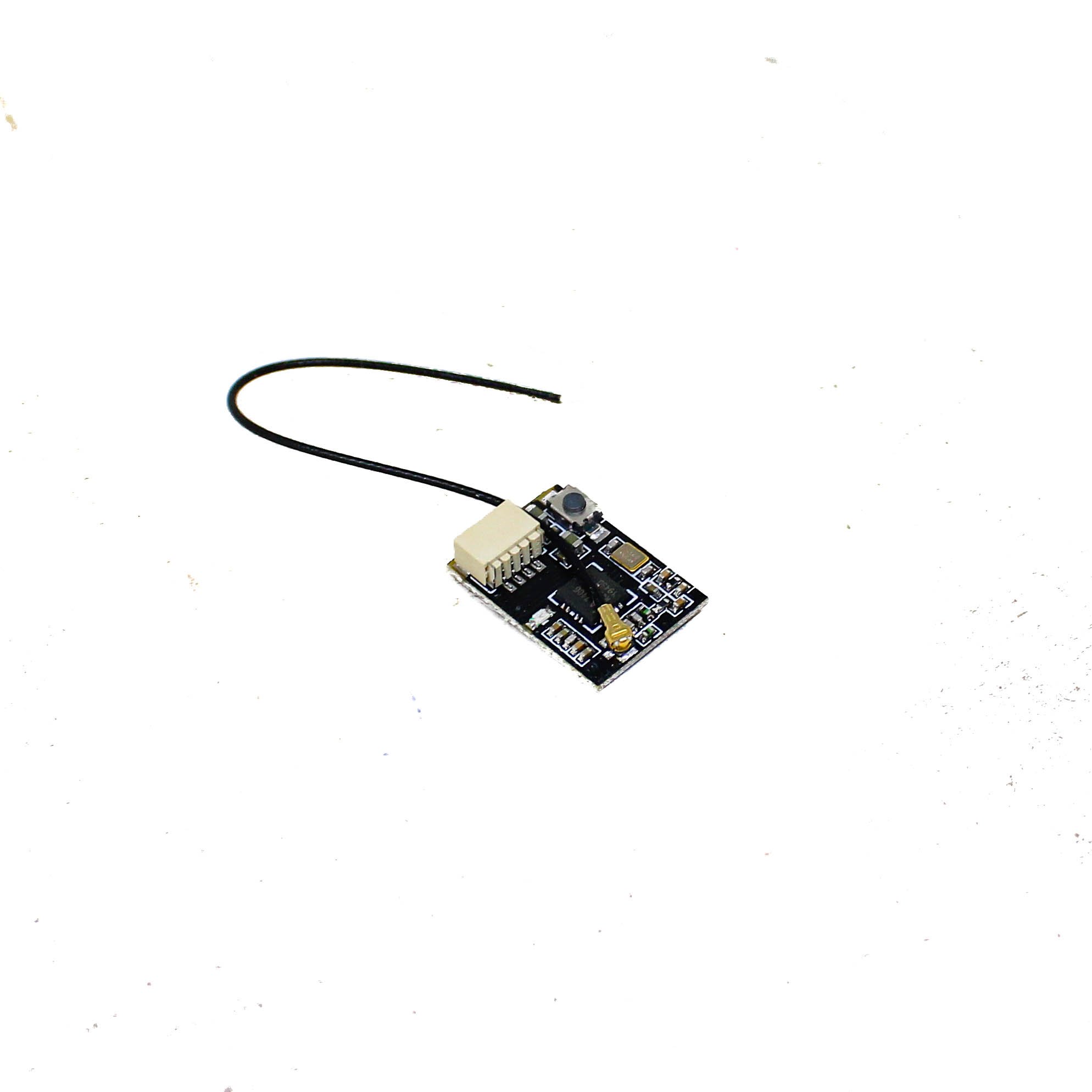

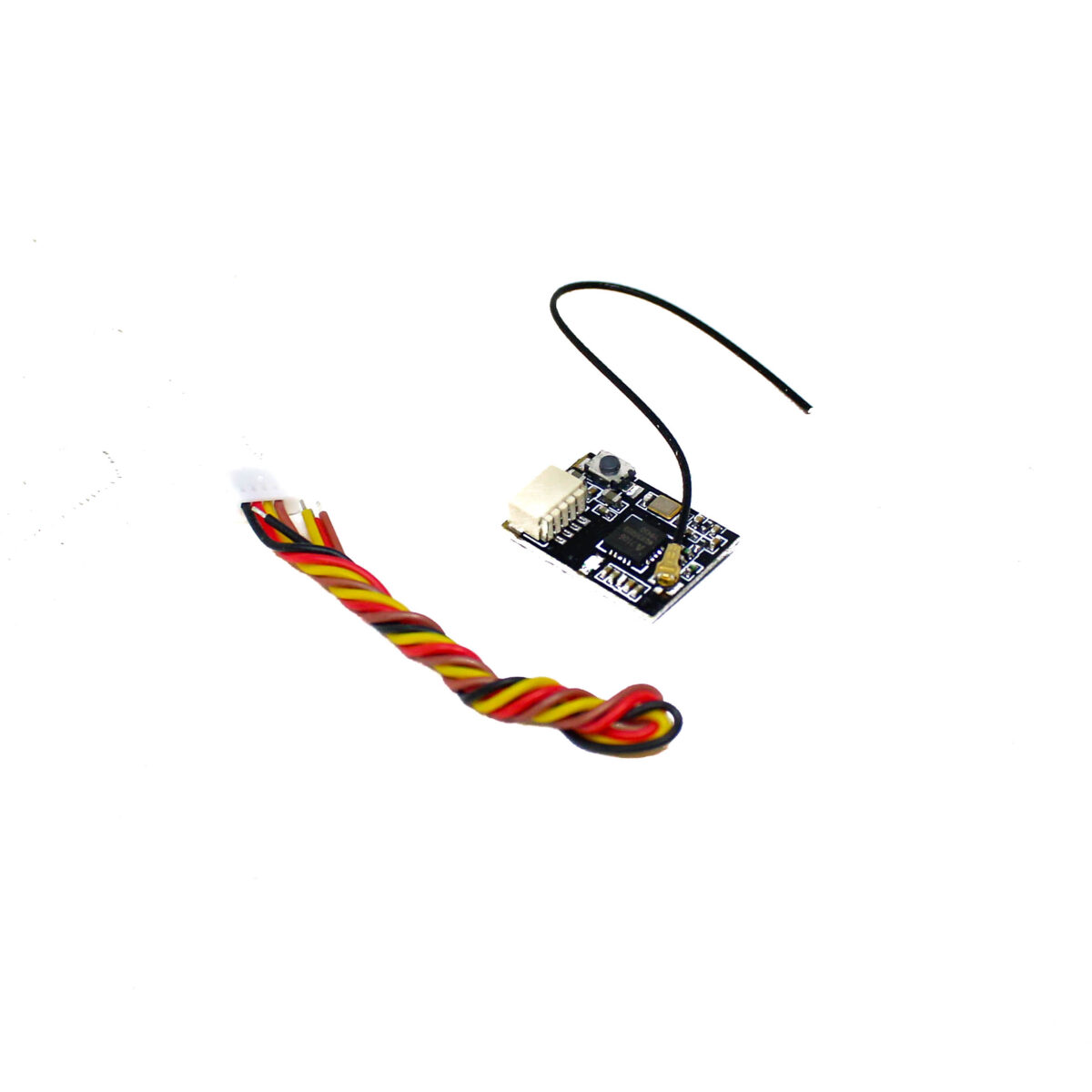

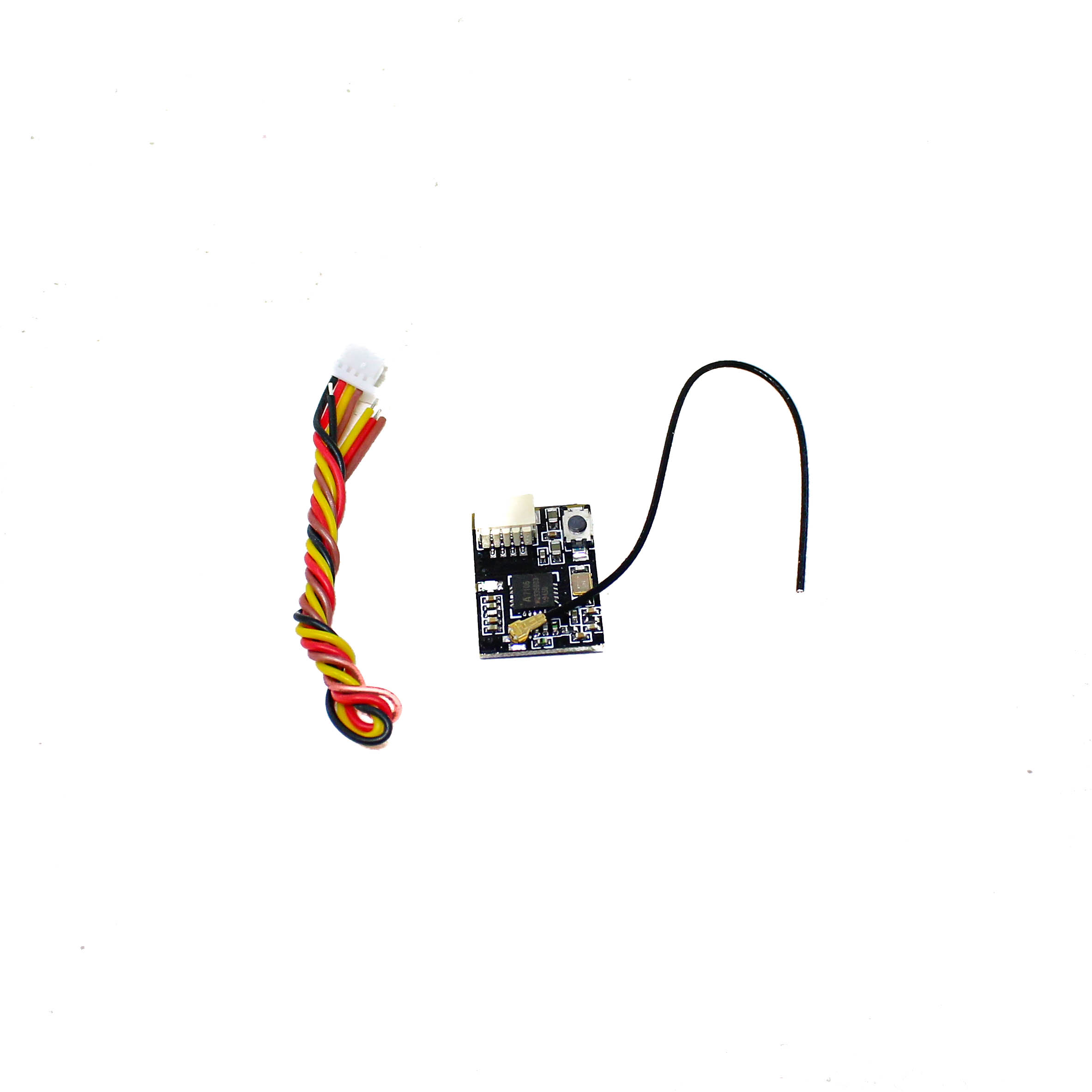

The FS-RX2A Pro Radio Receiver Mini Receiver is built for use in multi-rotor drones and is a 1-way receiver (no telemetry). It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 10 channels, In the world of racing drones, the requirements are for small and lightweight components. The FS-A8S receiver fits these requirements superbly, being only 12 x 15 mm and 1.0g.

Compatible Transmitter: All AFHDS 2A Transmitter, for example, FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 etc.

Binding procedure:

1. Press and hold the Binding button, and supply power to the receiver, the green LED blinks fast means entering the binding mode.
2. Make the transmitter enter BIND mode.
3. The LED indicator become slowly blink means the binding succeeds.
4. Make the transmitter quit the BIND mode, the receiver LED indicator to stay on means receiving signal

Note: Failsafe only works on IBUS, not in PPM.


Features:

  1. Technical parameters: Value 3
  2. Model Number: Fuss FS-RX2A Pro V1 Receiver
  3. Remote Control Peripherals/Devices: Receivers
  4. For Vehicle Type: Airplanes
  5. Four-wheel Drive Attributes: Assemblage
  6. Color: As picture shows
  7. Material: Composite Material
  8. Tool Supplies: Cutting
  9. Upgrade Parts/Accessories: for Remote Control Model
  10. RC Parts & Accs: Connectors/Wiring
  11. Use: Vehicles & Remote Control Toys

Package includes :

1 x  FS-RX2A Pro Radio Receiver

Additional information

Annel number

IBUS 10, PPM 8.

Frequency range

2.408-2.475GHZ

Band width

135

Receiving sensitivity

-92DBM

2.4G mode

AFHDS 2A

Signal output

IBUS (out of control) PPM (no runaway protection)

Antenna length

33MM

Supply voltage

5.0-20V

Distance

500+ M

Working current

30MA

Outline size

12 x 17MM

Weight

0.9 grams
