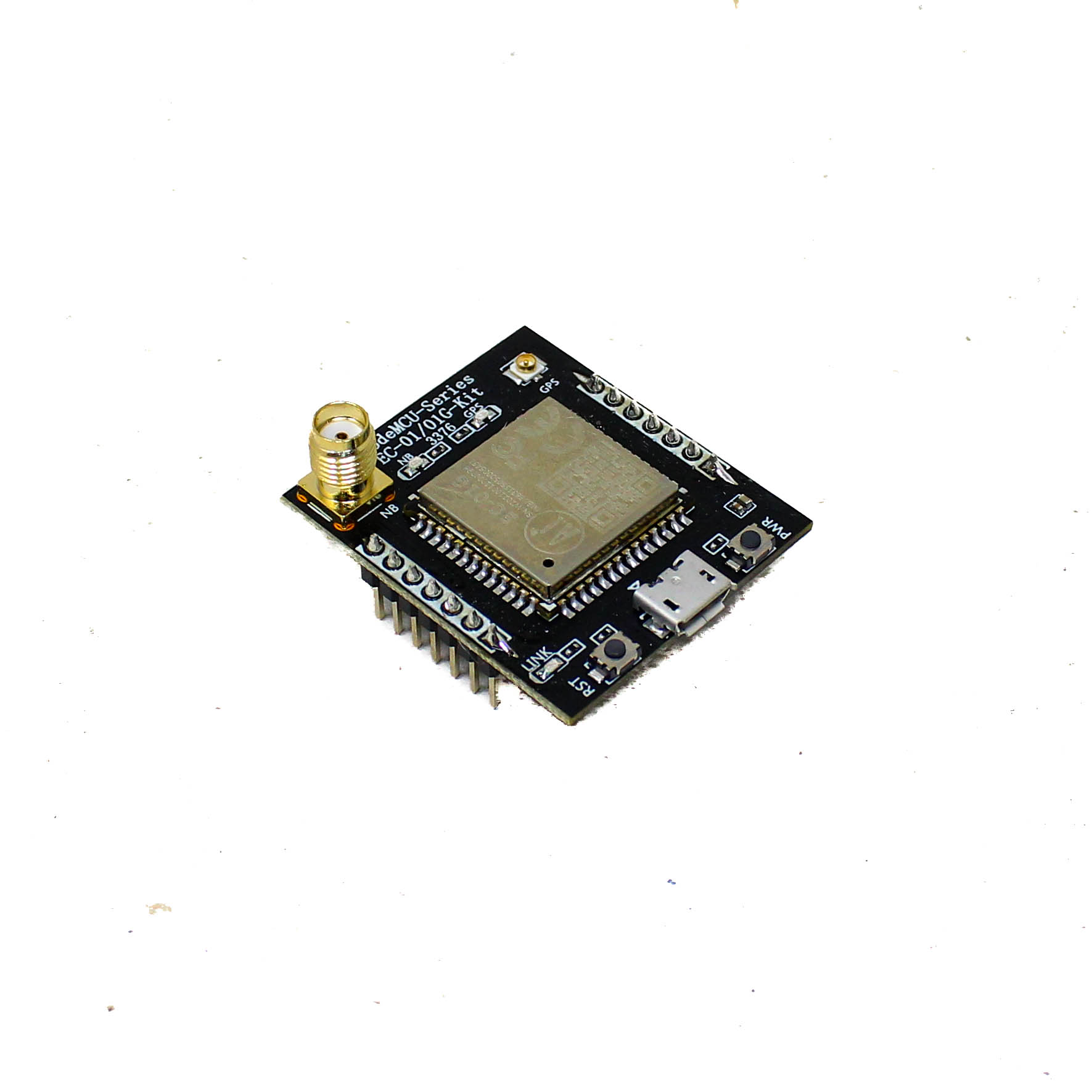

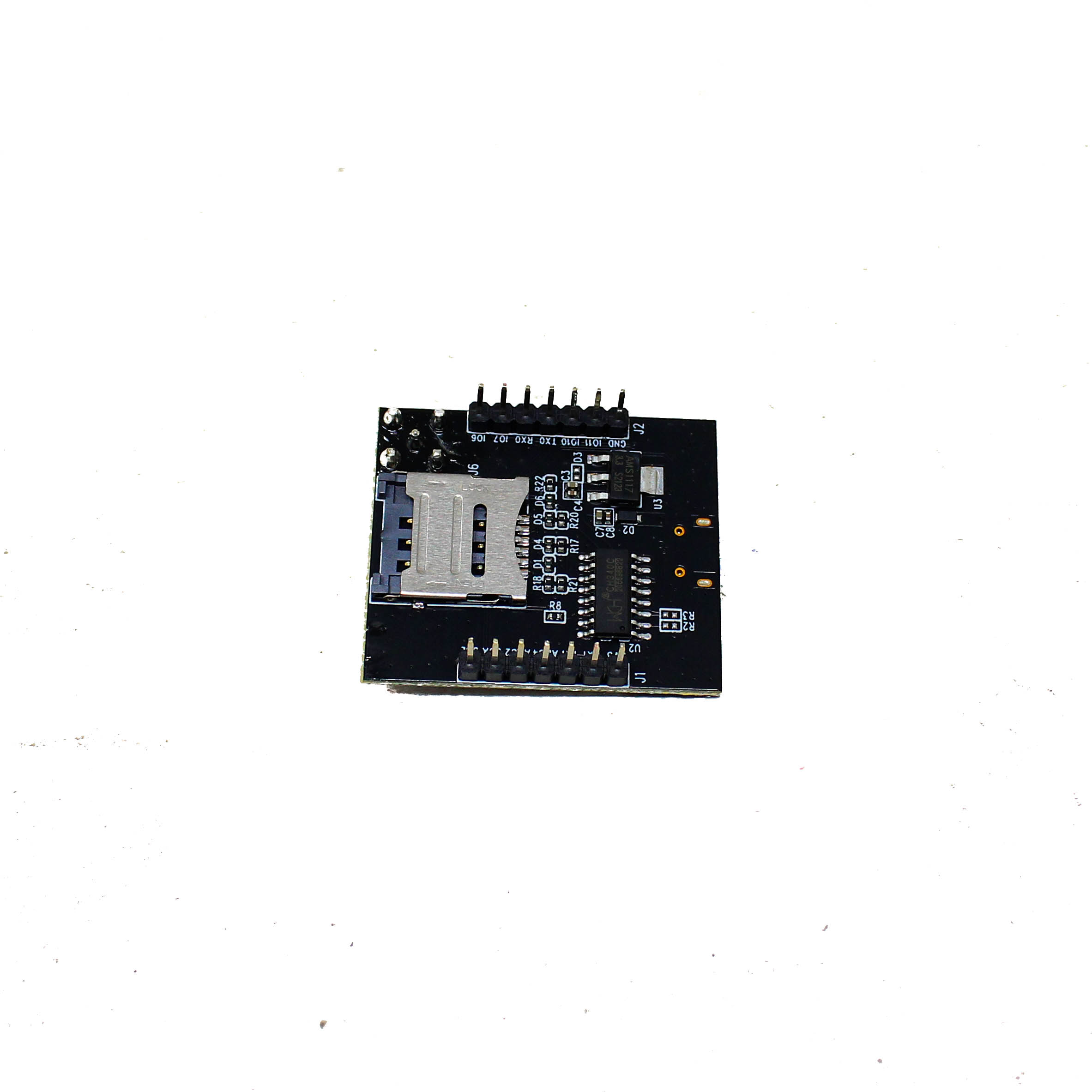

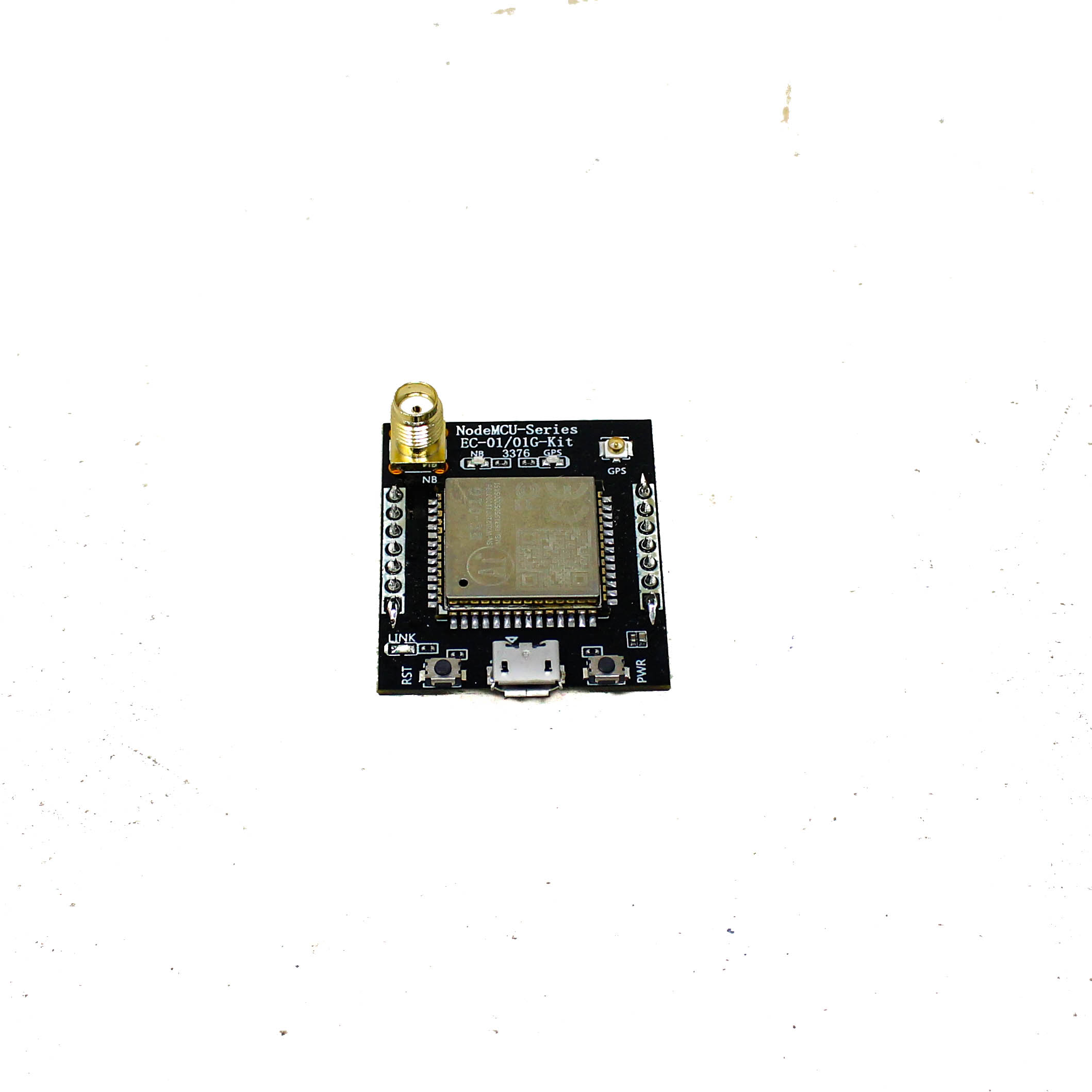

EC-01G-Kit is a development board designed for The EC-01G module, which is shared with the EC-01-Kit. The development board integrates CH340C serial port chip and SIM card holder to facilitate the use of developers.
EC-01G is a NB+GPS module developed by Ai-Thinker. The main chip scheme adopted in NB part is EC616S. The NB-IoT chip features ultra-integrated NB-IoT soCs ,ultra-low power consumption and full support for the 3GPP Rel14 NB-IoT standard, making it an extremely cost-effective NB-IoT chip.

The GPS part of EC-01G module adopts AT6558R as the main chip scheme The chip is a high-performance BDS/GNSS multi-mode satellite navigation receiver SoC single chip, on-chip integrated RF front end, digital baseband processor,32-bitRISC CPU, power management function The chip supports a variety of satellite navigation systems, including China’s Beidou Navigation Satellite System BDS,GPS of the United States, and GLONASS of Russia, and can realize joint positioning of multiple systems.

It has the following characteristics (NB-IoT0):

1. Integrated RF transceiver, PA, RF filter, antenna switch and power management Excellent communication performance and stability in a variety of wireless environments
2. Excellent power consumption performance in various modes (PSM, DRX, eDRX connected state)
3. Unique MCU mode, providing lower operating current and shorter wake up time

Applications:

1. Support Open-CPU
2. software conforms to the CMSIS architecture
3. Supports mainstream cloud services
4. IPv4, IPv6 and non-IP
5. UDP, TCP

Features:

1. Processor: Cortex-M3，support MPU
2. Storage: 4MB NOR Flash on chip
3. System: Flexible Configuration Support 1.8/2.8/3.3V IO
4. Peripheral: 12 GPIO(Include TX0RX0 AND TX1RX1), 2 UART, 2 ADC, 1 I2C, 1 SIM Booth
5. low power consumption
6. Communication: Fully support 3GPP R14 NB-IoT
7. Radio Frequency: Support the spectrum: Band3、Band5、Band8, chip integrated RF transceiver filter

Packages Includes:

1 x Ai-Thinker EC-01G-Kit NB+IOT Development Board

EC-01F-Kit It is an NB-IoT development board developed by Ai-Thinker Themainchip scheme used in the NB-IoT part is EC616S.The ultra-integrated NB-IoT So C development board supports ultra-low power consumption and fully supportsthe3GPP Rel14 NB-IoT standard, making it an ultra-cost-effective NB-IoT chip It has the following characteristics (NB-IoT)
Are integrated with RF transceivers, PA, RF filters, antenna switches and power management with Excellent communication performance and stability in a variety of wireless environments and Excellent power performance in various modes (PSM, DRX, eDRX, connected mode), Unique MCU mode, providing lower operating current and shorter wake uptime.

Application:

1. Support Open-CPU
2. software conforms to the CMSIS architecture
3. Supports mainstream cloud services
4. IPv4, IPv6 and non-IP

Features:

1. Processor: Cortex-M3，
2. Support: MPU
3. Configurable: CPU frequency, Max 204MHz
4. 8-Channel DMA
5. Storage: 4MB NOR Flash on chip
6. System: Flexible Configuration Support 1.8/2.8/3.3V IO
7. Peripheral: 8 GPIO(Include TX0RX0 AND TX1RX1), 2 UART,2 I2C, 5 PWM, 4 Channel, 12-bit AUXADC, 1 SIM Booth
8. Low power consumption
9. Communication: Fully support 3GPP R14 NB-IoT
10. Power supply voltage: support 5V Micro USB or 3.3V pin supply

Packages Includes:

1 x Ai-Thinker EC-01F-Kit NB+IOT Development Board

The core of this module is the ESP32 chip, which is scalable and adaptive. Two CPU cores can be individually controlled. The clock frequency is adjustable from 80 MHz to 240 MHz and supports RTOS.

It is a general-purpose  Wi-Fi+BT+BLE MCU module.ESP-WROOM-32s The module integrates traditional Bluetooth, Bluetooth low energy, and Wi-Fi. Wide range of uses: Wi-Fi supports a wide range of communication connections, as well as a direct connection to the Internet via a router; Bluetooth allows users to connect to a mobile phone or broadcast a BLE Beacon for signal detection.

The module supports data rates up to 150 Mbps and antenna output power of 20dBm for maximum wireless communication. As a result, this module has industry-leading specifications and performs well in terms of high integration, wireless transmission distance, power consumption, and network connectivity

Features:

1. 802.11b/g/n （802.11n，speed up to 150Mbps）
2. WIFI Frequency Range 2.4GHz ~ 2.5GHz
3. Clock frequency adjustment range from 80 MHz to 240 MHz, support for
   RTOS
4. Built-in 2-channel 12-bit high-precision ADC with up to 18 channels
5. Support: UART/GPIO/ADC/DAC/SDIO/SD card/PWM/I2C/I2S interface
6. Support multiple sleep modes, ESP32 chip sleep current is less than 5 μA
7. Embedded Lwip protocol stack
8. Supports STA/AP/STA + AP operation mode
9. Supports remote firmware upgrade (FOTA)
10. General AT commands can be used quickly
11. Support secondary development, integrated Windows, Linux development

Specification:

1. Module model: ESP-WROOM-32s
2. SPI Flash: 32Mbit(default)
3. Support interface: UART/GPIO/ADC/DAC/SDIO/SD card /PWM/I2C/I2S
4. Integrated crystal oscillator: 40MHz Crystal oscillator
5. IO Port: 38
6. Antenna: Onboard antenna
7. Power Supply: Voltage 3.0V ~ 3.6V，Typical 3.3V，Current >500mA
8. Operating Temperature: -40 ℃ ~ 85 ℃
9. Storage Environment: -40 ℃ ~ 120 ℃

Package includes:

1 x Ai Thinker NodeMCU-32S-ESP32 Development Board

Ai WB2 12F Kit is a development board designed for Ai WB2 12F modules. Ai WB2 12F is a Wi-Fi & Bluetooth module developed by Shenzhen Ai Thinker Technology Co., Ltd. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low power consumption, 276KB RAM, and a wide range of peripheral interfaces, including SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Features:

1. DIP 30 package
2. Supports IEEE 802.11 b/g/n protocol
3. Wi Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
4. Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps
5. Bluetooth BLE 5.0, Bluetooth Mesh
6. Supports Station + BLE mode, Station + SoftAP + BLE mode
7. Supports 32 bit RISC CPU and 276KB RAM
8. Secure Startup. Images with ECC 256 signatures are supported
9. Supports real time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES 128 CTR mode
10. Supports AES 128, 192, and 256 bit encryption engines
11. Supports SHA 1/224/256
12. Real random number generator (TRNG)
13. The public key accelerator (PKA) supports large numbers of basic operations. The software provides application interfaces such as signature and verification
14. Supports SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO
15. Integrated Wi Fi MAC/BB/RF/PA/LNA/Bluetooth
16. Supports multiple sleep modes with a deep sleep current of 12μA
17. Quick Start of universal AT commands
18. Supports secondary development and integrates Windows and Linux development environments

Specifications:

1. Model: Ai WB2 12F Kit
2. Package: DIP 30
3. Size: 49.66*25.40(±0.2)mm
4. Antenna On Board: PCB antenna
5. Frequency: 2400 ~ 2483.5MHz
6. Operation temperature: 40℃ ~ 85℃
7. Storage environment: 40℃ ~ 125℃, < 90%RH
8. Power supply Support voltage: 3.3V or 5V,
9. Power supply current: ≥500mA
10. Interfaces: UART/GPIO/ADC/PWM/I2C/SPI I/O 11
11. UART: rate Default value: 115200 bps
12. Bluetooth: BLE 5.0
13. Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
14. Flash: Default: 4MByte

Package Includes:

1 x Ai-Thinker Ai-WB2-12F Kit

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It uses Ziguang’s UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module, which can adapt to different operators and products Maximum flexibility in product design.

Features:

1. Support Cat.1
2. Support VoLTE
3. Support 1.4 ~ 20MHz RF bandwidth
4. LTE-TDD: uplink and downlink configuration 2
5. Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps
6. LTE-TDD: uplink and downlink configuration 1
7. Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps
8. Network protocol features
9. Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/
10. In development: SMTP/SMTPS/MMS/DTMF
11. USIM card interface
12. Support USIM / SIM card: 1.8V and 3V
13. USB interface
14. Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps
15. Used for AT commands, data transmission, software debugging, software upgrade
16. USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems
17. Serial port

Packages Includes:

1 x Ai-Thinker Ca-01 4G Cat.1 LTE Module

Ai WB2 12S is a Wi Fi&BT module developed by Shenzhen Ai Thinker Technology Co., LTD. The module is equipped with BL602 chip as the core processor and supports Wi Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low power 32 bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO etc. It can be widely used in Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other fields.

Features:

1. The package is SMD 16
2. Support IEEE 802.11 b/g/n protocol
3. Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
4. Support 20MHz bandwidth and Max rate is 72.2 Mbps
5. Bluetooth BLE 5.0, Bluetooth Mesh
6. Support Station + BLE mode Station + SoftAP + BLE mode
7. Support 32-bit RISC CPU276KB RAM
8. Secure start-up supports mirroring with ECC 256 signature
9. Support QSPI/SPI Flash On The Fly AES Decryption, support AES 128 CTR mode
10. Support AES 128/192/256-bit encryption engine
11. Support SHA 1/224/256
12. Support true Random number generator (TRNG)
13. Public key Accelerator (PKA), supports a large number of basic operations, the software provides a signature, verification, and other application program interface
14. Support SDIOSPIUARTI2CIR remotePWMADCDACPIRGPIO etc
15. Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
16. Support a variety of sleep modes, deep sleep current 12μA
17. Universal AT instruction for a quick start
18. Support secondary development, integrated Windows, and Linux development environment

Specifications:

1. Model: Ai WB2 12S
2. Package: SMD 16
3. Size: 24.0*16.0*3.1(±0.2)mm
4. Antenna on board: PCB antenna
5. Frequency: 2400 ~ 2483.5MHz
6. Operating temperature: 40℃ ~ 85℃
7. Storage temperature 40℃ ~ 125℃, < 90%RH
8. Power supply Support voltage: 2.7V ~ 3.6V,
9. Supply current: ≥500mA
10. Interface: UART/GPIO/ADC/PWM/I2C/SPI IO 11 UART rate Default 115200 bps
11. Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
12. Flash: Default 2MByte, MAX support 16MByte

Package Includes:

1 x Ai-Thinker Ai-WB2-12S Module
