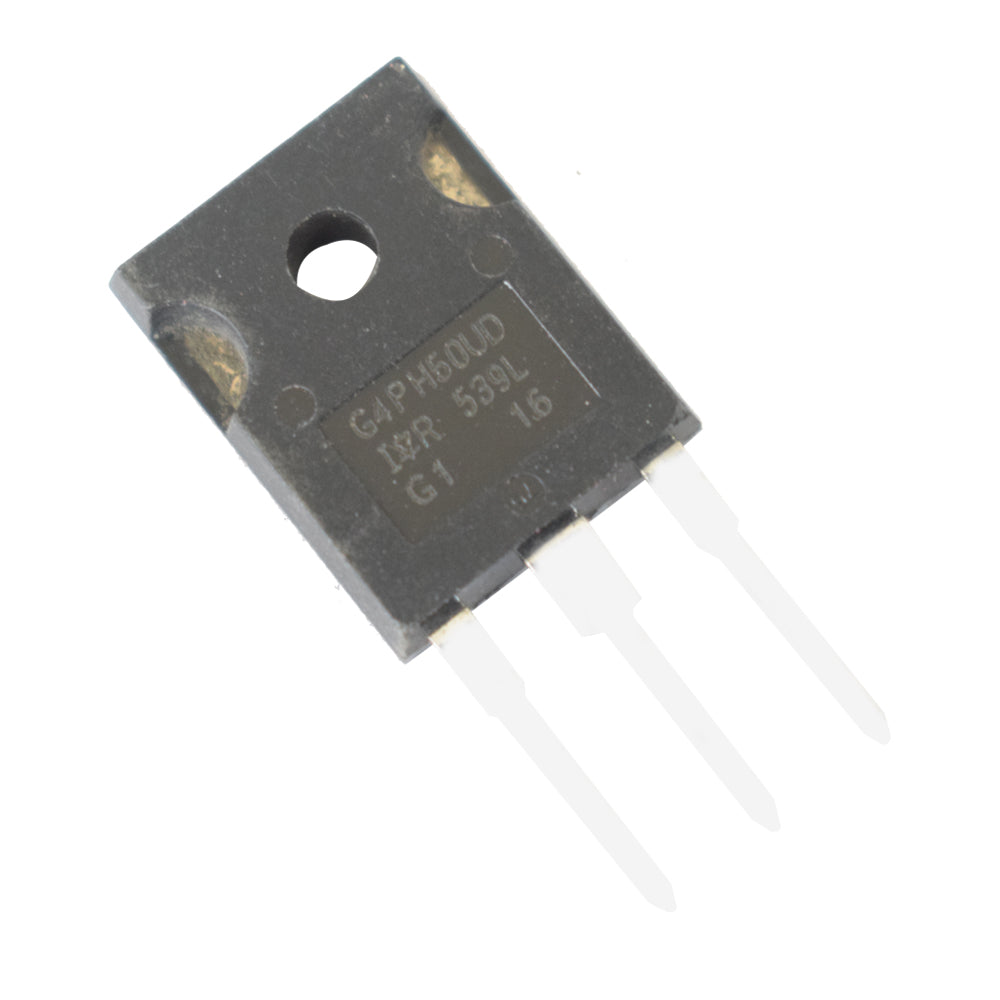

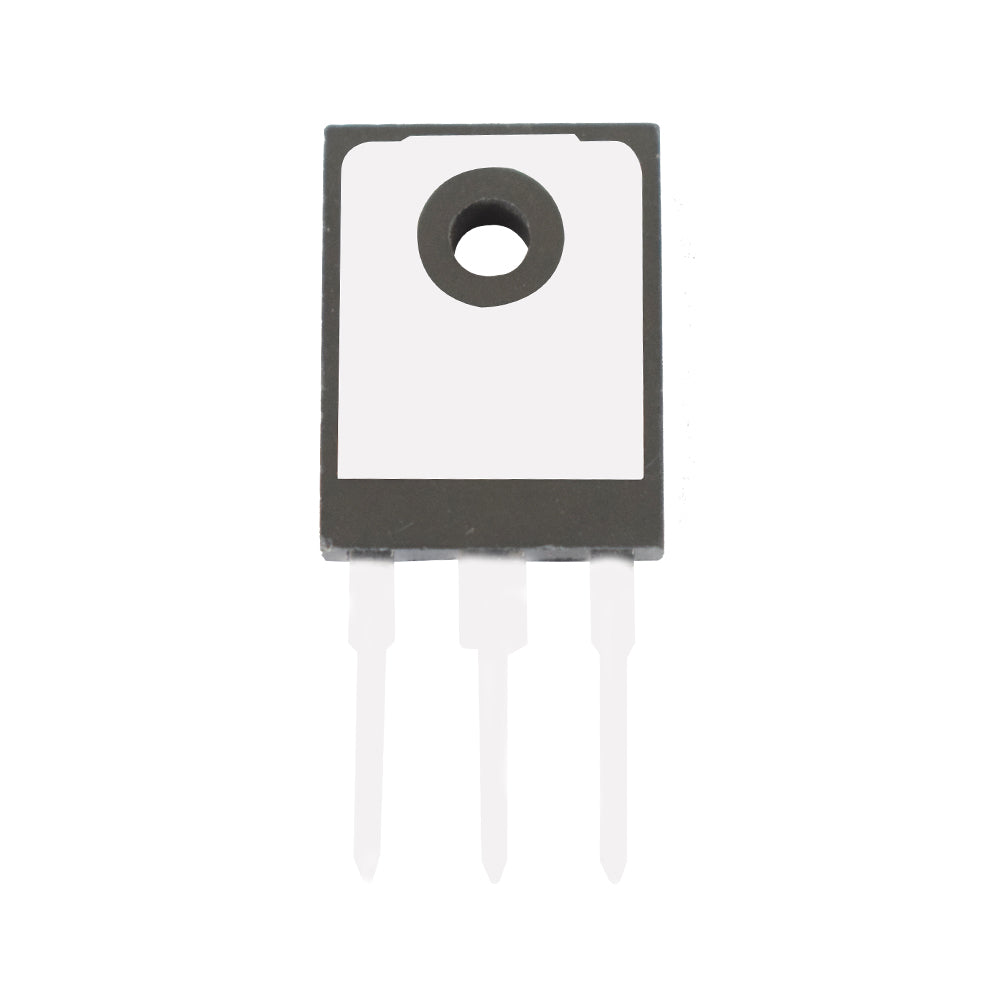

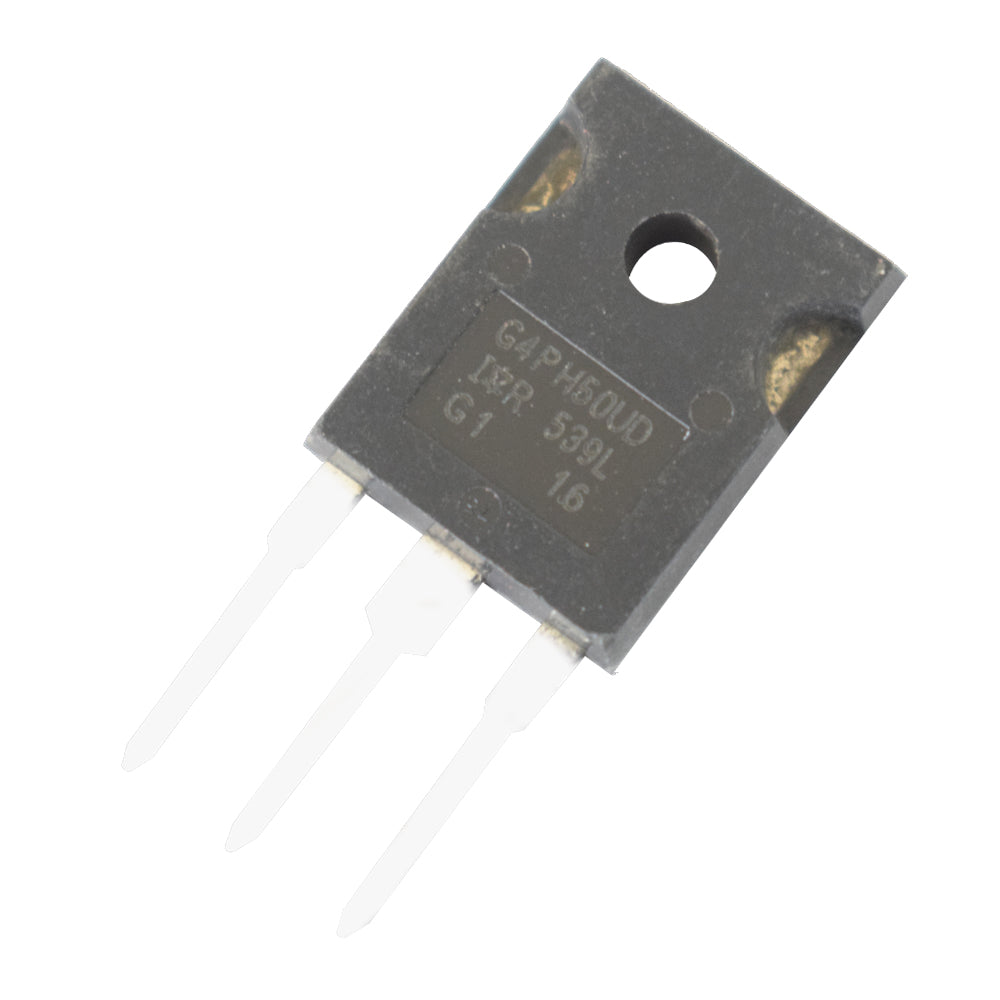

G4PH5OUD IGBT with Ultrafast Soft Recovery Diode

Original price was: ₹514.31.Current price is: ₹413.89. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%393.19 (Including tax)
11 - 208%380.77 (Including tax)
21 - 4010%372.50 (Including tax)
41 - 10012%364.22 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

12 People watching this product now!
Description

G4PH5OUD  is a type of diode with ultrafast soft recovery time by this feature it mostly uses for the fast switching applications. Its operating voltage is 1200V. Its optimised for the high frequencies up to 40KHz in hard switching.Its lead free IC its mostly prefer to use as a switching device. Its used in power switching operations,SMPS and UPS Etc.

Features

  • Low Gate Charge Qg results in Simple Drive Requirement
  • Fully Characterized Capacitance and Avalanche Voltage and
    Current
  • Enhanced Body Diode dv/dt Capability
  • Improved Gate, Avalanche and Dynamic dv/dt Ruggedness
  • Its package is TO-247AC
  • Higher switching frequency capability than competitive IGBTs
  • Highly efficient.

Datasheet

Specifications
 ModelG4PH5OUD
 BrandInternational Rectifier
 Mounting TypeThrough Hole
 PackageTO-247AC
 No. of Pin03
 Drain-Source Voltage
1200V
 Drain-Current Continous24A
 Operating Temperature -50 to + 150°C
 Type of Control ChannelN -Channel
 Power Dissipation |TC= 25°C|200W
Country of OriginChina
