GPS Passive Sticker Antenna(V1.0)

₹188.63 (Including tax)

Frequency (MHz): 1575 +/- 20
Gain: > 2.5dBi
Impedance (Ω): 50
Connector Type: IPEX MHF1 Female
Cable Length: 100 mm
VSWR : <2.0

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹179.20 (Including tax)
11 - 20	8%	₹173.54 (Including tax)
21 - 40	10%	₹169.77 (Including tax)
41 - 100	12%	₹165.99 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

10 People watching this product now!

SKU: rz24324041 Category: GPS Modules

Description

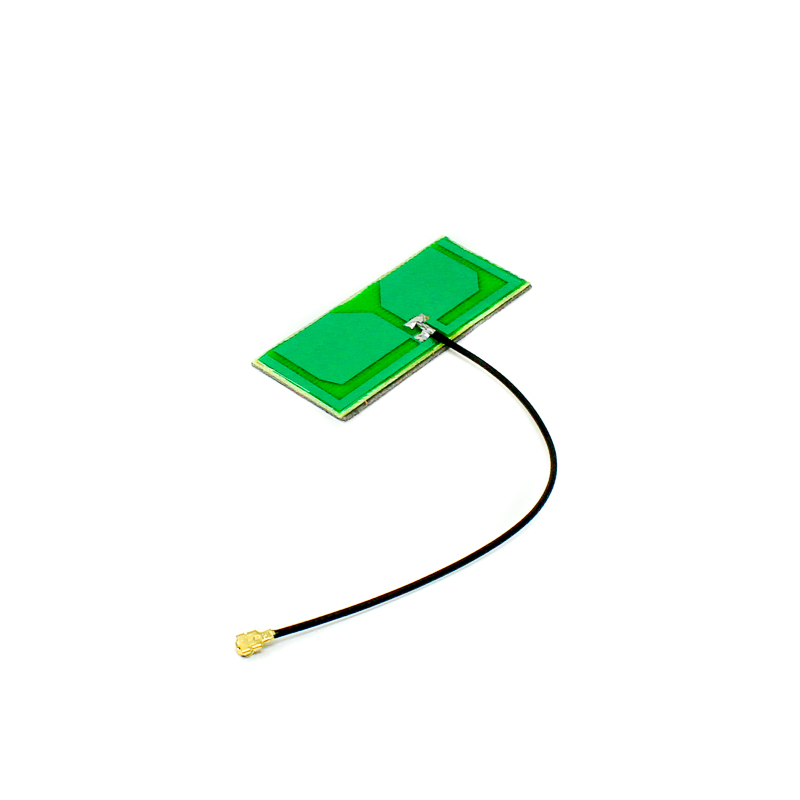

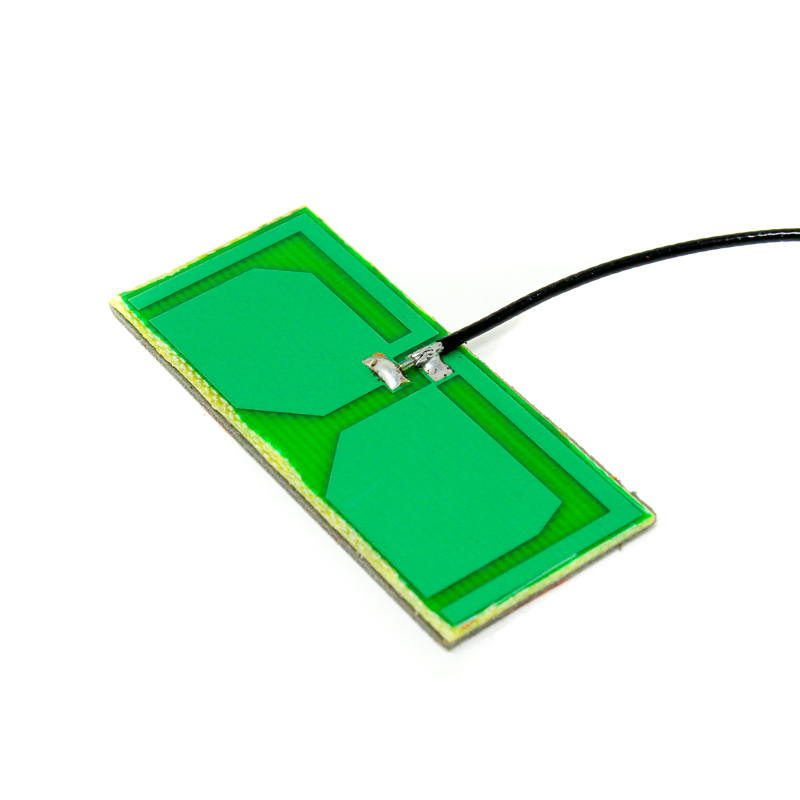

This is a PCB Patch Antenna having a frequency of 1575 +/- 20MHz with > 2.5dBi dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in GPS applications. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.

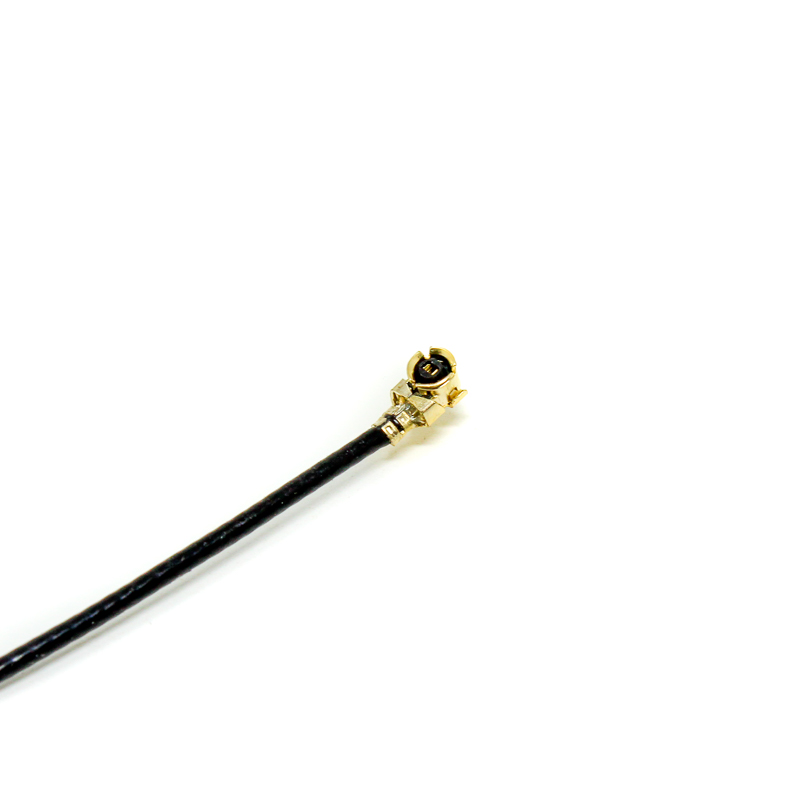

This antenna comes with an IPEX MHF1 Female connector to connect with the application. (We can also arrange your Required connector if you need the antenna in bulk quantity)

Application: GPS

Features:

Internal PCB Antenna for GPS Applications
Compact Size
High quality
Low cost

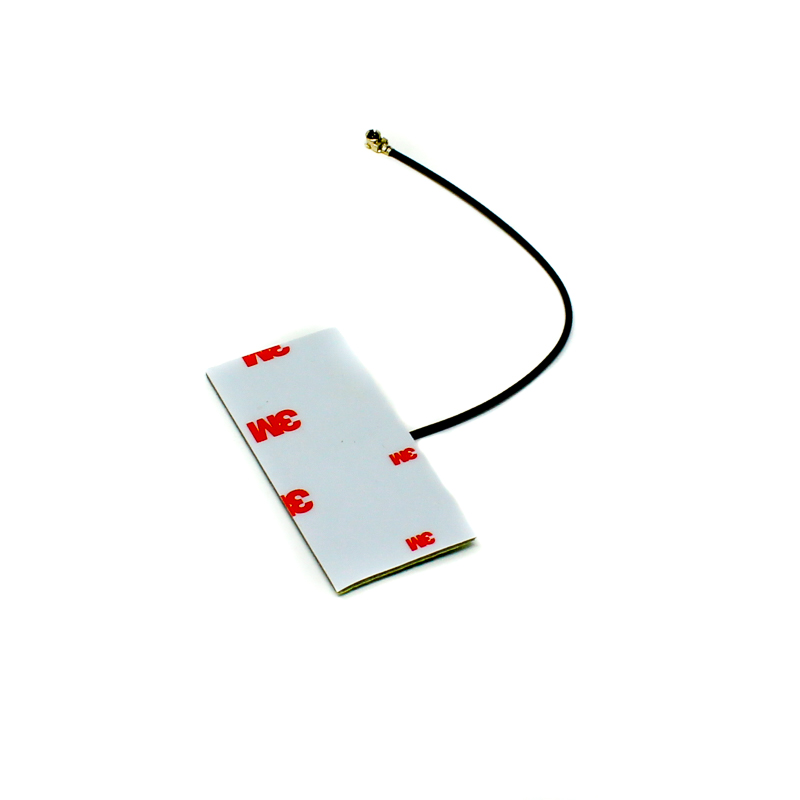

3M high-quality adhesive
Masking for corrosion-free

Package Includes:

1 x LWC-GPS-passive LP-03-(V1.0) Patch antenna

Additional information

Model	LWC-GPS-passive LP-03-(V1.0)
Frequency Range	1575 +/- 20MHz
Antenna Gain	> 2.5dBi
Impedance (Ω)	50
VSWR	< 2.0
Cable Length (mm)	100
Connector Type	IPEX MHF1 (female)
Power Handling (W)	2
Operating Temperature Range (°C)	-40 to 85
Opt. Relative Humidity(RH)	15% ~ 75%
Weight (g)	5
Body Dimensions (Dia. x Length) mm	20 x 47
