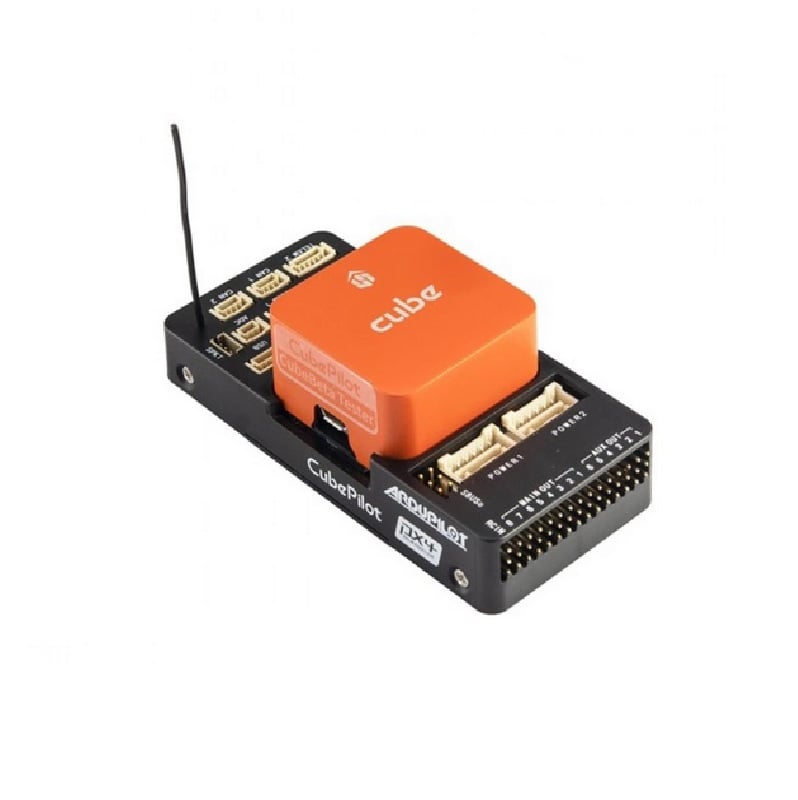

Hex Pixhawk 2.1 cube PX4 PIX 32 Bit Flight Controller Autopilot

SKU: rz24310992
In Stock

48,940.00

  1. Product: Flight Controller Autopilot
  2. Model: HX4-06159
  3. Input voltage: 3.3 V / 5 V
  4. Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
  5. Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware





In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

The Cube Orange Standard Set + ADS-B  flight controller comes with an H7 processor, features a 1,090 MHz ADS-B receiver from Avionic, automatically avoids aircraft, and Is integrated into the new ADS-B carrier board!  Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot.


Features:

  1. Built-in IMU Heating system, allowing flights at extreme temperatures (below freezing)
  2. Robust DF17 Interface connectors give enhanced drop and shock resistance
  3. Air-frames: VTOL, Plane, Multi-copter, Traditional Heli, Rover, Boat, Sub, General Robotics

The Cube Orange:

  1. Cube Orange targets education, amateur drone lovers, and professionals with cost-effective flight control hardware.
  2. Includes new generation of more powerful H7 processor, with stronger performance, faster processing, and increased security with built-in
  3. triple-redundant sensors, temperature control shock absorption IMU.
  4. With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter, or multi-rotor vehicle and turn it into a more professional UAV platform.

ADS-B Carrier Board

  1. A standard carrier board with an integrated 1090MHz ADS-B receiver allows the software to receive information about the location of manned aircraft in the area.
  2. Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
  3. Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that is within an exclusion zone set by you

Packages Includes:

1 x Hex Pixhawk 2.1 cube PX4 PIX 32 Bit Flight Controller Autopilot

Box Contain:

1 x The Cube Orange – the brains behind the operation.
1 x A standard carrier board with ADS-B
1 x Power Brick (two power bricks can be used for redundant power.)
1 x Cable set that allows you to connect to your old Telemetry module, GPS, and sensors





Additional information

Sensors

Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor

Power input voltage/rated input current

4.1-5.7 V / 2.5 A

Power-rated output/input power

14 W

USB port input voltage/rated input current

4-5.7 V / 250 mA

Servo rail input voltage

3.3 V / 5 V

Not Waterproof

External waterproof protection is needed

Operation Temperature

-10 °C / 55 °C

Cube Orange Housing Material

CNC Aluminum Alloy

Standard Carrier Board Housing Material

ABS Molding
