Hobbywing quickrun 1060 60A brushed ESC1073166

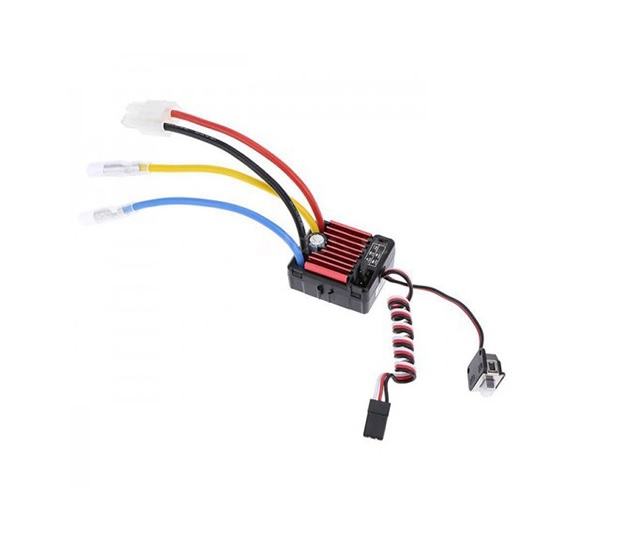

This is an HobbyWing QuicRun 1/10 Waterproof Brushed 60A Electronic Speed Controller ESC

Easy Operation
This ESC is specially designed for new beginners and intermediate modellers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners

Features:

1. For: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
2. Water-proof and dust-proof, suitable for all-weather condition races.
3. Small size with built-in capacitor module.
4. Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
5. Great current endurance capability.
6. Great built-in BEC output capacity.
7. Automatic throttle range calibration, easy to use.
8. Easy to set the ESC parameters with jumpers.
9. Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.

Specification:

1. Model: Wp-1060-BRUSHED
2. Fwd. Cont. / Peak Current: 60A /360
3. Rev. Cont. / Peak Current: 30A /180A
4. ESC Mode Forward/Reverse
5. Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
6. Motor Limit: *WP-860-DUAL-BRUSHED has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turns of the motors need to be increased.
   1. 2S Lipo or 6 NiMH
      1. 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V
   2. 3S Lipo or 9 NiMH
      1. 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
   3. 4S Lipo or 12 NiMH
      1. Not Available
7. Max Nimh Volt Rating 10.8v / 9 cell
8. Max Lipo Volt Rating 11.1v / 3s
9. ESC Type For Brushed Motors
10. Cooling Fan: Without cooling fan
11. Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

Package Includes :

1 x Hobbywing Quickrun 1060 60A brushed ESC
