Product details

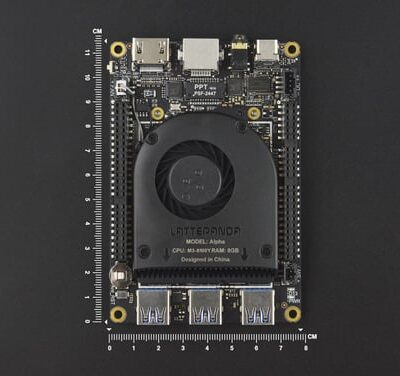

The LattePanda 2 Alpha based on Intel Core m3-8100Y, is a Dual-Core 1.1GHz CPU that bursts up to 3.4GHz, Intel UHD Graphics 615 integrated into the processor delivers enhanced media conversion, fast frame rates, and 4K Ultra HD (UHD) video. All of this computing power dissipates only 8W power, which is the perfect choice in terms of features and price as the main robotics controller, interactive project core, IoT edge device, or AI brain.
The LattePanda 2 Alpha is perfect for makers alike who need a small, portable, and light SBC for their ultimate project! DIY project running Windows or Linux, LattePanda SBC has been a popular hit and choice for many people who wish to enjoy playing all of their old and new favorites from one small, powerful system. Given its incredibly small size, it can be easily hidden, functioning as the secretly powerful brains behind your coolest project ever.
Features:
- Intel Core M3-8100Y, Dual-Core, 1.1-3.4GHz
- Intel UHD Graphics 615
- 8GB Memory
- Dual-Band 2.5GHz/5GHz Wi-Fi & Bluetooth 4.2 & Gigabit Ethernet
- USB3.0 x3 USB Type-C x1
- 2 x M.2 PCIe (Support B&M Key and A&E Key)
- Support Windows 10 & & Linux OS
- Integrated Arduino Coprocessor ATMEL 32U4
- Powered by PD adapter / 12V DC / 7.4V battery
Specifications:
- CPU: Intel Core m3-8100y
- Core: 1.1-3.4GHz Dual-Core, Four-Thread
- Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
- Graphics: Intel HD Graphics 615, 300-900MHz
- RAM: 8GB LPDDR3
- External Memory:
- 1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SDD
- 1x M.2 E Key, PCIe 2x, Supports USB2.0, UART, PCM
- Connectivity:
- WIFI 802.11 AC, 2.4G & 5G
- Dual-Band Bluetooth 4.2
- Gigabit Ethernet
- USB Ports:
- 3x USB 3.0 Type A
- 1x USB Type C, supports PD, DP, USB 3.0
- Display:
- HDMI Output
- Type-C DP Support
- Extendable eDP touch display
- Co-processor: Arduino Leonardo
- GPIO & Other Features: 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC, Power Management, Extendable power button, everything you need
- OS Support: Windows 10 Pro, Linux Ubuntu
- Dimension: 115mm x 78mm x 14 mm
Useful Links:
- LattePanda official community
- LattePanda Documentation
- FCC/CE Certifications
- Tutorial: Install Linux
- Tutorial: Adjust Cooling Fan
Package Includes:
1 x LattePanda Alpha 864s
1 x Active cooling fan (Assembled)
1 x 45w PD Power adapter (with EU & US standard power cord)
1 x Dual-band antenna
1 x RTC Battery (Assembled)
1 x User Manual
