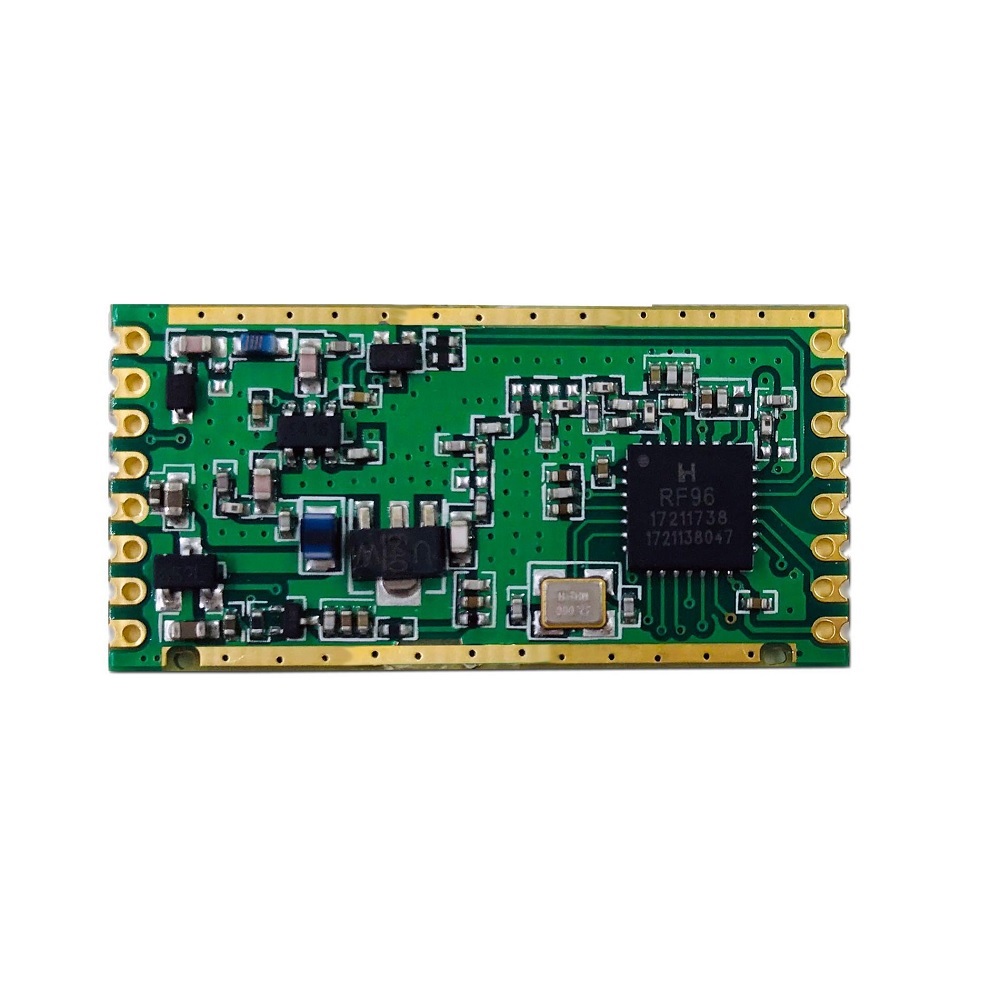

LoRa module RFM95PW-868S2.

FM98PW/RFM95PW module series’ design is based on the high-performance LoRa TM modulation technique RF98/RF96 chip, It operates at  169/433/470MHz (RFM98PW) and 868/915MHz(RFM95PW) ISM band, The low receive sensitivity(–136dBm) coupled with Enhanced +30dBm output power ensures extended range and improved link performance.

Applications:

1. Long Range system.
2. Meter Reading.
3. Wireless data collection.
4. Automobile security system.
5. Home automation and security system.

Features:

1. LoRa TM Modem.
2. 166dB maximum link budget.
3. FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
4. Built-in bit synchronizer for clock recovery.
5. Automatic RF Sense and CAD with ultra-fast AFC.
6. Packet engine up to 256 bytes with CRC.
7. Built-in temperature sensor and low battery indicator.

Specifications:

1. Programmable bit rate:  300 kbps.
2. High sensitivity: down to -136dBm.
3. Low RX current: 13mA.
4. SMD Package (35.4x18X3.85mm).

Packages Includes:

1 x LoRa module RFM95PW-868S2.
