₹1,627.05 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹1,545.69 (Including tax) |
11 - 20 | 8% | ₹1,496.88 (Including tax) |
21 - 40 | 10% | ₹1,464.35 (Including tax) |
41 - 100 | 12% | ₹1,431.79 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

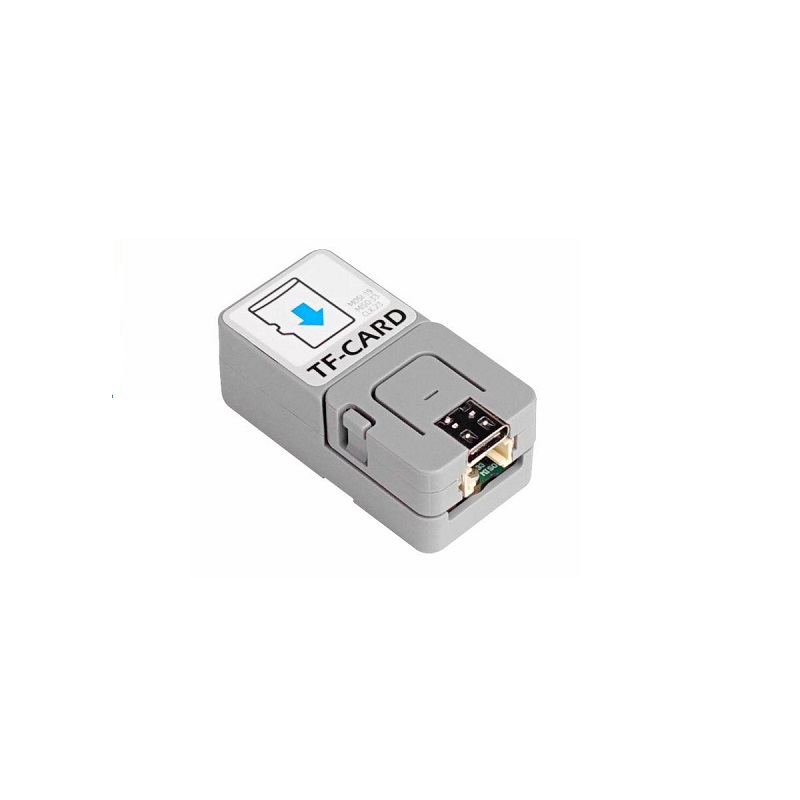

ATOM TF-CARD is an Atomic based TF-card(microSD) module.It has a self-elastic TF card slot, which can support up to 16GB capacity TF cards. You can save important configuration files and user data in the program to TF card, or call these files at any time during the program operation. The use of TF card reading and writing modules can greatly reduce the occupation of precious flash space by external resource files.

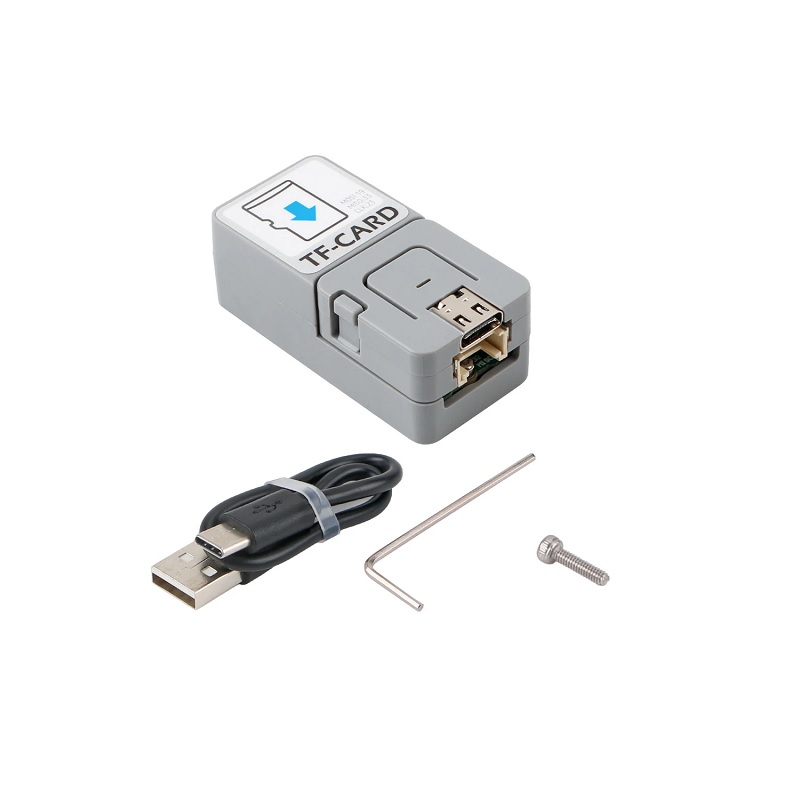

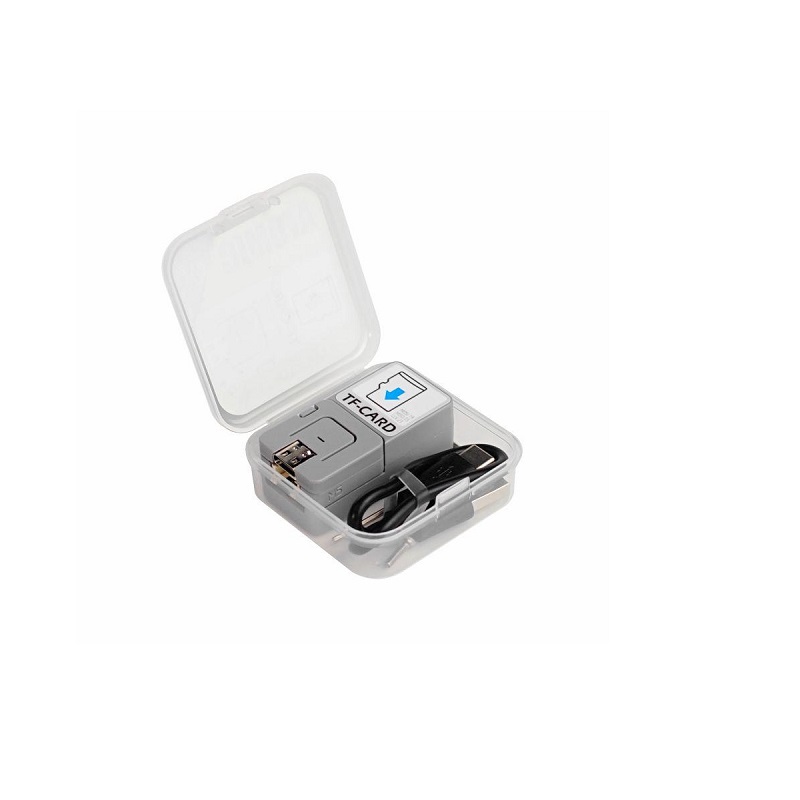

1 x ATOM TF-Card Development Kit
Support type |
16G FAT/FAT32 MicroSD |
---|---|
Length (mm) |
24 |
Width (mm) |
48 |
Height (mm) |
18 |
Weight (gm) |
23 |
