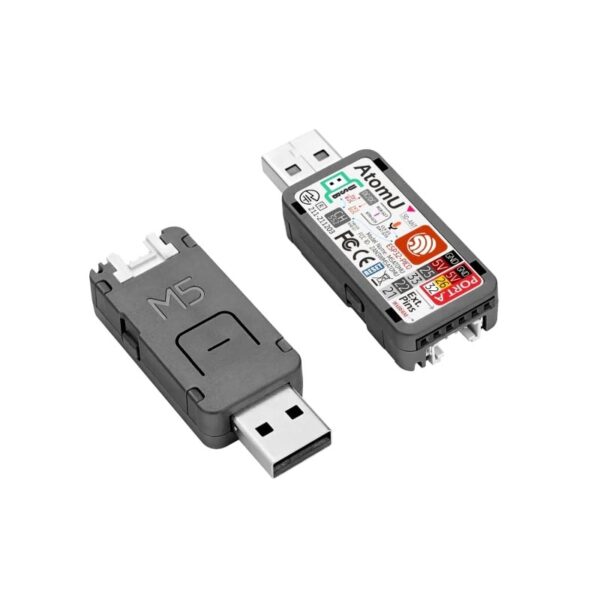

M5Stack AtomU ESP32 Development Kit with USB-A

17 People watching this product now!

SKU: rz24313901 Category: Development Board/Kit

Description

ATOM U is a compact low-power consumption speech recognition IoT development kit. It adopts an ESP32 chipset, equipped with 2 low-power Xtensa 32-bit LX6 microprocessors with the main frequency of up to 240MHz. Built-in USB-A interface, IR emitter, programmable RGB LED. Plug-and-play, easy to upload and download programs. Integrated Wi-Fi and digital microphone SPM1423(I2S) for the clear sound record. suitable for HMI, Speech-to-Text (STT).

Features:

1. Low Code development
2. High integration
3. ATOM U supports UIFlow graphical programming platform
4. ATOM U contains a USB-A port for programming/power supply
5. Strong expandability
6. ATOM U is easy access to M5Stack’s hardware and software system
7. ESP32-PICO-D4 (2.4GHz Wi-Fi dual mode)
8. Integrated programmable RGB LED and button
9. Compact design
10. Built-in IR emitter
11. Expandable pinout and GROVE port
12. Development platform:
  - UIFlow
  - MicroPython
  - Arduino

Packages Includes:

1 x M5Stack Atom U ESP32 Development Kit with USB-A

Additional information

Brand	M5 Stack
Product Type	Development kit with USB
ESP32-PICO-D4	240MHz dual core , 600 DMIPS , 520KB SRAM , 2.4G Wi-Fi
Microphone	SPM1423
Microphone sensitivity	94dB SPL@1KHz Typical value: -22dBFS
Standby working current	40.4mA
Microphone signal-to-noise ratio	94dB SPL@1KHz , A-weighted Typical value: 61.4dB
Frequency Range	100Hz ~ 10KHz
Support PDM clock frequency	1.0 ~ 3.25MHz
Weight (g)	8.4g
Product Dimension	52 x 20 x 10mm
