M7 / 1N4007 SMD Diode (Pack of 10)

Name: M7 / 1N4007 SMD Diode (Pack of 10) - Robozar
Brand: Robozar
SKU: rz24332111
Price: 10.35 INR
Availability: OutOfStock
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

₹12.21 (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹11.59 (Including tax)
11 - 20	8%	₹11.24 (Including tax)
21 - 40	10%	₹11.00 (Including tax)
41 - 100	12%	₹10.75 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

20 People watching this product now!

SKU: rz24332111 Categories: All Products, Components, Featured Products, Latest Products, SMD Components, SMD Diodes Tags: [C] SMD Diodes, Diode, M60_Low_Value, Rectifier Diode, SMD Diode, zener diode

Description

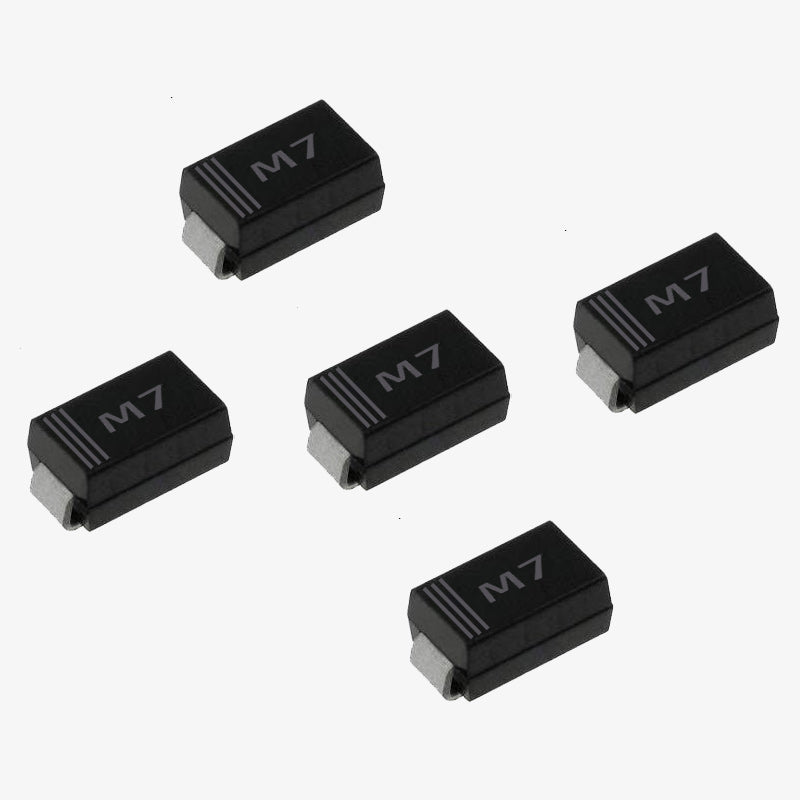

M7 Diode is nothing but SMD version of 1N4007 Diode. Features of M7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.

Features :

SMD Version of 1N4007
Forward Current: 1A
Max Repetitive Reverse Voltage: 1000 V
Max RMS Voltage: 700V
Max DC Blocking Voltage: 1000V
Max instantaneous forward voltage: 1.1 V

Mechanical Characteristics :

Case : JEDEC DO-214AC molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Color band denotes cathode end.

Specifications :

Peak Repetitive Reverse Voltage (VRRM)	1000V
Maximum RMS Voltage (VRMS)	700V
Maximum DC Blocking Voltage (VDC)	1000V
Maximum Average Forward Rectified Current (IFAV)	1A
Non-Repetitive Peak Forward Surge Current (IFSM)	30A
Operating Junction Temperature Range (TJ)	− 65°C to +175°C
Storage Temperature Range (Tstg)	− 65°C to +175°C
Quantity	10 Pieces

Package includes :

M7 / 1N4007 SMD Diode x 10piece

Reviews (2)

Rated 5 out of 5

2 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

2 reviews for M7 / 1N4007 SMD Diode (Pack of 10)

Clear filters

Rohit Reddy (verified owner) – February 5, 2024
Rated 5 out of 5
Good support and the best price. Robozar is my go-to for electronic components.
0
0
Rohan Kapoor (verified owner) – March 26, 2024
Rated 5 out of 5
The product came in great shape and the quality is top-notch. Robozar is excellent!
0
0
