₹3,472.57 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹3,298.93 (Including tax) |
| 11 - 20 | 8% | ₹3,194.76 (Including tax) |
| 21 - 40 | 10% | ₹3,125.31 (Including tax) |
| 41 - 100 | 12% | ₹3,055.85 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

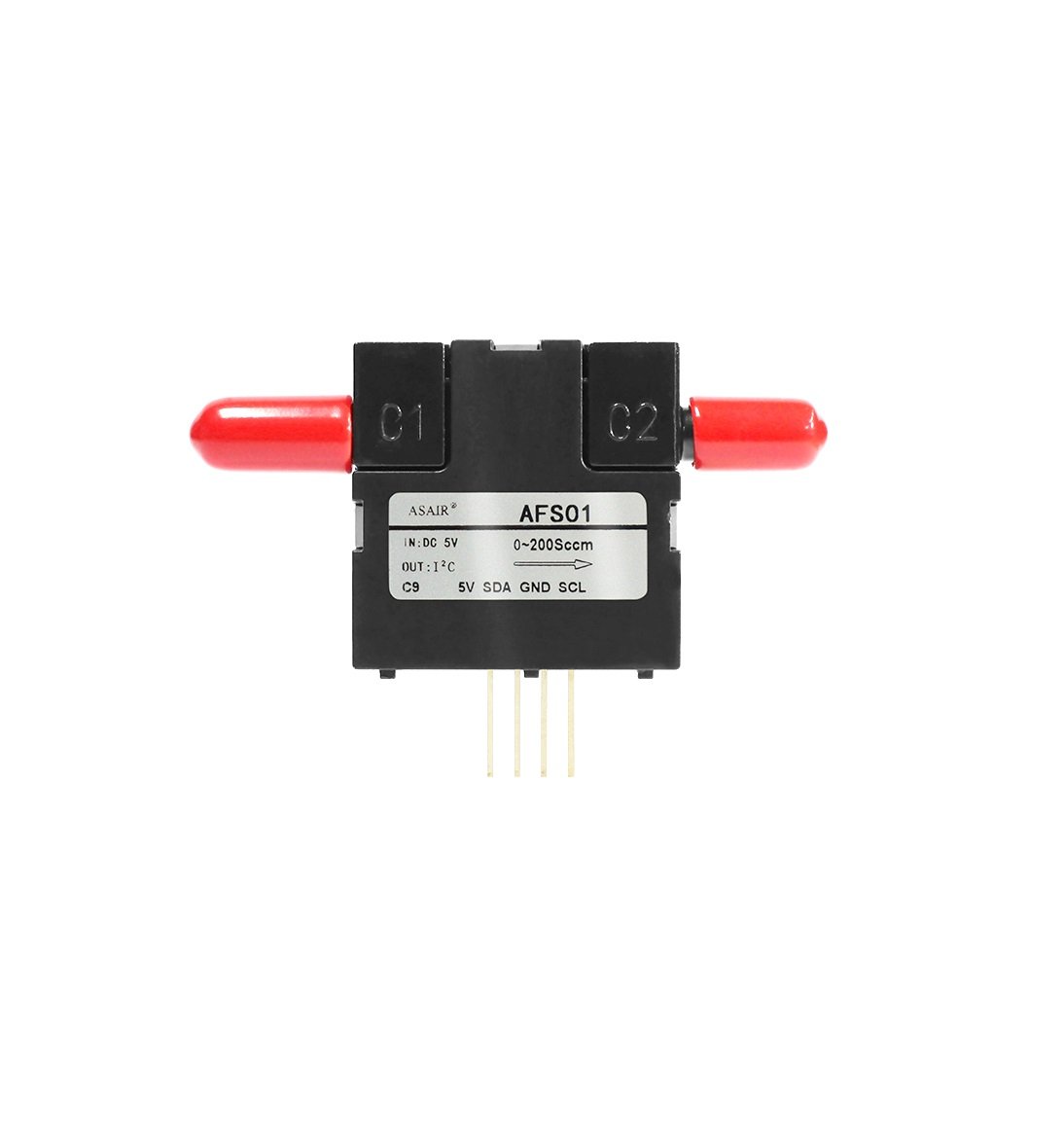

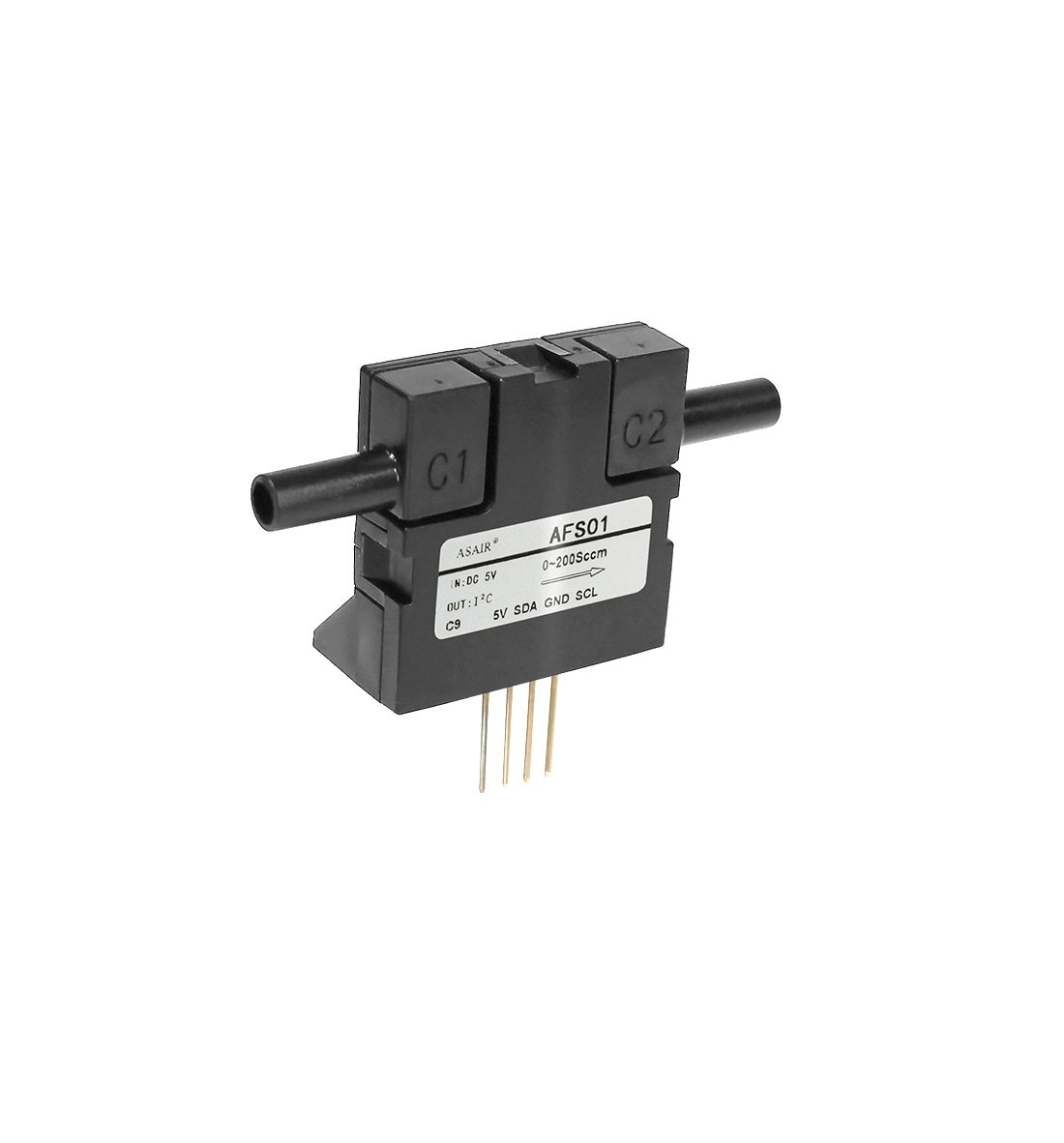

AFS01 is a highly accurate and fully calibrated micro-flow sensor for measuring non-corrosive gases, such as oxygen and nitrogen, which ensures high reliability and excellent long-term stability. The sensor includes a flow detection element and a high-performance CMOS microprocessor with 24bitAD acquisition. The product has the excellent quality, super-fast response, strong anti-interference ability, High quality and low price and so on. High integration, very suitable for high quality, mass production requirements, is a good choice for users, easy to partner with manufacturers of OEM applications.
1 x Microflow sensor Model AFS01
| Product Type |
Micro flow sensor |
|---|---|
| Model No. |
Model AFS01 |
| Supply voltage |
5V |
| Range specification |
20 ,30 ,50 ,100 ,200 ,500 ,1000 ,1200 ,2000 sccm |
| Test gases |
Air ,N2 ,O2 ,non – corrosive gases |
| Repeatability |
± 0.3 ~ ± 5 % FS |
| Accuracy |
± 3 ~ ± 5 % FS |
| The response time |
30 – 500ms |
| Zero drift |
± 0.2 ~ ± 0.5 % |
| The flow range |
0 – 200 sccm |
| Storing temperature |
-25 ~ + 90 ℃ ; |
| Operating temperature |
-25 ~ + 80 ℃ |
