DFRobot Gravity H2 Sensor (Calibrated) &#8211; I2C, UART and analog

16 People watching this product now!

SKU: rz2439922 Category: Gas and Dust Sensor

Description

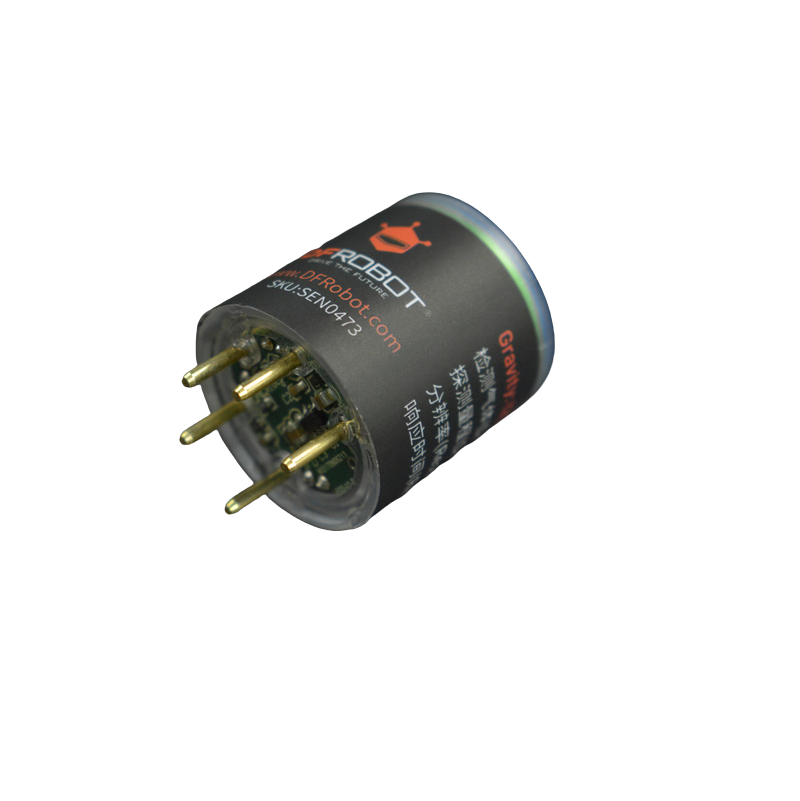

This is a sensor that detects hydrogen concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of hydrogen in the environment. Can be widely used in the detection of hydrogen in industrial and environmental protection fields.The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years.

The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino ESP32, and RASPBERRY PI. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a hydrogen concentration detector.

DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

Application:

Industrial hydrogen fluoride detection
Environmental protection device

Connection Diagram

Features:

Factory calibrated, accurate measurement
High sensitivity, low power consumption
Excellent stability and anti-interference
Three output modes: I2C, UART and analog
Long service life(2 years)
Compatible with 3.3~5.5V main controllers
32 modifiable I2C addresses
Reverse connection protection
Temperature compensation
Threshold alarm
It use I2C, UART and analog communication protocol to make smooth commutation between sensor and micro-controller.

Package Includes:

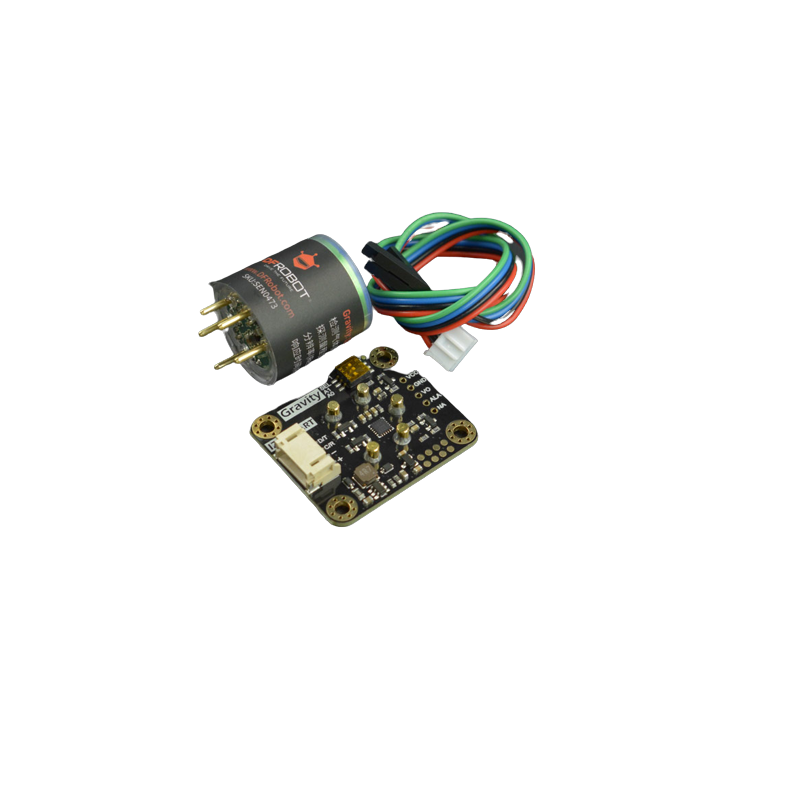

1 x DFRobot Gravity H2 Sensor (Calibrated) – I2C, UART and analog

Additional information

Detection Gas	Hydrogen (H2)
Detection range	0~1000ppm
Working Voltage	3.3～5.5V DC
Working Current	＜5mA
Output Signal	I2C , UART (0~3V) , analog voltage
Working Temperature	-20～50℃
Working Humidity	15～90%RH (non-condensing)
Storage Temperature	-20～50℃
Communication Protocol	I2C , UART and analog
Compatibility	Arduino , ESP32 , Raspberry pi
Storage Humidity	15～90%RH (non-condensing)
Lifespan	>2 years (in the air)

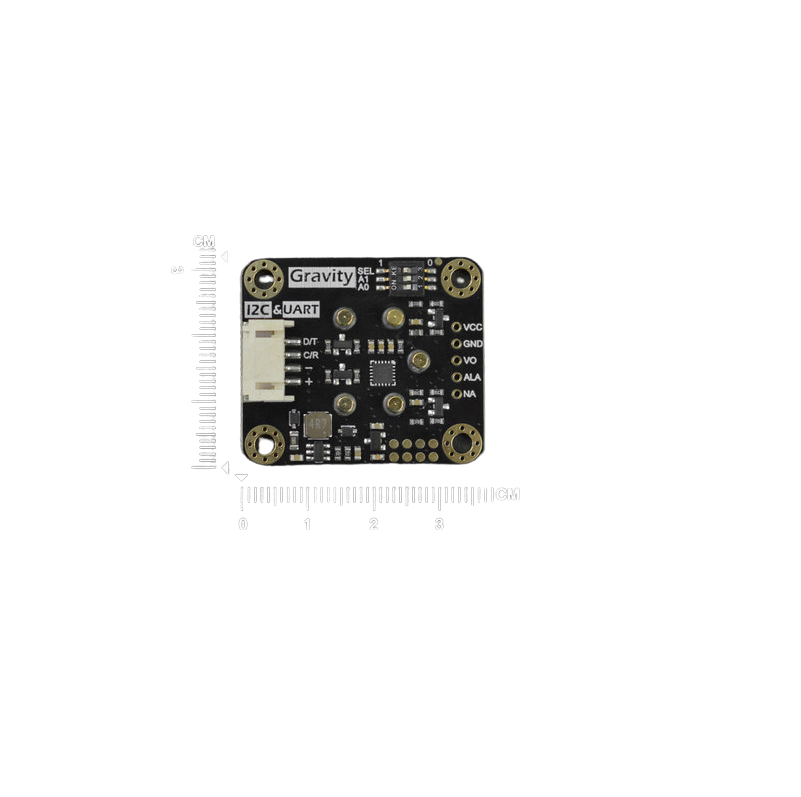

Adapter Plate Size	37 x 32mm
