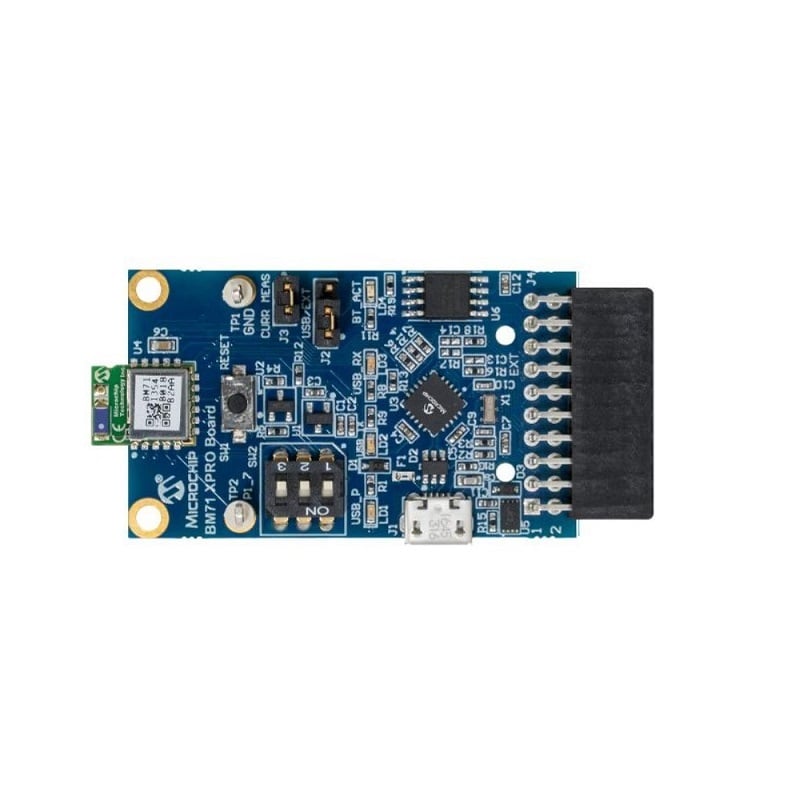

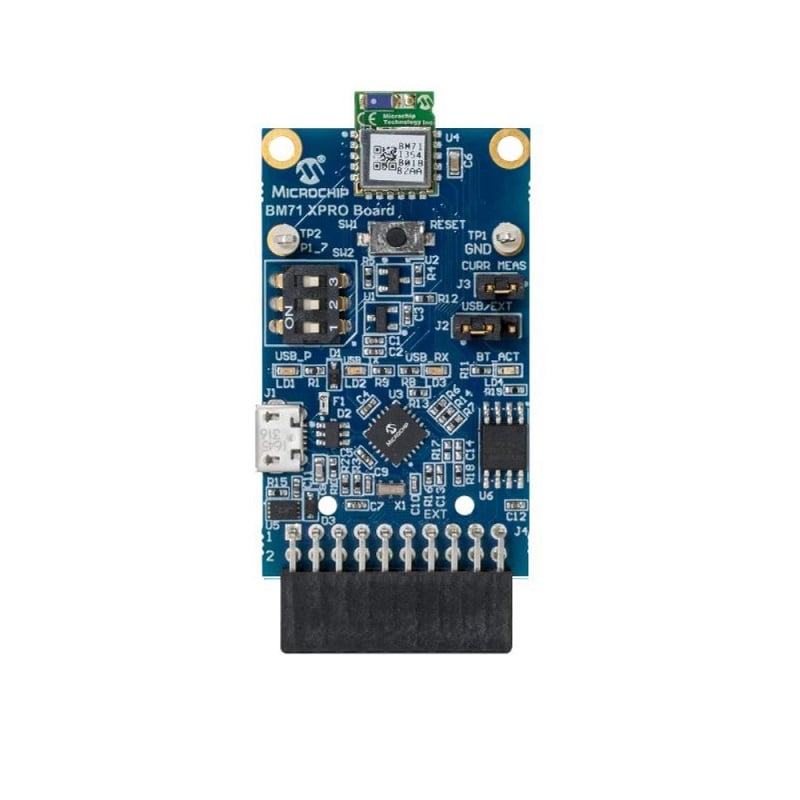

MICROCHIP XPRO EXTENSION BOARD WITH BLE

11,058.19 (Including tax)

  1. Product: MICROCHIP XPRO EXTENSION BOARD WITH BLE
  2. 3.3V LDO for power regulation
  3. SPI flash for storing firmware images (DFU OTA)
  4. Switch for BM71 operation mode
  5. Switch to turn all LEDs off for current measurement
  6. Switch for GPIO control

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%10,505.28 (Including tax)
11 - 208%10,173.54 (Including tax)
21 - 4010%9,952.38 (Including tax)
41 - 10012%9,731.21 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

20 People watching this product now!
SKU: rz2436050 Category:
Description

BM71-XPRO board is designed to be able to easily add Bluetooth Low Energy (BLE) functionality to your XPRO development tools. It can be used as an extension to your favourite SAMx or AVRx XPRO boards or can be used standalone. The BM71 XPRO is fully supported within Atmel Studio with example code in ASF3.

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.


Features:

  1. USB-UART Bridge (MCP2200) for Host PC Operation
  2. On Board 3.3V LDO for Power Regulation
  3.  On Board SPI Flash for Storing Firmware Images (DFU OTA)
  4.  Test Point for GPIO Pin (P1_3)
  5.  Reset Push Button
  6.  DIP Switch to Control:
    – BM71 operation mode
    – LED
    – GPIO pin
  7.  Passive RC Filters for PWM and ADC Inputs
  8.  Atmel Studio (ASF3), to Provide Predefined Application Examples
  9.  XPRO Extension Header
  10.  Header Pins for Current Measurement
  11.  Two Power Sources:
    – Micro USB
    – XPRO Connector

 Package Includes:

1 x MICROCHIP XPRO EXTENSION BOARD WITH BLE

Additional information
Model

DM164146

Silicon Core Number

BM71BLES1FC2 Module

Silicon Manufacturer

Silicon Manufacturer

For Use With

Microchip SAMx or AVRx XPRO Development Boards
