Product details

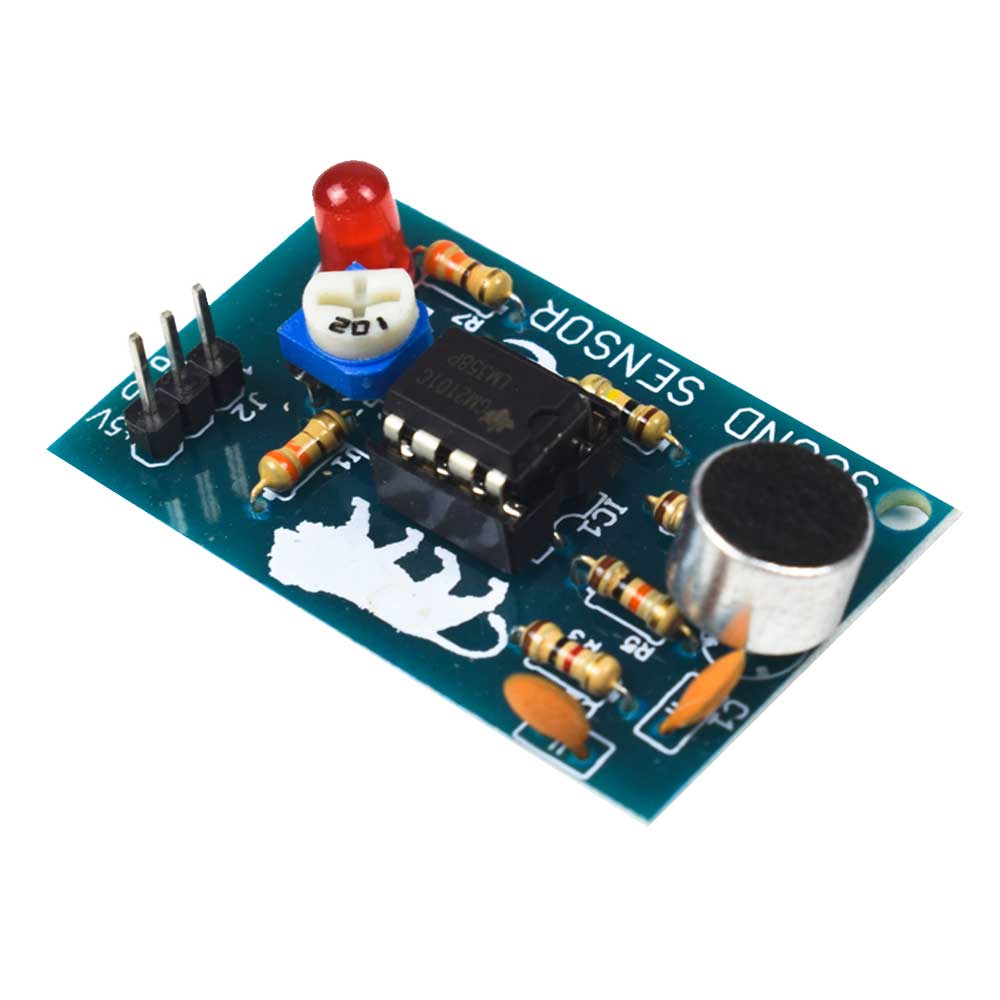

This is a Microphone Sound Sensor Module. It has an Adjustable Range using a preset or using a Potentiometer on board. The comparator output signal with amplification and a clean waveform is good, with a driving ability greater than 15mA. Using a photosensitive resistance sensor of the sensitive type. The module’s operating voltage ranges from 3.3V to 5V. Module output is a digital switch output.
Features
- It is capable to detect Noise, Music, and Sound type Signal.
Specification
| Product | Sound (MIC) Sensor Module |
| Type | Sound Sensor |
| Power Source | DC |
| Digital Output | logic one (+3.5V DC) logic zero (0V DC) |
| Operating Voltage | 5V DC |
| No of Pin | 03 |
| Dimension | 45*27mm |
| Make | Make in India |
| Country of Origin | China |
