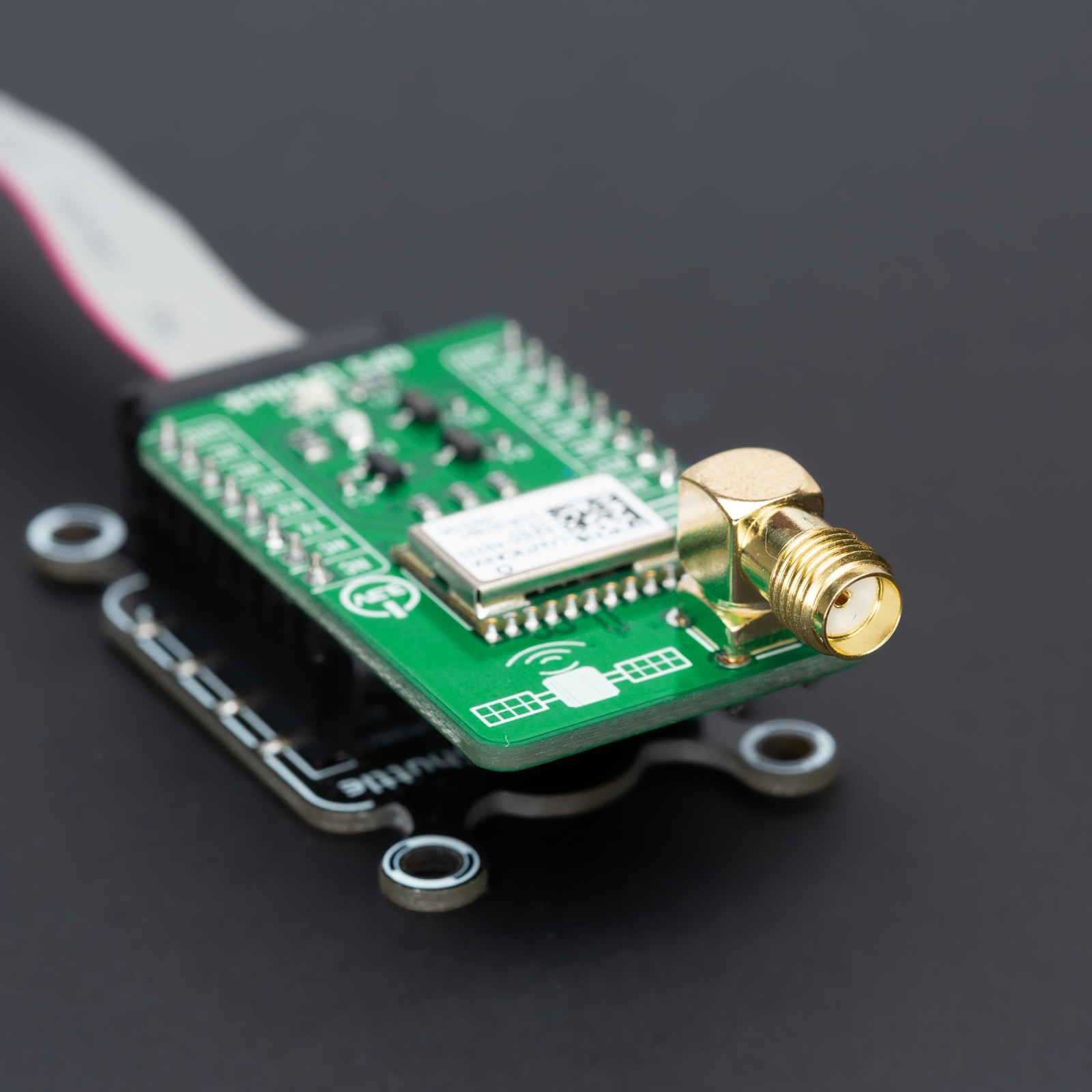

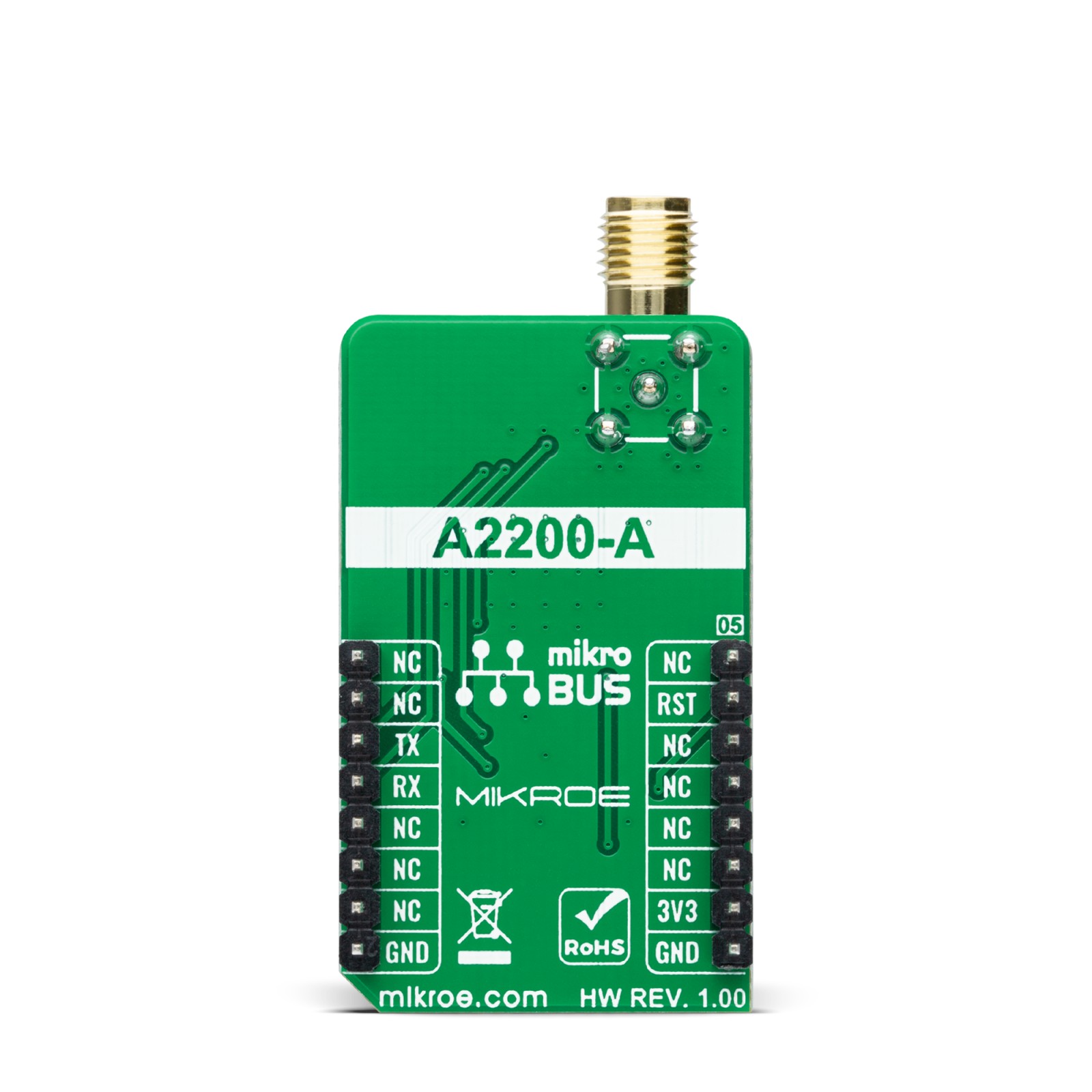

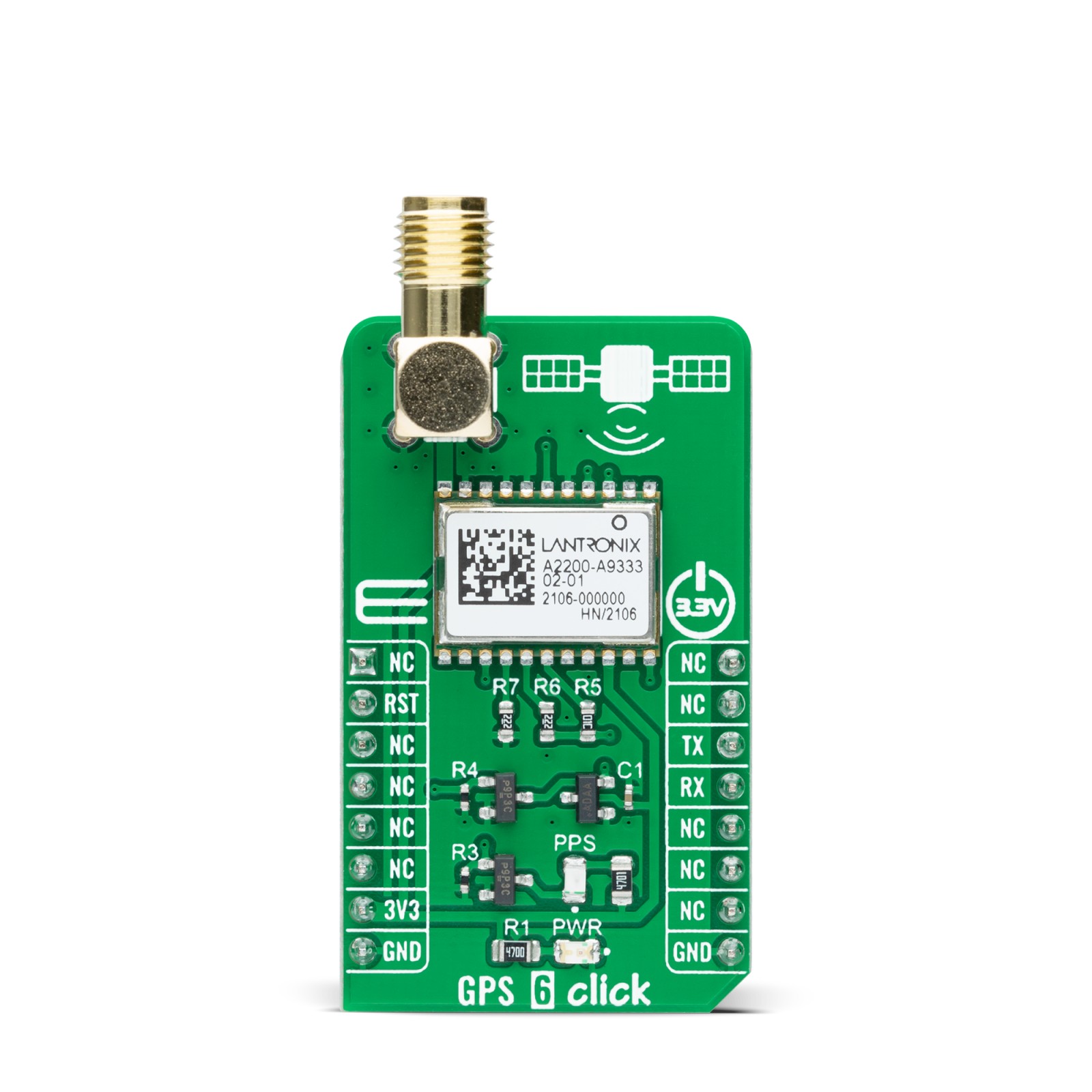

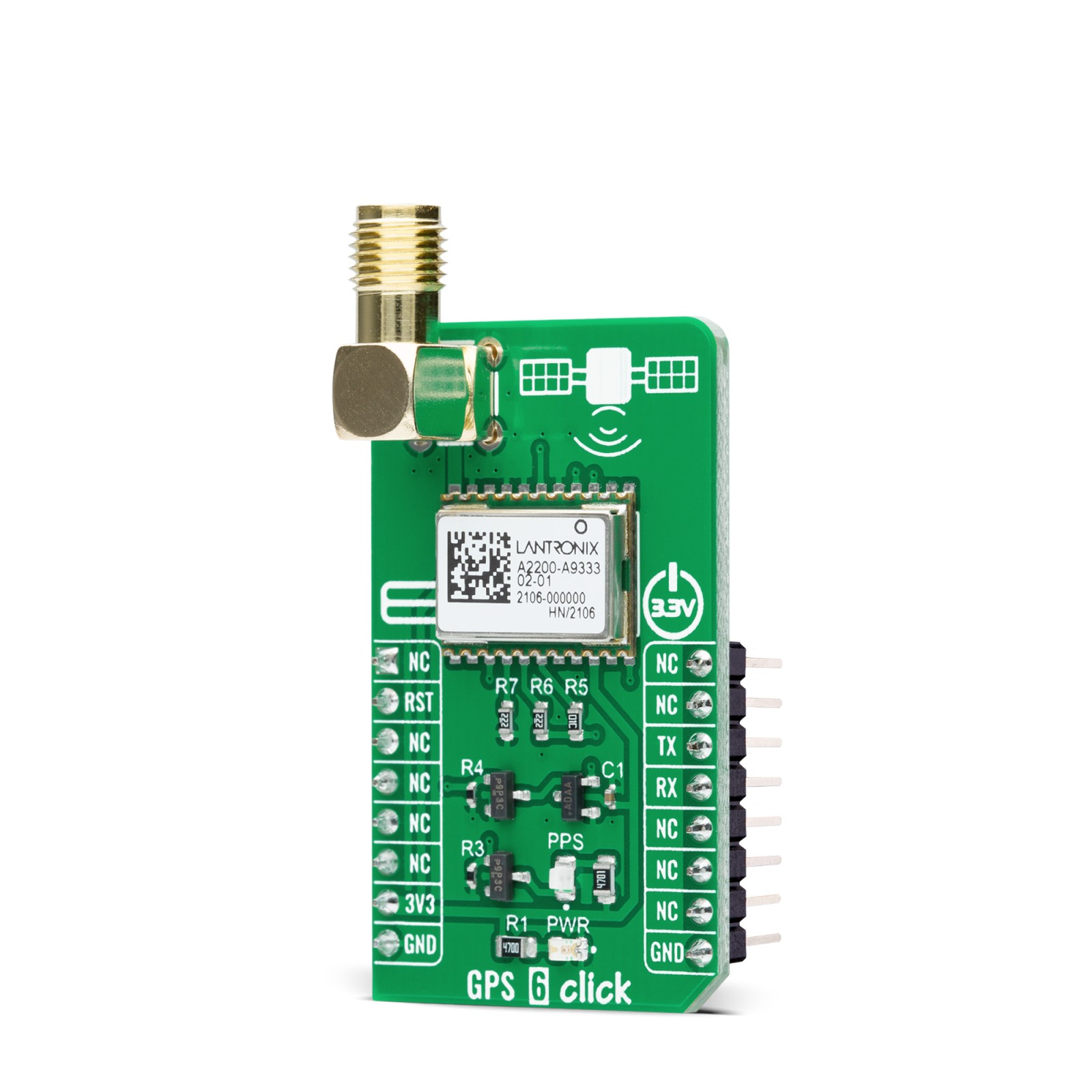

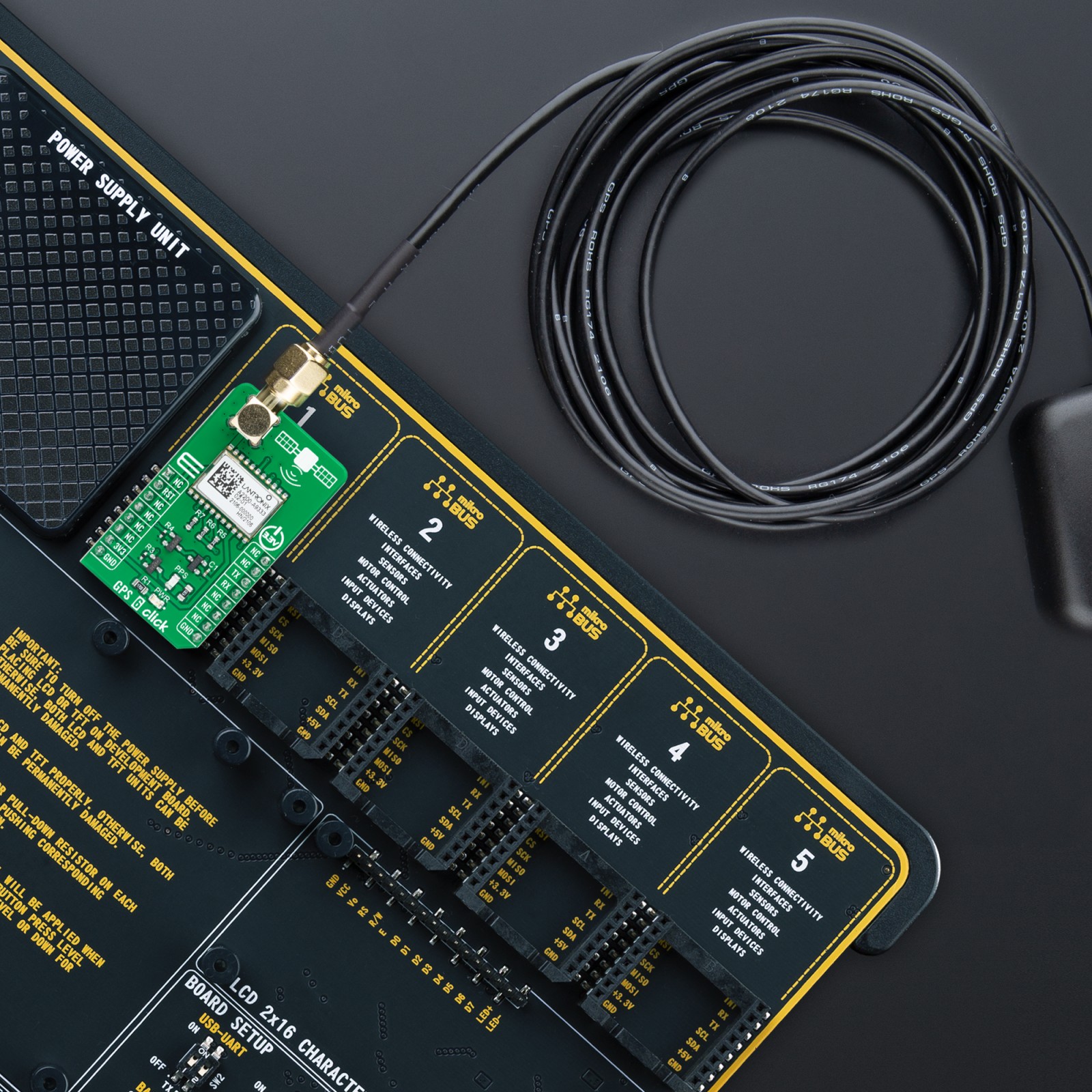

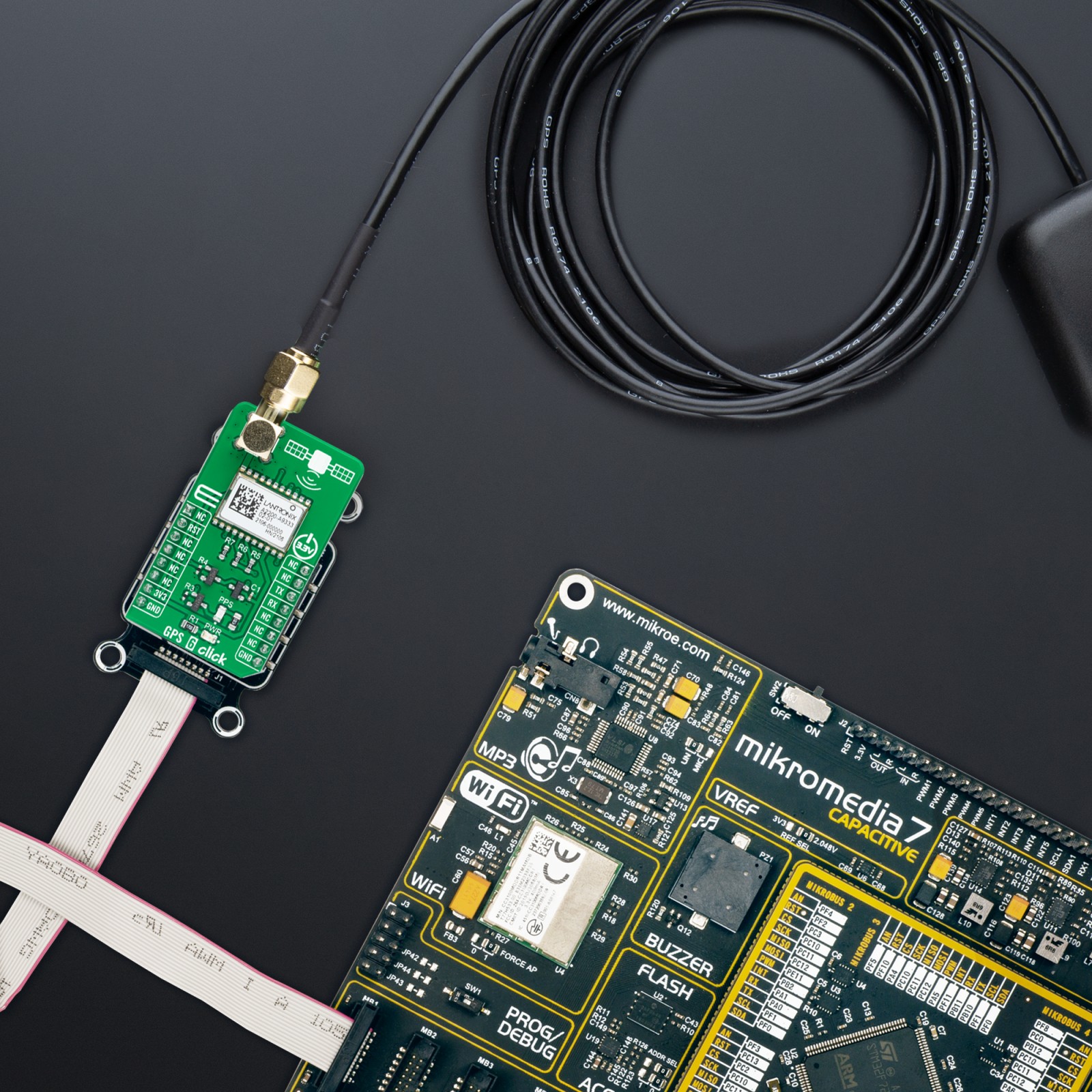

Mikroe GPS 6 Click Board

GPS 6 Click is a compact add-on board that provides users with positioning, navigation, and timing services. This board features the A2200-A, a GPS receiver module that enables fast acquisition and tracking with SiRFstar IV technology from Lantronix. This small-form-factor module operates with a frequency of 1,575GHz with accuracy from 2 up to 2.5m and fully addresses the demand for the lowest power consumption. The removal of jammers guarantees operation even in hostile environments.

High sensitivity during acquisition or while tracking allows for use in many different backgrounds and under the most challenging operating conditions. This Click board is suitable for a broad spectrum of GPS applications where performance, cost, and time to market are prime considerations.

GPS 6 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board comes as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.

Applications:  It can be used for a broad spectrum of GPS applications where performance, cost, and time to market are prime considerations

Overview:

Specifications and Features:

1. Type GPS/GNSS
2. Input Voltage 3.3V
3. Interface: UART
4. Compatibility: Micro-BUS
5. Board size: (42.9 x 25.4 mm)

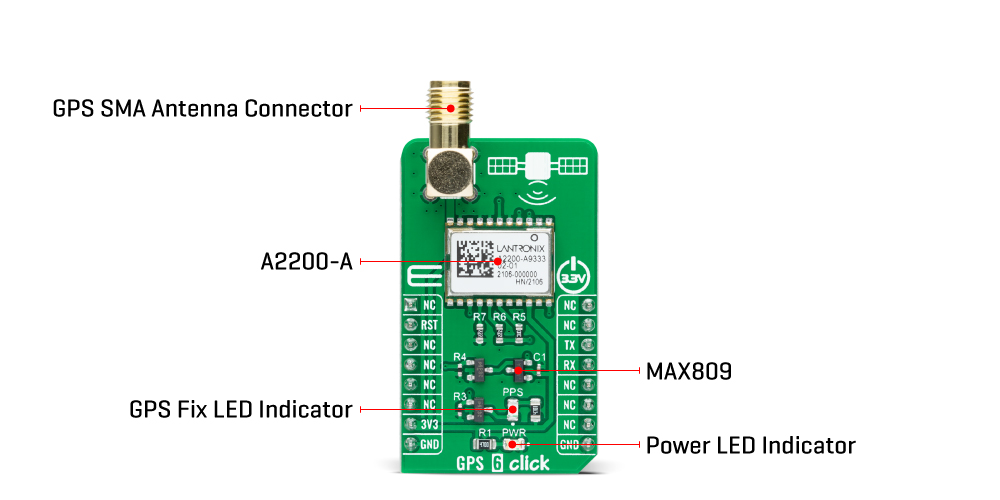

6. On-board modules:  A2200-A – high-performance Global Positioning System (GPS) module from Lantronix
7. Complete GPS module,
8. Direct passive antenna support
9. Jamming detection and removal,
10. Best acquisition and tracking sensitivity and low power consumption.

Useful Links:

• MikroBUS
• MikroSDK
• GPS 6 click example on Libstock
• GPS 6 click 2D and 3D files
• GPS 6 click schematic
• MAX809 datasheet
• A2200-A datasheet

Package Includes:

1 x Mikroe GPS 6 Click
