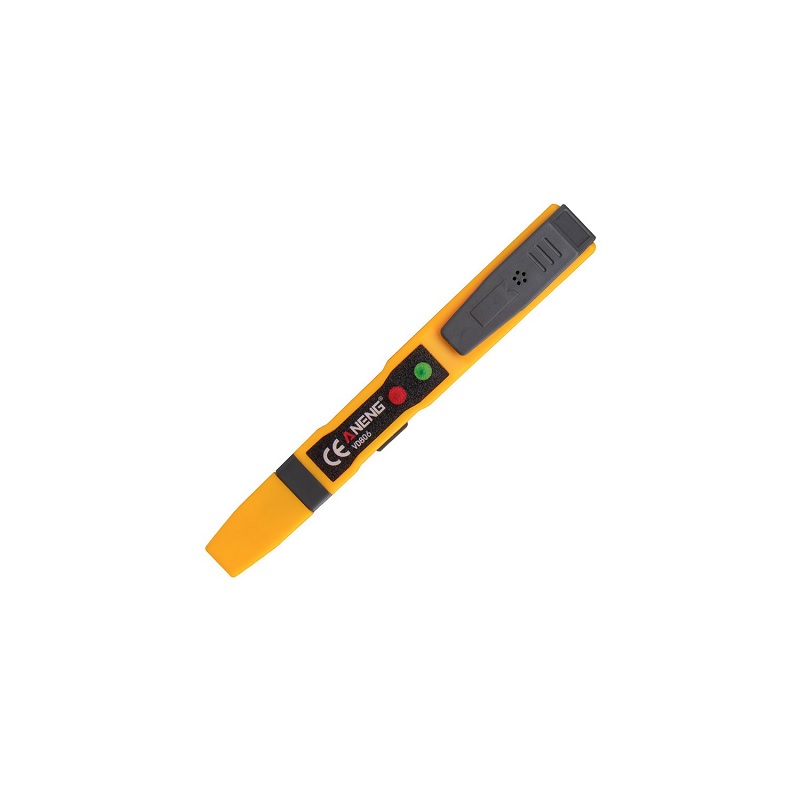

Non-Contact Type Inductive AC / DC Continuity Voltage Tester

SKU: 1031043
Out of stock

229.00

Add to Wishlist
Add to Wishlist
  1. Material: ABS
  2. Color: Yellow + Gray
  3. Power: AG13 Battery
Out of stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

This is a Non-Contact Type Inductive AC / DC Continuity Voltage Tester. A continuity tester is a  perfect tool kit for home and electrical industry uses. It has a long life and low power consumption also compact, simple, and easy to carry anywhere. This tester is good at its  Ideal design for testing power cables, circuit breakers, sockets, distribution boxes, fuses, etc.


Functions:

  1. H/L/O gear knob function: Fire-Neutral line/Continuity/Battery/Non-contact AC Voltage detection.
  2. Sound and light alarm.
  3. A perfect tool kit for home and electrical industry uses.
  4. Ideal design for testing power cables, circuit breakers, sockets, distribution boxes, fuses, etc.
  5. Long life and low power consumption.
  6. Compact, safe, and easy to carry.

Package Includes:

1 x Non-Contact Type Inductive AC / DC Continuity Voltage Tester

Additional information

Battery

AG13

Frequency Range

50 to 500 Hz

Material

ABS

Color

Yellow + Gray

Operating Temperature Range (°C)

-10 to 50

Length (mm)

140

Width (mm)

20

Height (mm)

15

Weight (gm)

25

Quick Comparison

SettingsNon-Contact Type Inductive AC / DC Continuity Voltage Tester removePlusivo Non-Contact AC Voltage Detector/Tester removeGreen 0-100A 22mm AD16- 22FSA Square Cover LED Ammeter Indicator Light with Transformer removeWhite 0-100A 22mm AD16- 22FSA Square Cover LED Ammeter Indicator Light with Transformer removeBlue AC50-500V 0-100A 0- 100Hz 22mm AD16-22AVHz Square LED Voltage Current Hertz 3 IN 1 Indicator removeWhite 20-75Hz 22mm AD16- 22DSHZ Square Cover LED Hertz Meter Indicator remove
NameNon-Contact Type Inductive AC / DC Continuity Voltage Tester removePlusivo Non-Contact AC Voltage Detector/Tester removeGreen 0-100A 22mm AD16- 22FSA Square Cover LED Ammeter Indicator Light with Transformer removeWhite 0-100A 22mm AD16- 22FSA Square Cover LED Ammeter Indicator Light with Transformer removeBlue AC50-500V 0-100A 0- 100Hz 22mm AD16-22AVHz Square LED Voltage Current Hertz 3 IN 1 Indicator removeWhite 20-75Hz 22mm AD16- 22DSHZ Square Cover LED Hertz Meter Indicator remove
SKU103104313207861364510136465513644881364667
Rating
Price229.00458.00279.00279.00387.00279.00
Stock
Out of stock
In Stock
In Stock
In Stock
In Stock
In Stock
AvailabilityOut of stockIn StockIn StockIn StockIn StockIn Stock
Add to cart

Read more

Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Description
  1. Material: ABS
  2. Color: Yellow + Gray
  3. Power: AG13 Battery
  1. High-quality ac voltage detector
  2. Product: AC voltage detector
  3. Dual sensitivity range wire tester
  4. Voltage: 12v-1000v/48v-1000v
  5. Working temperature: 0°C~40°C
  6. Operating Voltage: 3V DC (2 x AAA Battery not included)
  1. Easy for installation
  2. Compact & small in size
  3. This is a digital ammeter
  4. Good environmental Protections
  5. Very low Power consumption
  1. Easy for installation
  2. Compact & small in size
  3. This is a digital ammeter
  4. Good environmental Protections
  5. Very low Power consumption
  1. Easy for installation
  2. Compact & small in size
  3. This is a Triple display voltmeter,ammeter & hertz meter
  4. Good environmental Protections
  5. Very low Power consumption
  1. Easy for installation
  2. Compact & small in size
  3. This is digital Hertz Meter Indicator
  4. Good environmental Protections
  5. Very low Power consumption
Content

This is a Non-Contact Type Inductive AC / DC Continuity Voltage Tester. A continuity tester is a  perfect tool kit for home and electrical industry uses. It has a long life and low power consumption also compact, simple, and easy to carry anywhere. This tester is good at its  Ideal design for testing power cables, circuit breakers, sockets, distribution boxes, fuses, etc.


Functions:

  1. H/L/O gear knob function: Fire-Neutral line/Continuity/Battery/Non-contact AC Voltage detection.
  2. Sound and light alarm.
  3. A perfect tool kit for home and electrical industry uses.
  4. Ideal design for testing power cables, circuit breakers, sockets, distribution boxes, fuses, etc.
  5. Long life and low power consumption.
  6. Compact, safe, and easy to carry.

Package Includes:

1 x Non-Contact Type Inductive AC / DC Continuity Voltage Tester

Voltage Testers are electronic devices with an amplified signal that may detect changes in the electric field around AC-energized items. No direct metallic contact with the circuit is required to establish the findings. A non-contact voltage tester is used to indicate if power is off without touching any wires.

Voltage is detected in cables, cords, circuit breakers, light fixtures, switches, outlets, and wires, as well as AC voltage in doorbells, thermostats, low-voltage lighting, and irrigation systems. Both visual and audio signals are included.

Operating Instructions:
  1. Turning ON/OFF: Press and hold the power button for more than 1 second; the buzzer will sound, all of the indicator lights will flash once, and the system will enter the test mode. If it is turned ON, long-press the power switch button to turn it OFF.
  2. High/Low Sensitivity Switch: The default setting is the low sensitivity test mode. Press the ON/OFF button/sensitivity (less than 1 second) to switch between high and low sensitivity. It is in the high-sensitivity test mode when the sensitivity indicator light is ON. It is in the low sensitivity test mode when the sensitivity indicator light is OFF.
  3. Flashlight: press the flashlight button to turn it ON, and press again to turn it OFF
  4. AC Voltage Detection: When you place the probe of the tester near an AC voltage source, the signal indicator light will turn ON, the sensitivity indicator light will turn ON, and the buzzer’s beep will speed up or slow down depending on the signal strength.

• Note:

  1. When you need to test the neutral and live wires that are near each other try to test them separately; if they cannot be separated, identified based on the detected signal intensity. The live wire is the one that has a strong signal, while the neutral wire has a weak signal.
  2. This tester needs a 2 x AAA battery is not included with this pack you have to buy it separately.

Features:

  1. You can use the flashlight function to provide convenience for working in the dark
  2. Easy to use and carry as a portable Pen tester
  3. Contactless operation
  4. IP 65 protection rating
  5. Signal straight indicator

Specification:

  1. High Sensitivity Range: 12V to 1000V AC : sensitivity indicator light is ON, buzzer sound speed up
  2. Low Sensitivity Mode: 48V to 1000V AC : sensitivity indicator light is OFF, buzzer sound slows down
  3. Signal indicator light will turn ON
  4. Sensitivity indicator light will turn ON
  5. Buzzer’s beep will speed up or slow down depending on the signal strength.
  6. Live wire will denote by a strong signal
  7. Neutral wire can be detected by a weak signal
  8. Operating Voltage: 3V DC (2 x AAA Battery not included)
  9. Dimensions (L x D)mm : 150 x 25
  10. Weight: 36gm (without battery)

Package Includes:

1 x Plusivo Non-Contact AC Voltage Detector

1 x Additional Accessories Set

1 x User Manual

If you are looking for the best digital Ammeter, then you are at the right place. This is digital ammeter Indicator Light with Big Digital Tube, It gives you the best user experience for your projects it is lightweight, high quality, and durable. This ammeter comes with 7 segment display on it to show output & build with plastic, small and compact, and highly durable which adds a systematic and classy look to your control dashboard or signal monitoring spot on any device or chassis.

We have added a full range of this digital voltmeter Indicator Light with a variety of colors, sizes, and operating voltages. Explore the category and find the best-suited one for your application

Note: Image may vary from actual product in terms of design, color and brand printed


Features:

  1. Easy for installation
  2. Compact & small in size
  3. This is a digital ammeter
  4. Good environmental Protections
  5. Very low Power consumption
  6. Available in various sizes, colors, and voltage rating

Package Includes:

1 x Green 0-100A 22mm AD16- 22FSA Square Cover LED Ammeter Indicator Light with Transformer

If you are looking for the best digital Ammeter, then you are at the right place. This is digital ammeter Indicator Light with Big Digital Tube, It gives you the best user experience for your projects it is lightweight, high quality, and durable. This ammeter comes with 7 segment display on it to show output & build with plastic, small and compact, and highly durable which adds a systematic and classy look to your control dashboard or signal monitoring spot on any device or chassis.

We have added a full range of this digital voltmeter Indicator Light with a variety of colors, sizes, and operating voltages. Explore the category and find the best-suited one for your application

Note: Image may vary from actual product in terms of design, color and brand printed


Features:

  1. Easy for installation
  2. Compact & small in size
  3. This is a digital ammeter
  4. Good environmental Protections
  5. Very low Power consumption
  6. Available in various sizes, colors, and voltage rating

Package Includes:

1 x White 0-100A 22mm AD16- 22FSA Square Cover LED Ammeter Indicator Light with Transformer

LED Digital Triple  Display Voltmeter Ammeter & hertz meter is a panel-mount device for current, voltage  and frequency monitoring. It gives you the best user experience for your projects it is lightweight, high quality, and durable

Note: Image may vary from actual product in terms of design, color and brand printed


Features:

  1. Easy for installation
  2. Compact & small in size
  3. Good environmental Protections
  4. Very low Power consumption

Package Includes:

1 x Blue AC50-500V 0-100A 0- 100Hz 22mm AD16-22AVHz Square LED Voltage Current Hertz 3 IN 1 Indicator

Are you looking for best digital voltmeter, then your are at right place.

This is digital Hertz Meter Indicator with Big Digital Tube, It gives you best using experience for your projects it is light weight, high quality, durable. This voltmeter comes with 7 segment display on it to show output & build with plastic, small and compact, and extremely durable which adds a systematic and classy look to your control dashboard or signal monitoring spot on any device or chassis.

We have added a full range of this digital Hertz Meter Indicator with a variety of colors, sizes, and operating voltages. Explore the category and find the best-suited one for your application

Note: Image may vary from actual product in terms of design, color and brand printed


Features:

  1. Easy for installation
  2. Compact & small in size
  3. This is digital Hertz Meter Indicator
  4. Good environmental Protections
  5. Very low Power consumption
  6. Available in various sizes, colors, and voltage rating

Packages Includes:

1 x White 20-75Hz 22mm AD16- 22DSHZ Square Cover LED Hertz Meter Indicator Light

Weight
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Battery

AG13

Frequency Range

50 to 500 Hz

Material

ABS

Color

Yellow + Gray

Operating Temperature Range (°C)

-10 to 50

Length (mm)

140

Width (mm)

20

Height (mm)

15

Weight (gm)

25

Model No.

AD16- 22FSA

Measuring Current Range

0-100A

Operating Voltage(V)

AC 220

Body Material

Plastic

Color

Green

Head Diameter (mm)

28

Mounting Hole Diameter (mm)

22

Weight (gm)

35

Model No.

AD16- 22FSA

Measuring Current Range

0-100A

Operating Voltage(V)

220V AC

Body Material

Plastic

Color

White

Head Diameter (mm)

28

Mounting Hole Diameter (mm)

22

Weight (gm)

35

Model No.

AD16-22AVHz

Measuring voltage Range

AC50-500V

Measuring Current Range

0-100A

Measuring Frequency Range

0-100 Hz

Body Material

plastic

Color

RED

Mounting Hole Diameter (mm)

22

Protection Standard

IP65

Shipment Weight (gm)

46

Model No.

AD16- 22DSHZ

Color

White

Frequency(Hz)

20-75Hz

Length (mm)

5

Weight (g)

19g
