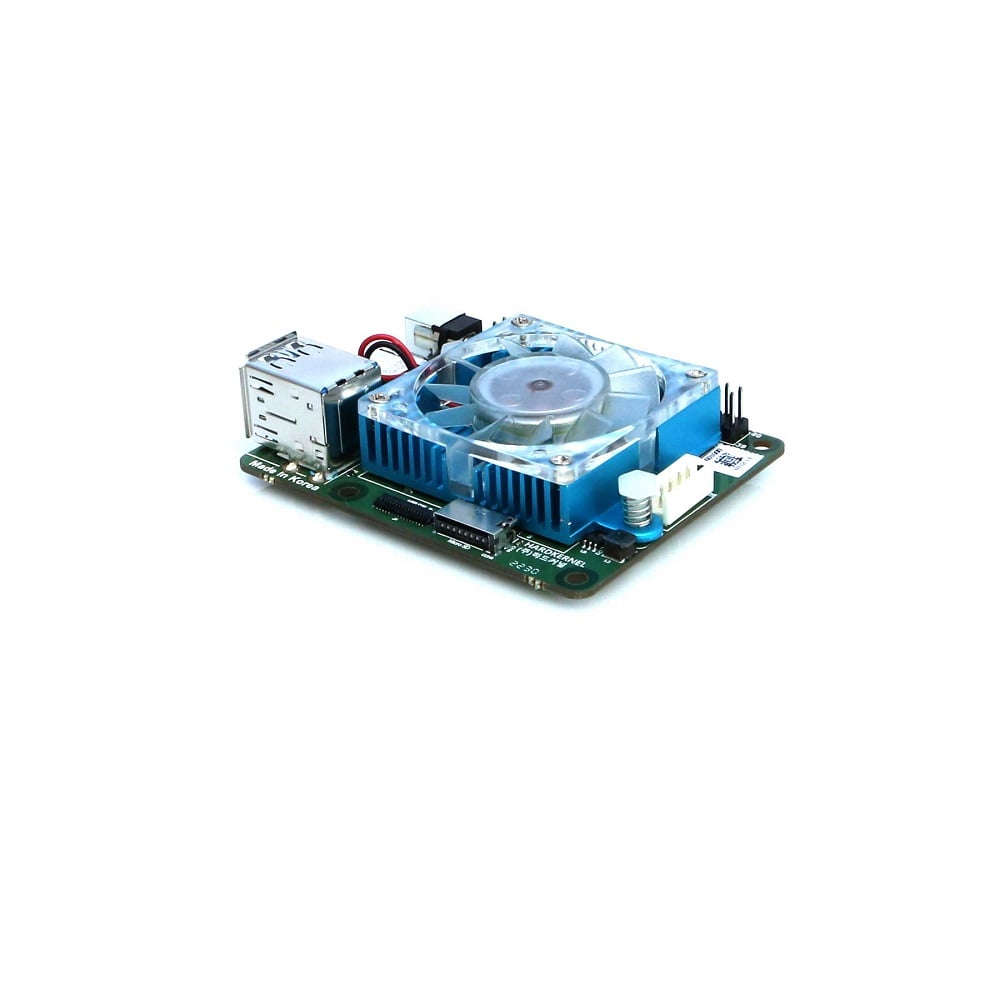

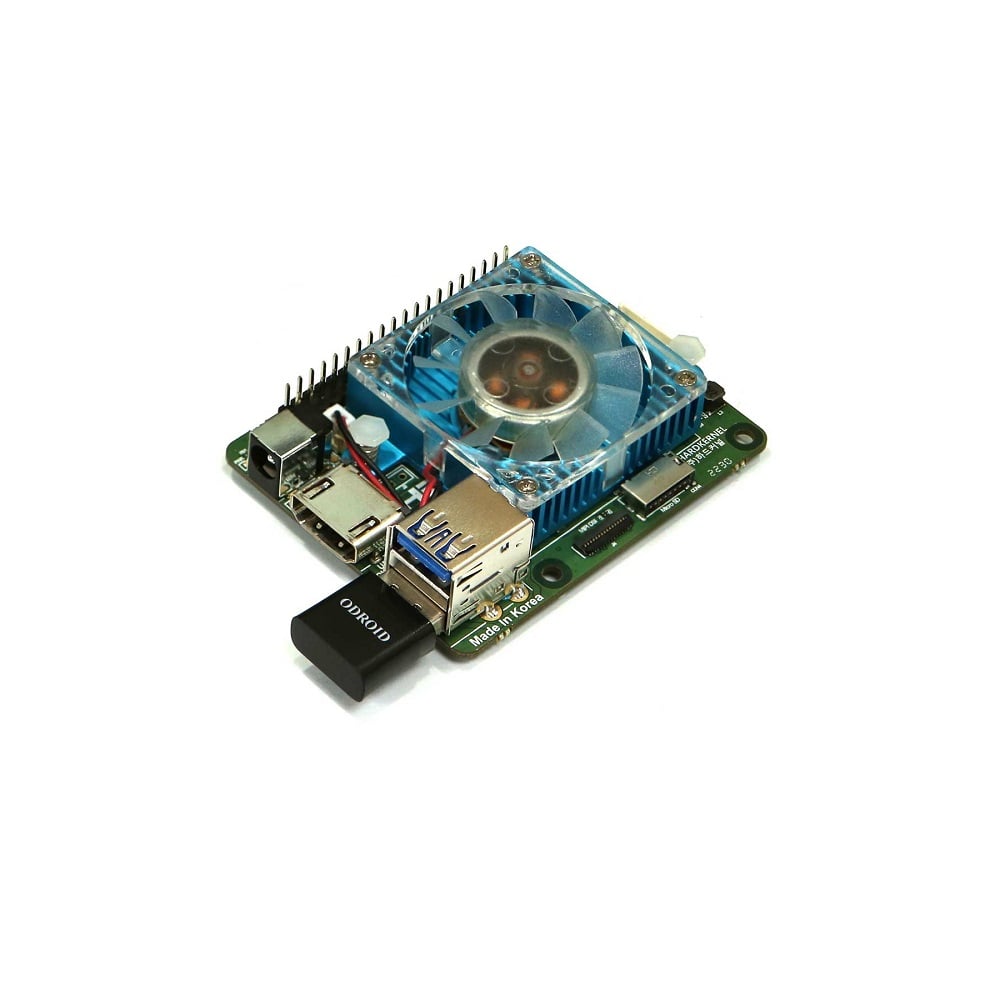

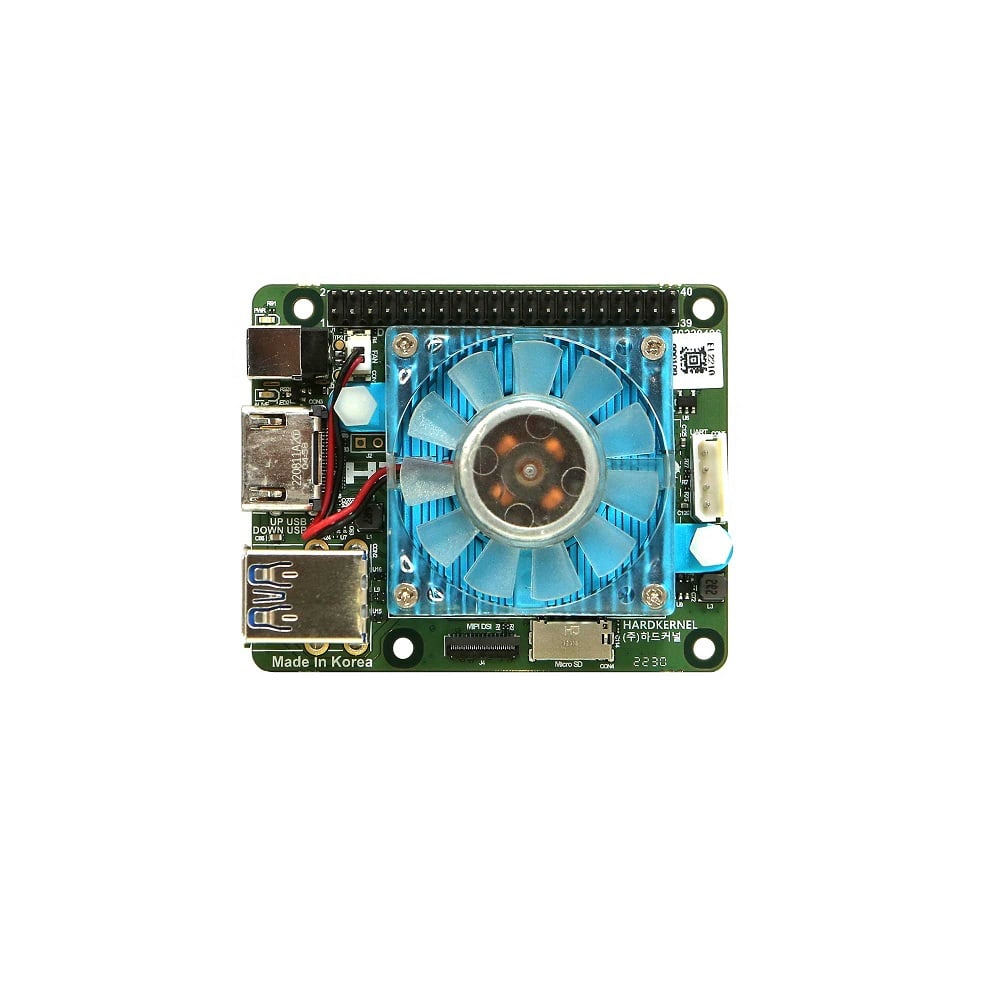

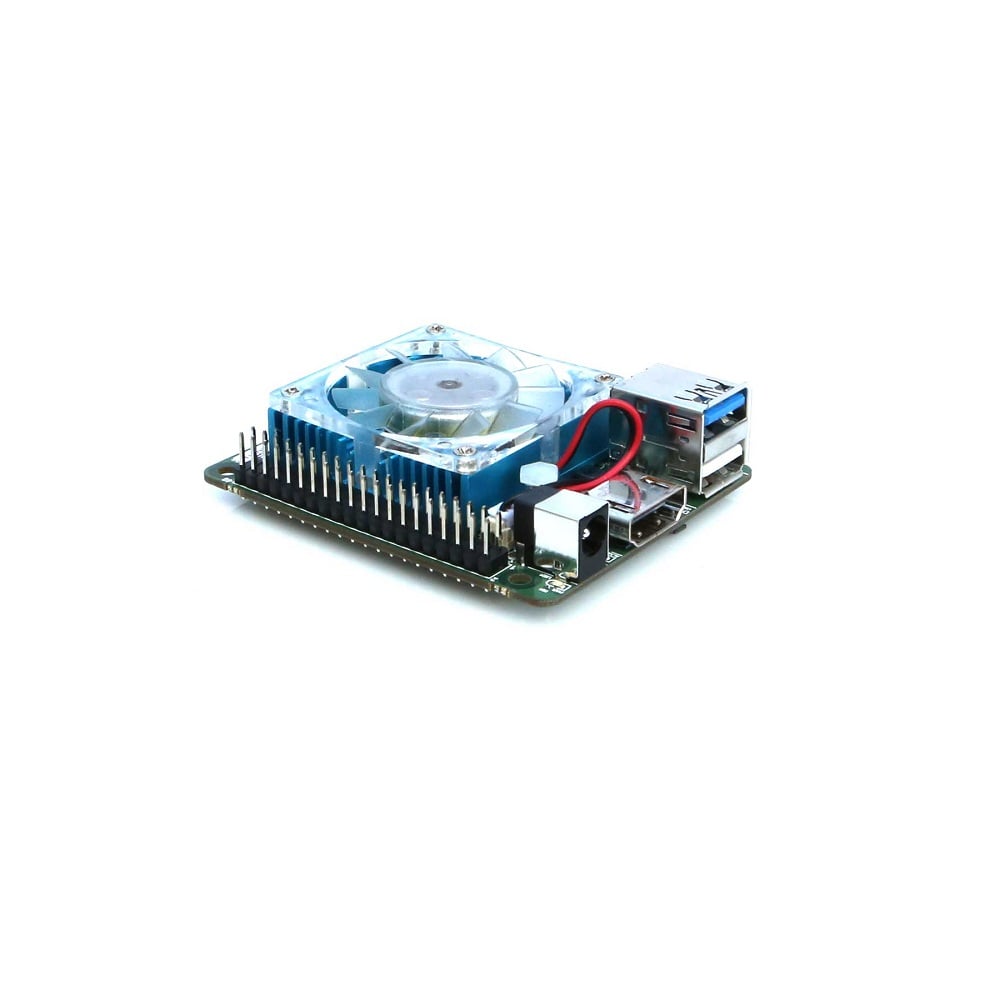

ODROID-N2L with 4GByte RAM

19 People watching this product now!

SKU: rz2437540 Category: Single Board Computer

Description

The low-cost variant of our most popular and powerful ARM SBC ODROID-N2+.

This project was actually initiated at the request of several B2B customers. They were satisfied with the performance and convenience of the highly versatile N2+. However, they wanted to embed a relatively compact, cost-effective, simple, and still high-performance SBC into their system.

Features:

Smaller and neater form factor: 69 x 56mm
Small size allows for mounting inside a variety of small devices
Suitable for various standalone embedded systems which don’t require Ethernet connectivity
Suitable for building robots, drones, arcade consoles, human-machine-interface devices, and many other applications
Faster and lower power consumption LPDDR4 RAM
Lightweight
Low cost

Package Includes:

1 x ODROID-N2L with 4GByte RAM

Additional information

Processor	Amlogic S922X Processor (12nm) Quad-core Cortex-A73(2.2Ghz) and Dual-core Cortex-A53(2Ghz) ARMv8-A architecture with Neon and Crypto extensions Mali-G52 GPU with 6 x Execution Engines (800Mhz)
Power	1 x DC jack : outer (negative) diameter 5.5mm , inner(positive) diameter 2.1mm 7.5V ~ 16V (Recommend range of input) – DC 12V/2A power adapter is recommendedPower consumption: – IDLE : ≃ 1.5W (Performance governor) , 1.3W(Conservative governor) – CPU Stress (Passive Heat-Sink) : ≃ 5.4W (@1908/2208MHz , Stock) , 5.8W (@2016/2400MHz , Overclock) – CPU Stress (Active Cooling-FAN) : ≃ 6.1W (@1908/2208MHz , Stock) , 6.4W (@2016/2400MHz , Overclock) – Power-Off : ≃ 0.2W
Memory	LPDDR4 4GiB or 2GiB with 32-bit bus width Data rate: 3216 MT/s 1.1Volt low power design
Storage	1 x eMMC connector (8G , 16G , 32G , 64G and 128G are available) 1 x microSD slot (DS/HS modes up to UHS-I SDR104)
Networking	Optional WiFi or Ethernet USB adapters
Video	1 x HDMI 2.0 (up to 4K@60Hz with HDR , CEC , EDID) – Although the +5V Power pin is able to supply a minimum of 300mA , according to HDMI 2.0 specification , a sink shall not draw more than 50mA of current from the +5V Power pin.
Audio	1 x HDMI digital output
External I/O	1 x USB 3.0 Host port 1 x USB 2.0 Host port 1 x Debug serial console (UART) 1 x MIPI DSI 4Lane (TBD) 1 x Peripheral Expansion Header (40-pin , 2.54mm pitch) – 2 x DC 5V , 2 x DC 3.3V , 1 x DC 1.8V , 8 x GND – 1 x SPI – 1 x UART – 2 x I2C – 25 x GPIO (Max) – 2 x ADC input (10bit , 1.8V Max) – All of I/O signal level is 3.3 Volt except for ADC input at max 1.8 Volt
Other features	Built with a large passive heatsink System LEDS Indicators: – Red (PWR) – Solid light when DC power is connected – Blue (ALIVE) – Flashing like heartbeat while Kernel is running. Active Cooling Fan Connector (5V 2-pin) – Connector (2-pin , 1.25mm pitch)
Dimensions	Dimensions including Fan heatsink: 69mm x 56mm x 22mm Dimensions including Tall heatsink: 69mm x 56mm x 32mm
Weight (gm)	66g including a Tall heatsink
