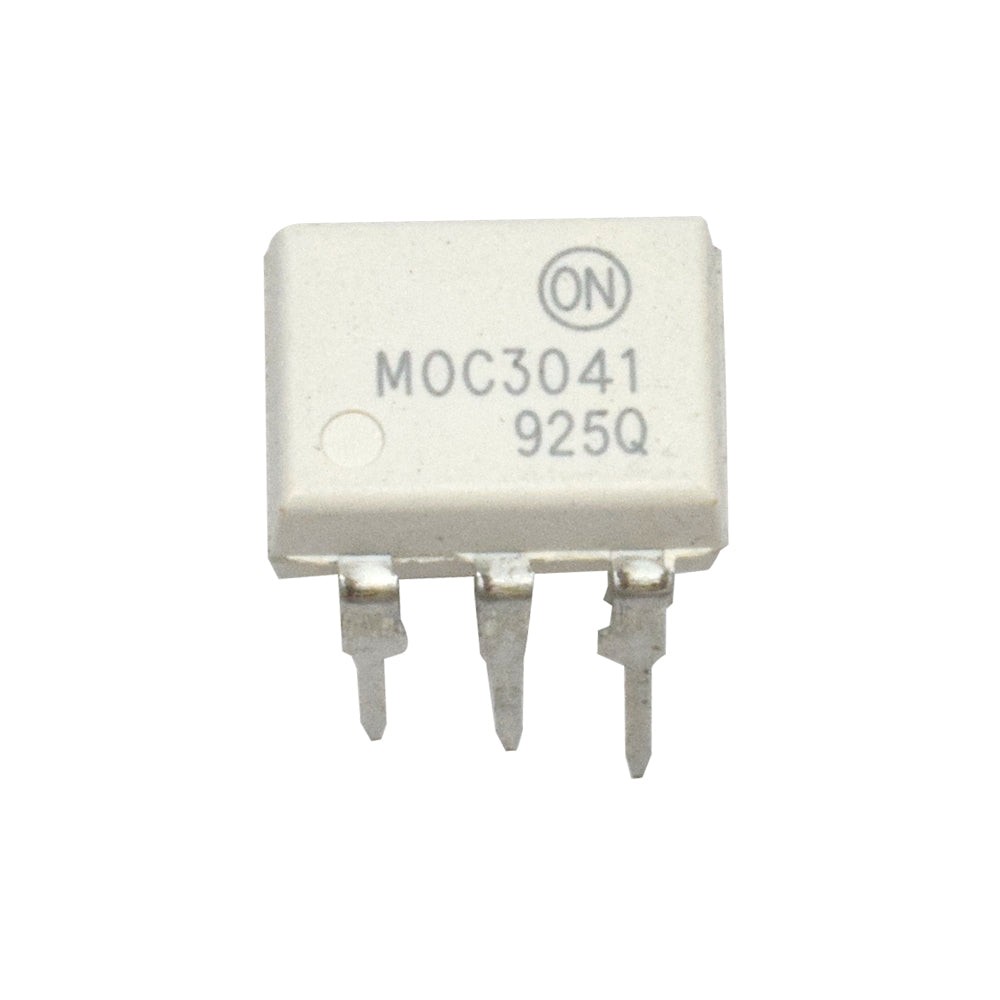

On-Semi MOC3041 Optocoupler IC DIP-6 Package

Original price was: ₹27.68.Current price is: ₹23.52. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%22.34 (Including tax)
11 - 208%21.65 (Including tax)
21 - 4010%21.19 (Including tax)
41 - 10012%20.71 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

14 People watching this product now!
Description

The MOC3041 devices are made up of an AlGaAs infrared emitting diode that is optically coupled to a monolithic silicon detector that serves as a zero voltage crossing bilateral triac driver. They are intended for use with a triac in the interface of logic systems to 115 VAC-powered equipment such as CRTs, solid-state relays, industrial controls, printers, motors, solenoids, and consumer appliances, among other things.

For more information Datasheet

Pinouts

  1. Pin 1: Anode
  2. Pin 2: Cathode
  3. Pin 3: N/C
  4. Pin 4: Main Terminal
  5. Pin 5: NC
  6. Pin 6: Main Terminal

Applications

  • Solenoid controls
  • Lighting controls
  • Static power switches
  • AC motor drives
  • Temperature controls
  • AC motor starters
  • Solid state relays
Specifications
ModelMOC3041
BrandOn-Semi
TypeOptocoupler IC
Total Power Dissipation at 25°C150mW
TRIAC output terminal voltage400V (max)
TRIAC peak output current1A
Pitch2.0mm
Number of pins6
PackageDIP-6
Country of OriginChina
