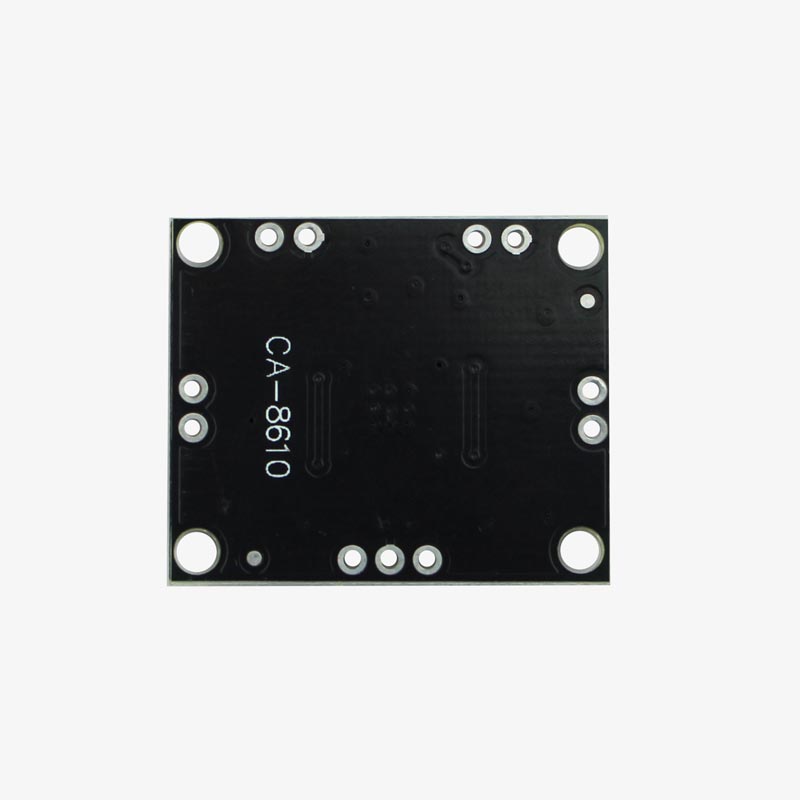

PAM8610 Class-D Audio Amplifier Board

(2 customer reviews)

Original price was: ₹138.42.Current price is: ₹108.56. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%103.14 (Including tax)
11 - 208%99.88 (Including tax)
21 - 4010%97.70 (Including tax)
41 - 10012%95.54 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

20 People watching this product now!
Description

The PAM8610 is a stereo Class-D audio amplifier with DC Volume Control. It offers 15W (per channel) output with low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. It has 32 steps DC volume control with a range of +32dB to -75dB. The PAM8610 supports 7V to 15V supply. It is more efficient than competitors’ ICs or products. It also has an inbuilt mute switch option as a pinout on the board.



PAM8610 pinout:

PAM8610 Class-D Audio Amplifier Board



Specifications:

  1. PAM8610 as main driver IC
  2. Dual-Channel Stereo Output
  3. MAX Wattage: 15W
  4. Input Voltage Range:  7V to 15V power Supply
  5. Volume control resolution: 32 Steps
  6. Volume control range: +32dB to -75dB
  7. Working Mode: Class D (PWM modulation type).
  8. Much higher efficiency in terms of cost and performance than competitors’ ICs
  9. This plate with a switching function, SW short, will turn off the power amplifier.
  10. No External Heat Sink Required

PAM8610 Dimension and footprint:

PAM8610 Class-D Audio Amplifier Board

PAM8610 Applications:

  • Portable Audio Player
  • Mini Speaker Control System
  • Music Systems
  • Radio or TV
  • Power Amplifier


Example Projects on PAM8610:

Detailed Info about PAM8610 Module

Additional Resources:

PAM8610  Datasheet

Package Contains

1x PAM8610 audio module
